Fiori DB 260 - Page 148

148
5
MAINTENANCE
id.:
DB 260 REV. 00 01/07/2015

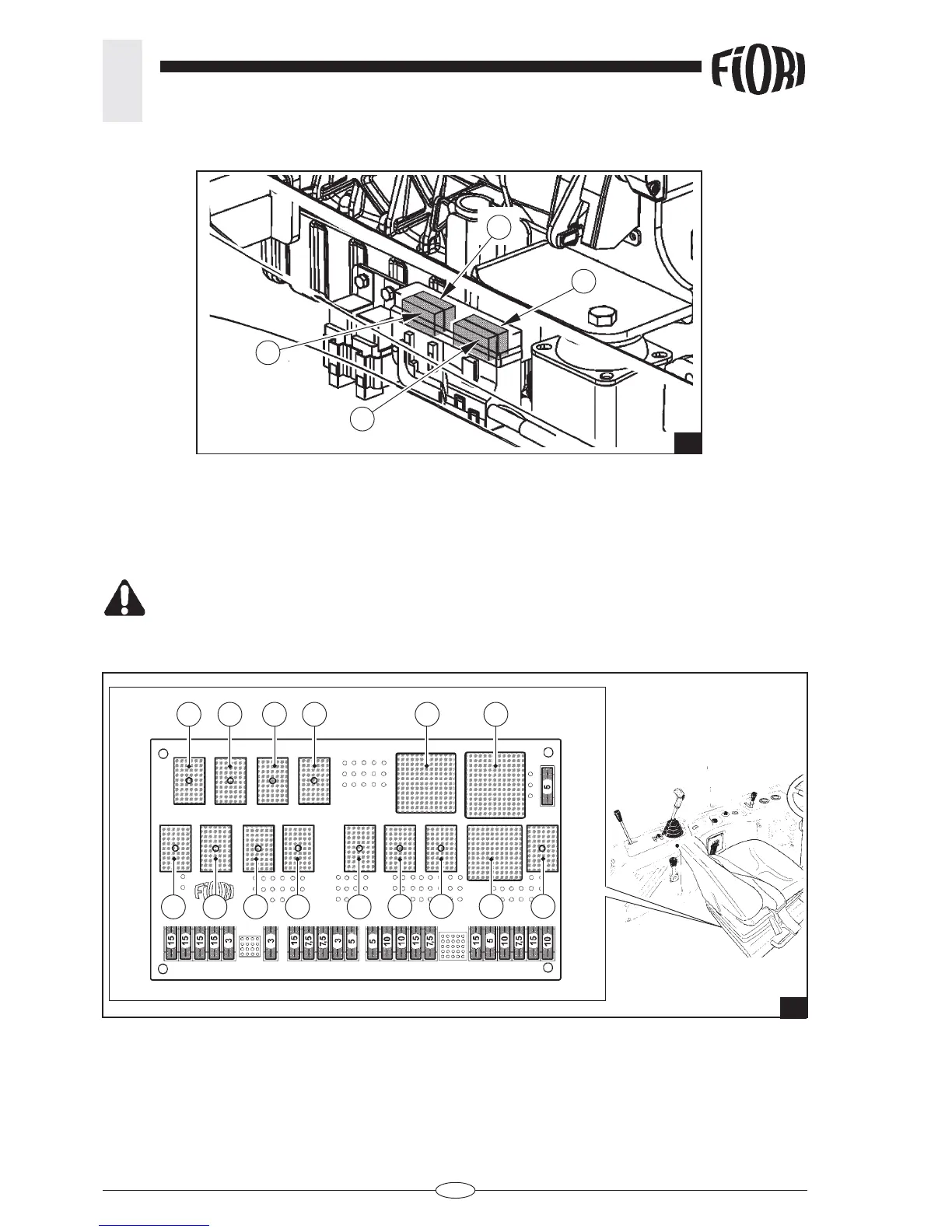

- Driver’s seat relays (fi g. 33)
01 - K101 - Micro-relais de validation abaissement bras et commande tip off.
02 - K102 - Mini-relais de commande pompe à eau.
03 - K103 - Micro-relais de validation avancement avec levier d’accélérateur sur OFF.
04 - K104 - Micro-relais de validation démarrage avec commande au point mort.
05 - K105 - Micro-relais de validation avancement.
06 - K106 - Micro-relais a disposition.
07 - K107 - Micro-relais de coupure moteur.
- Fuses located next to the engine’s PTO (fi g. 32)
26 - 30A - green - power supply for start starter motor relay.
27 - 40A - yellow - power supply for fuse/relay printed circuit.
28 - 50A - red - start switch power supply.
29 - 30A - green - Main engine power supply.
CAUTION: If a fuse blows or a relay burns, fi nd the cause before replacing it with a new one.
Do not operate bypassing the fuse as there is a risk of short- circuit.
DANGER:
32
27
26
29
28
DB 260 REV. 02 20/12/2016
33
12
8
34
7
6
5
12 1315 111410
9
