Troubleshoot Mode
The secondary phone line may be tested by pressing the E key for touchtone dialing or the F key for rotary dialing
and then following the same procedure used for the primary phone line. A handset may be temporarily connected
across transformer T1 of the 411UD as indicated in Figure 3-2. The handset, when connected across T1, may be used
only as an amplifier/speaker or telephone with the keypad used for number dialing.
TB2
TB1
R41
U8
U10
U11
J2
PH1
PH2
J1
J4

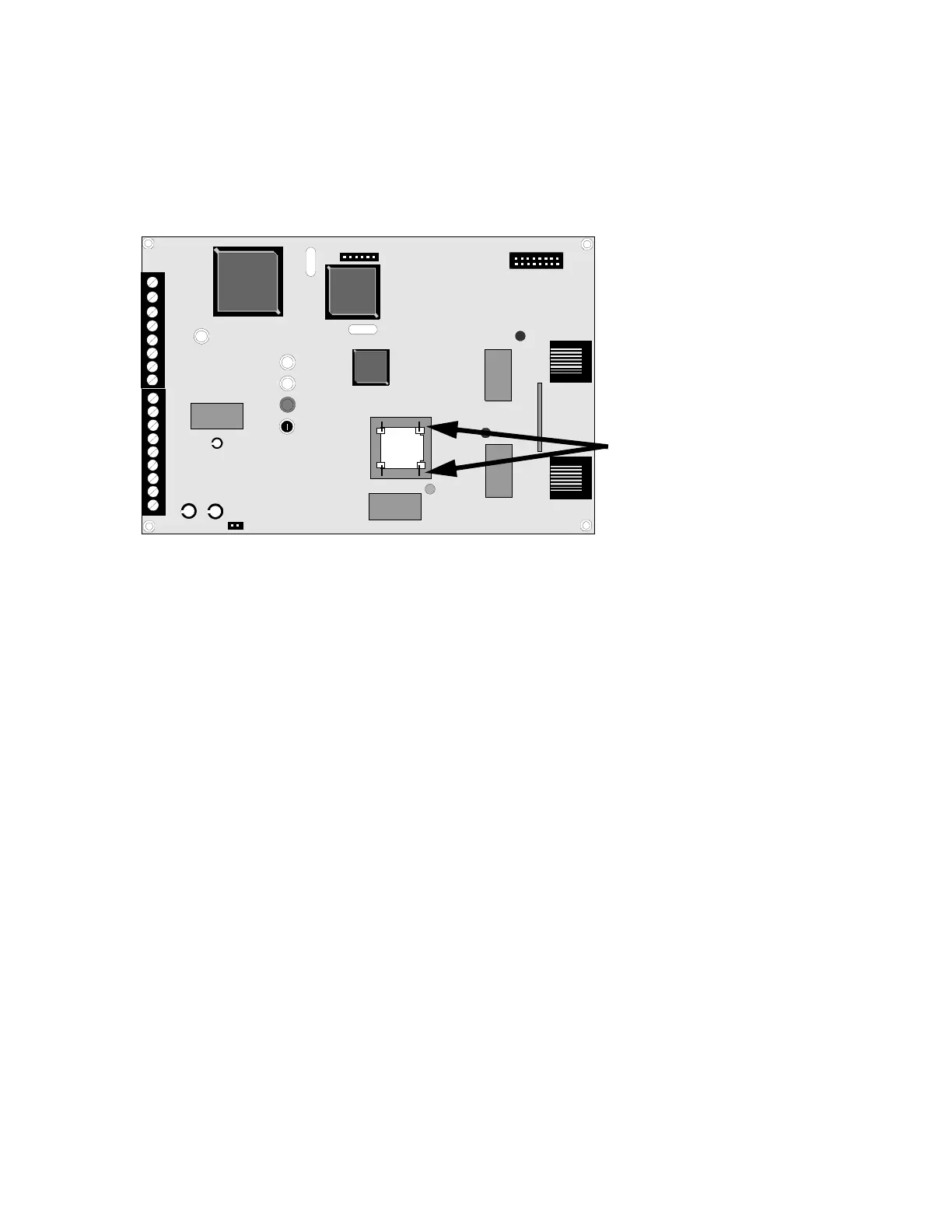

FIGURE 3-2:Handset/Speaker Connection
Both Primary and Secondary Lines
