Canadian Applications
64
411UD Document #50759 Rev. E 12/09/2008 P/N 50759:E
Appendix F Canadian Applications

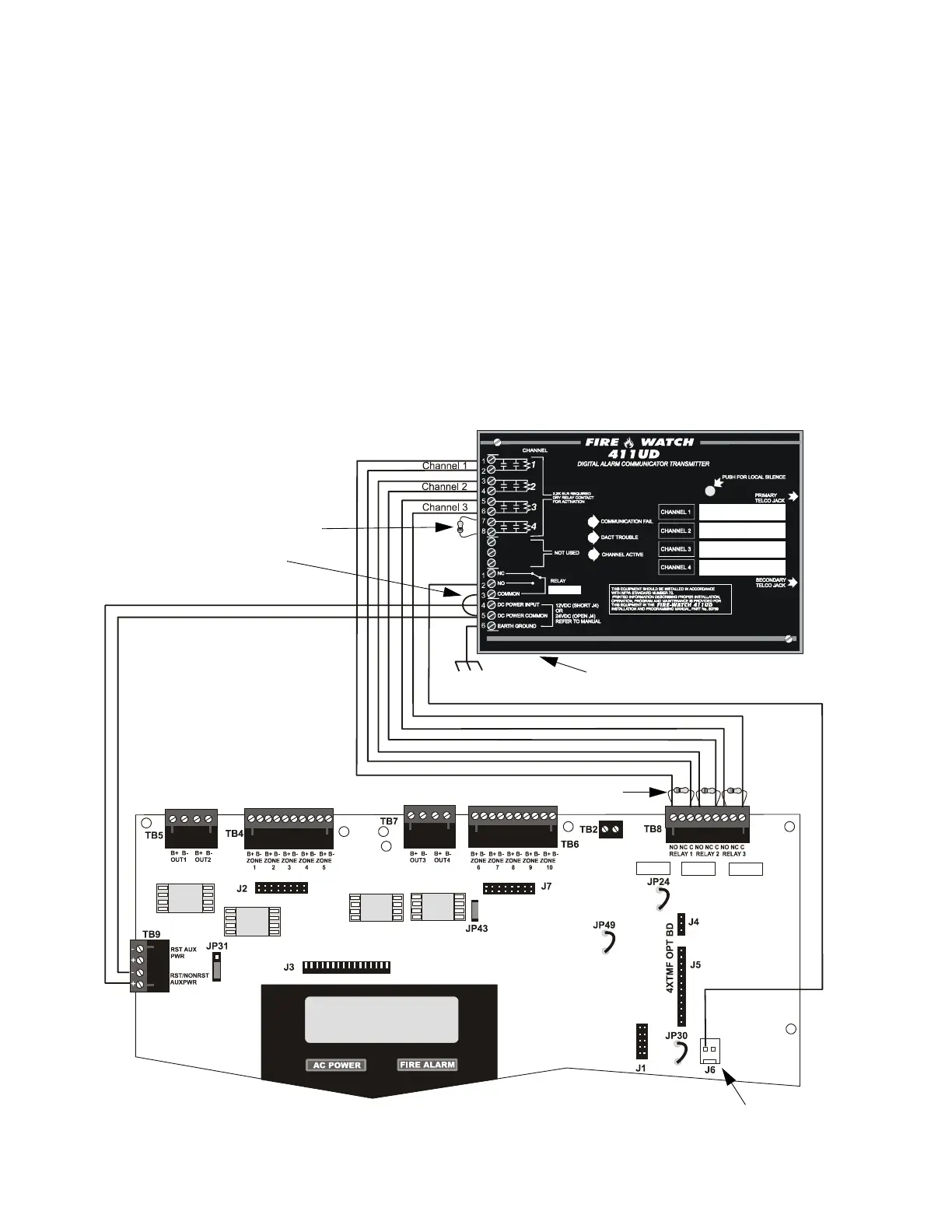

This section illustrates the connection of the 411UD Digital Alarm Communicator/Transmitter (DACT) to an FACP
for Canadian Applications. The following conditions must be adhered to in order to comply with Canadian require-
ments.
1. Only one FACP can be connected to the 411UD DACT.
2. Phone lines must exit the building in separate directions.
3. The 411UD DACT relay must be enabled [refer to “Output Relay Enable (87)” on page 36] and must be
programmed to activate on DACT trouble [refer to “Output Relay Function Selections (88)” on page 37].
4. The Auxiliary Trouble Input wiring from the 411UD DACT must be in conduit and in the same room as the
FACP and DACT.
J4 (under cover) jumper not installed
jumper -VDC to relay terminal
+24 VDC nonresettable power
-24 VDC nonresettable power
N.O relay contact (DACT Trouble) from 411
FACP Supervision Relay
FACP Trouble Relay
FACP Alarm Relay
411UD
FACP
Auxiliary Trouble Input
(nonsupervised, power-limited)
2.2K ELRs P/N 27070
Channel 4 (2.2K ELR)
To Next Page
