BOILER TECHNICAL SPECIFICATION
9
FIREBIRD ‘S’ RANGE

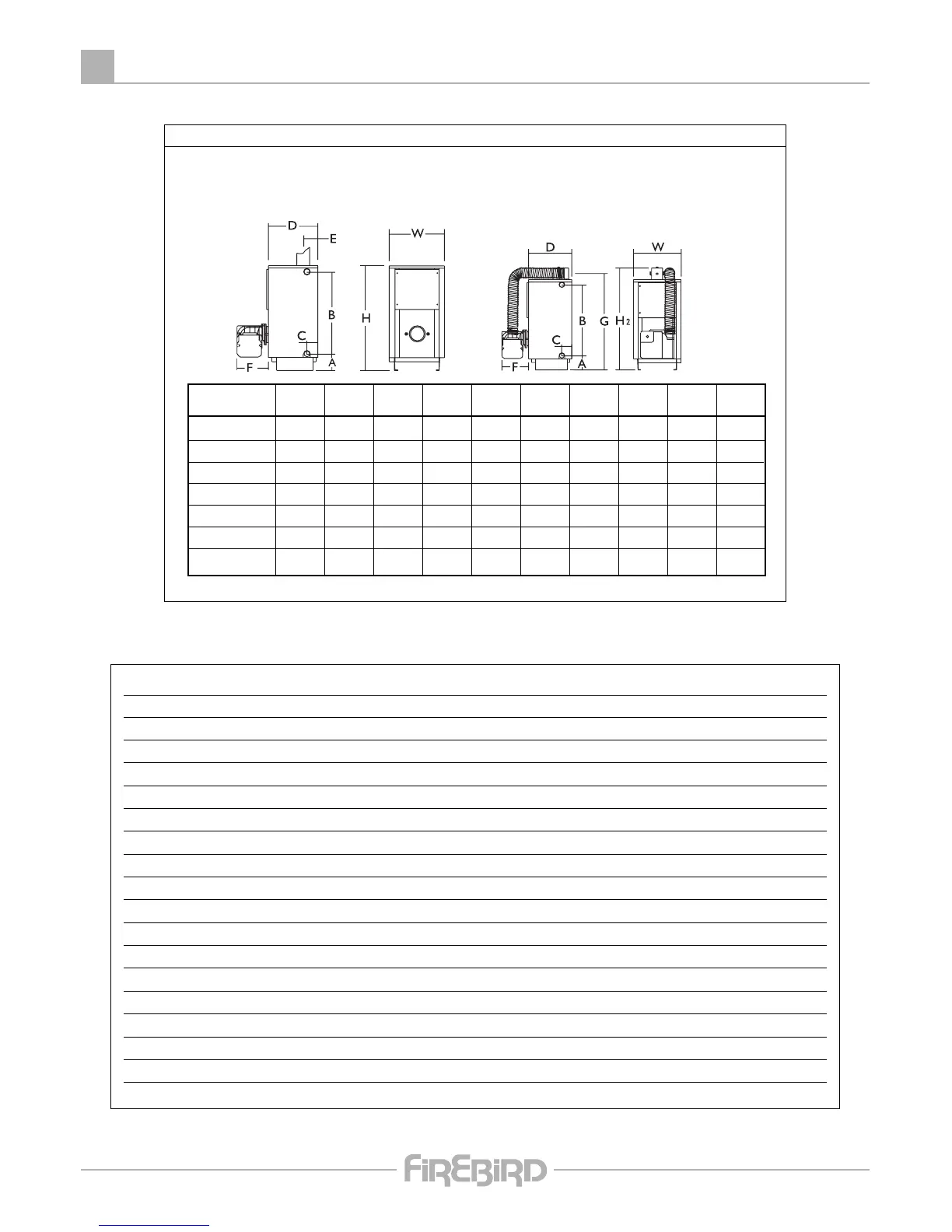

Firebird S. Boiler House Dimensions
2-C Firebird S. Boiler Specifications
OUTPUT RANGE
50-70 70-90 90-120 120-150 150-200 200-250 250-310
PRESSURE JET OIL BURNER RIELLO - SEE SECTION 2D BURNER SETTINGS (ECOFLAM & BENTONE STERLING OPTIONS AVAILABLE)
FLOW & RETURN CONNECTIONS 4x1”BSP 4x1”BSP 4x1”BSP 4x1
1
/2”BSP 4x1
1
/2”BSP 4x2”BSP 4x2”BSP
DRAIN OFF CONNECTION
1
/2 BSP SOCKET & PLUG FITTED ON ALL MODELS
FLUE OPTIONS
A. CONVENTIONAL FLUE 4” 4” 4”-5” 6” 6” 7” 7”
B. BALANCED FLUE 5”O.D. 5”O.D. 5”O.D. 6”O.D. 6”O.D. 8”O.D. 8”O.D.
CONVENTIONAL FLUE DRAUGHT MINIMUM: 0.04 INCHES WATER GAUGE. MAXIMUM 0.15 INCHES W.G.
MAXIMUM OPERATING PRESSURE 3 BAR 3 BAR 3 BAR 3 BAR 3 BAR 3 BAR 3 BAR
TEST PRESSURE 4.5 BAR
WEIGHT “in Kg”
BOILER. BOILERHOUSE 80 82 95 131 150 170 230
BURNER 13 13 13 15 15 15 15
WHITE CASED BOILER & BURNER 105 107 118 161 180 202 266
WATER CONTENT IN LITRES 19 19 24 28 37 53 65
TEMPERATURE CONTROL CONTROL THERMOSTAT: ADJUSTABLE BETWEEN 60°C - 80°C.
LIMIT THERMOSTAT: MANUAL RESET LIMIT THERMOSTAT FACTORY SET AT 110°C.
ELECTRICAL SUPPLY 230v. AC 50Hz 5 AMP FUSE
FUEL
USE C2 KEROSENE IN BALANCED FLUE INSTALLATIONS ONLY. Class D GAS OIL (CF Option).
MODEL H W D A B C E F G H2
50/70 690 395 355 60 590 80 135 200 740 785
70/90 690 390 355 60 590 80 135 200 740 785
90/120 690 450 355 60 590 80 135 200 740 785
120/150 855 460 415 110 640 80 145 280 935 955
150/200 860 470 495 120 640 80 145 280 935 955
200/250 860 520 545 115 675 75 160 280 1110 1210
250/310 920 575 660 135 705 75 170 280 1170 1270
CONVENTIONAL.
ROOM SEALED (SNORKEL)
Building Reg. & BS Require a
base tray for this design of unit.
Firebird S. Boiler House Model
