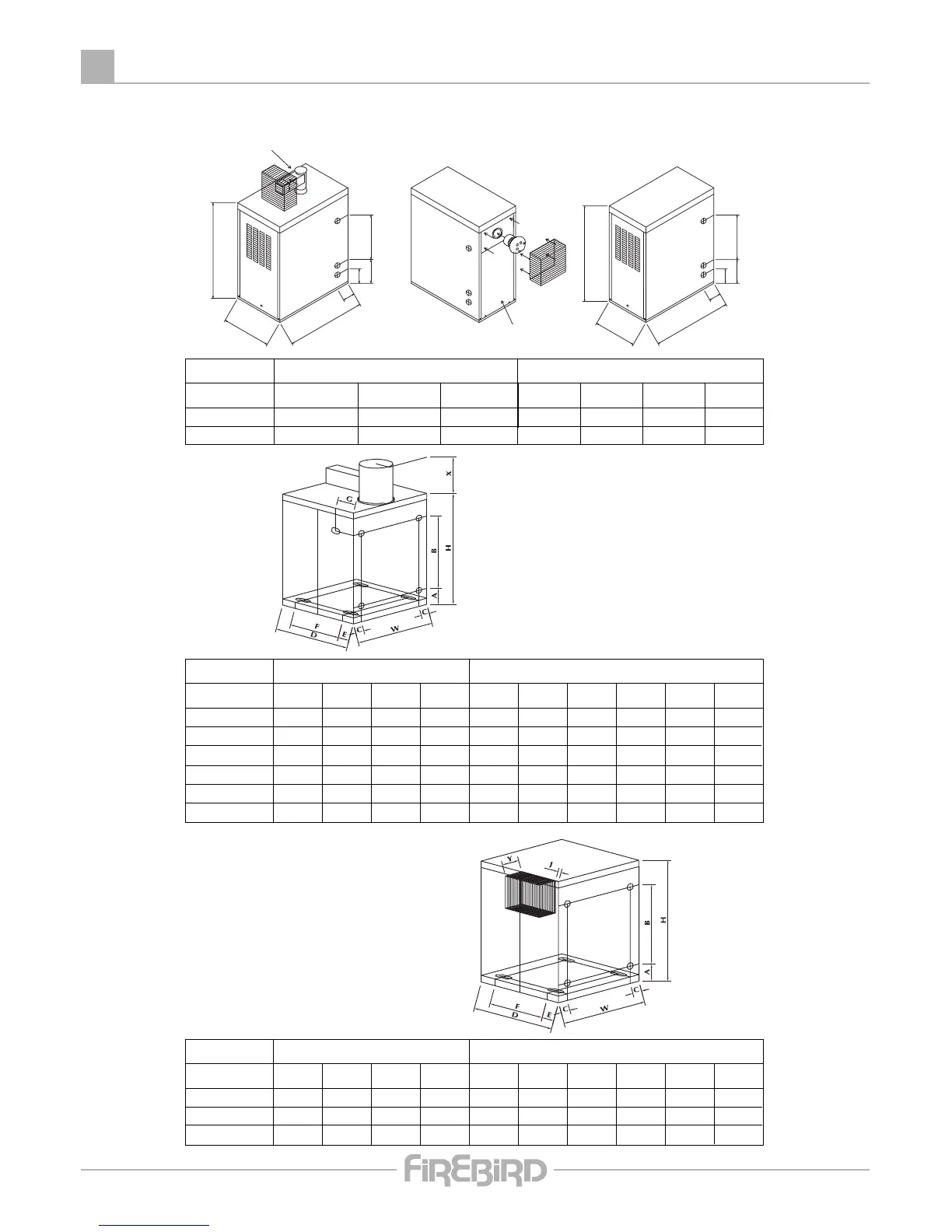

BOILER TECHNICAL SPECIFICATION
10
FIREBIRD ‘S’ RANGE
MODEL D W H X A B C E F G
70/90 625 655 945 310 170 575 120 100 420 175
90/120 625 710 945 340 170 575 120 100 420 175
120/150 735 720 1010 340 170 640 80 180 475 85
150/200 860 895 1025 340 170 640 90 135 590 85
200/250 860 895 1025 350 160 655 90 100 630 105
250/310 960 950 1125 350 230 700 90 100 730 100
Heat Pac
Outline Dimensions Plumbing Access Point Dimensions
MODEL D W H Y A B C E F J
70/90 S 625 655 945 130 170 575 120 100 420 35
90/120 S 625 710 945 130 170 575 120 100 420 35
120/150 S 735 720 1010 340 170 640 80 180 475 85
Heat Pac-S
Outline Dimensions Plumbing Access Point Dimensions
HEAT PAC ‘S’
(Northern Ireland Only)
Turret Flue
D.
H.
W.
C.
D.
W
.
C.
E.
A.
B.
H.
E.
B.
A.
Removable lid to access
plumbing connections
HEAT PAC
MODEL D W H A B C E
50-70-90 410 760 925 140 230 115 480
90/120 470 760 925 140 230 115 480
Heat Pac
Outline Dimensions Plumbing Access Point Dimensions
SLIMLINE HEAT PAC
Heat Pac Diagrams & Specifications
