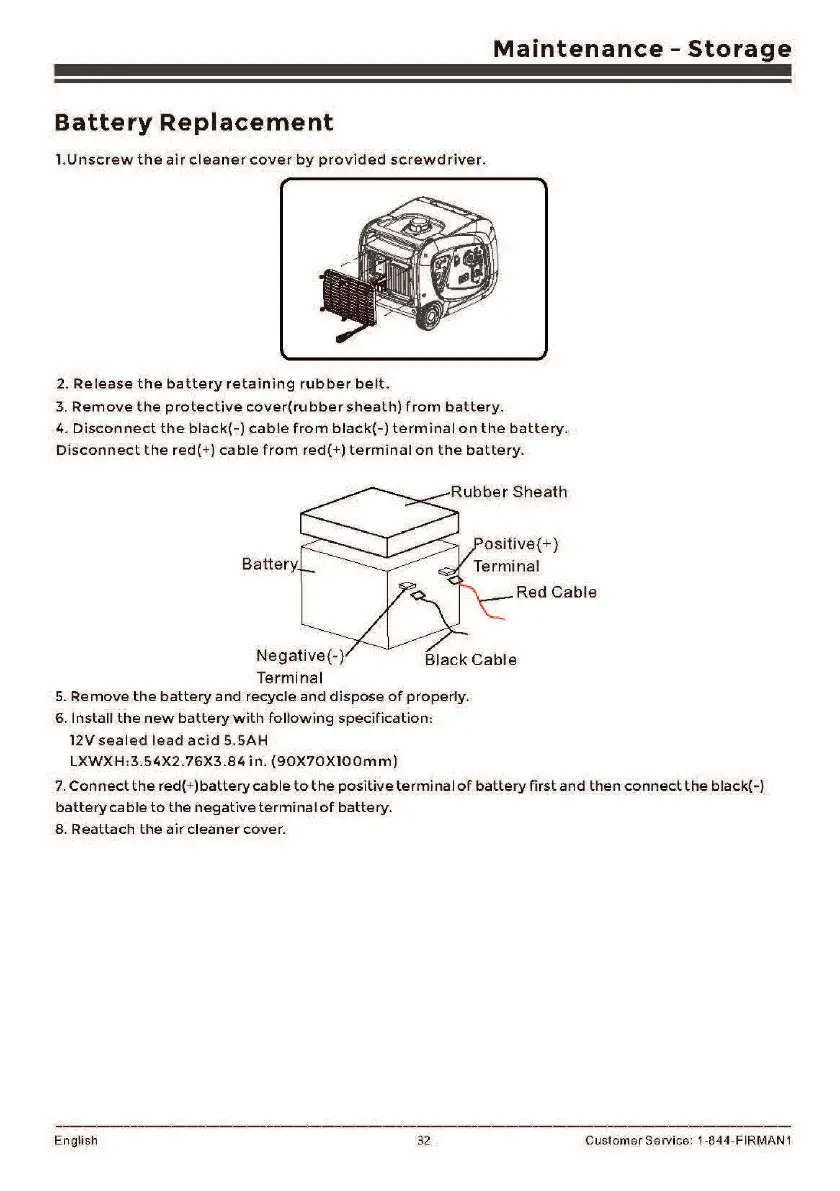

Maintenance - Storage
Battery Replacement
I.Unscrew the air cleaner cover by provided screwdr i ver .
2. Release the battery retaining rubber belt.
3. Remove the protective cover(rubbersheath) from battery.
4. Disconnect the black(-) cable from black(-) terminal on the battery.
Disconnect the red( +) cable from red( +) terminal on the battery.
Battery
Red Cable
Terminal
5. Remove the battery and recycle and dispose of proper ly.
6. Install the new battery with following specification,
12V sealed lead acid 5.SAH
LXWXH:3.54X2.76X3.84 in . (90X70X100mm)
7. Connect the red(+ )batterycable to the positive terminal of battery first and then connect the black(-)
battery cable to the negative terminal of battery.
8. Reattach the air cleaner cover.
