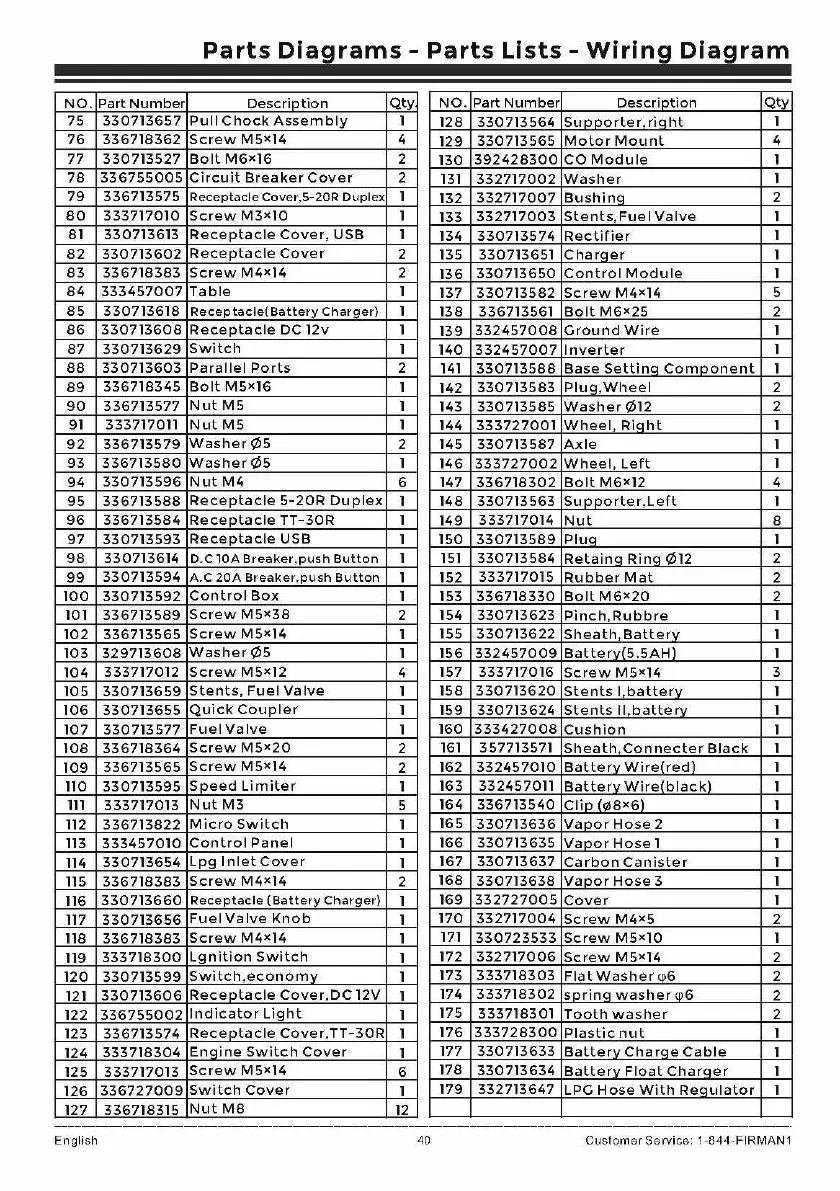

Firman WH03342 - WH03342_Manual_English _Page_42

Parts Diagrams - Parts Lists - Wiring Diagram
NO. Part Number
Description Qty
NO. Part Number Descriotion Qty
75 330713657
Pull Chock Assembly l
128 330713564
Suooorter,riqht l
76 336718362 Screw Msx14 4
129
330713565 Motor Mount 4
77 330713527
Bolt M6xl6
2
130
392428300 CO Module l
78 336755005 Circuit Breaker Cover 2
131 332717002 Washer l
79 336713575
Receptacle Cover,S-20R Duplex
l
132 332717007
Bushinq
2
80 333717010 Screw M3Xl0 l
133
332717003 Sten ts, Fue I Valve l
81 330713613
Receptacle Cover, USB
l
134
330713574
Rectifier
l
82 330713602
Receptacle Cover
2 135 330713651 Charaer l
83 336718383
Screw M4xl4
2
136
330713650 Control Module l
84 333457007 Table l
137 330713582 Screw M4xl4 5
85 330713618
Receptacle( Battery Charger)
l
138 336713561
Bolt M6x2s
2
86 330713608 Receptacle DC 12v l
139
332457008 Ground Wire l
87 330713629 Switch l
140 332457007 Inverter
l
88 330713603 Parallel Ports 2
141 330713588
Base Settinq Component
l
89
336718345 Bolt MSxl6
l
142
330713583 Plug.Wheel 2
90 336713577
Nut MS
l 143 330713585 Washer¢12 2
91 333717011 Nut MS l
144 333727001 Wheel, Ria ht l
92 336713579
Washer¢5
2 145 330713587 Axle l
93 336713580
Washer¢5
l
146 333727002
Wheel, Left
l
94
330713596 Nut M4
6 147 336718302
Bolt M6Xl2
4
95 336713588
Receptacle 5-20R Duplex
l 148 330713563 Suooorter,Left l
96 336713584 Receptacle TT-30R l
149
333717014
Nut 8
97 330713593
Receptacle USB
l 150 330713589 Pluq l
98 330713614 D.C lOA Breaker.push Button l 151 330713584 Retaina Rina ¢12 2
99
330713594 A.C 20A Breaker.push Button
l 152
333717015
Rubber Mat 2
100 330713592
Control Box
l
153 336718330
Bolt M6x20
2
101 336713589
Screw MSx38
2 154 330713623
Pinch,Rubbre
l
102 336713565
Screw Msx14
l
155 330713622
Sheath.Battery l
103 329713608
Washer¢5
l 156 332457009 Batterv(S.SAHl l
104 333717012
Screw Msx12
4 157 333717016 Screw Msx14 3
105 330713659
Stents, Fuel Valve
l
158 330713620
Stents l,batterv l
106 330713655
Quick Coupler
l 159
330713624 Stents 11,batterv
l
107 330713577
Fuel Valve
l
160 333427008
Cushion l
108 336718364
Screw Msx20
2
161 357713571 Sheath,Connecter Black
l
109
336713565
Screw Msx14
2
162 332457010 Batterv Wire(redl l
110 330713595
Speed Limiter
l
163 332457011 Batterv Wire(blackl
l
lll 333717013
Nut M3
5
164 336713540 Clio (¢8X61
l
112 336713822 Micro Switch l
165
330713636
Vapor Hose 2
l
113 333457010
Control Panel
l
166 330713635
Vapor Hose l l
114
330713654
Lpg Inlet Cover
l
167 330713637
Carbon Canister l
115 336718383
Screw M4xl4
2
168
330713638
Vaoor Hose 3
l
116
330713660
Receptacle ( Battery Charger)
l
169 332727005
Cover l
117 330713656
Fuel Valve Knob
l
170
332717004
Screw M4X5 2
118 336718383
Screw M4xl4
l
171
330723533 Screw MSxlQ l
119
333718300
Lgnition Switch
l
172 332717006
Screw Msx14 2
120 330713599 Switch.economy l
173 333718303
Flat Washer co6
2
121
330713606
Receptacle Cover.DC 12V
l
174 333718302 sprinq washer ep6
2
122 336755002
Indicator Light
l
175
333718301
Tooth washer 2
123 336713574
Receptacle Cover,TT-30R
l
176 333728300 Plastic nut l
124
333718304
Enqine Switch Cover
l
177 330713633
Batterv Charae Cable
l
125 333717013
Screw Msx14
6
178
330713634
Batterv Float Charaer l
126
336727009
Switch Cover
l
179 332713647
LPG Hose With Requlator
l
127 336718315
Nut MS
12
