FISCHER 18092 - Connecting Profile Guides

34
The following parts are required for this
assembly step:

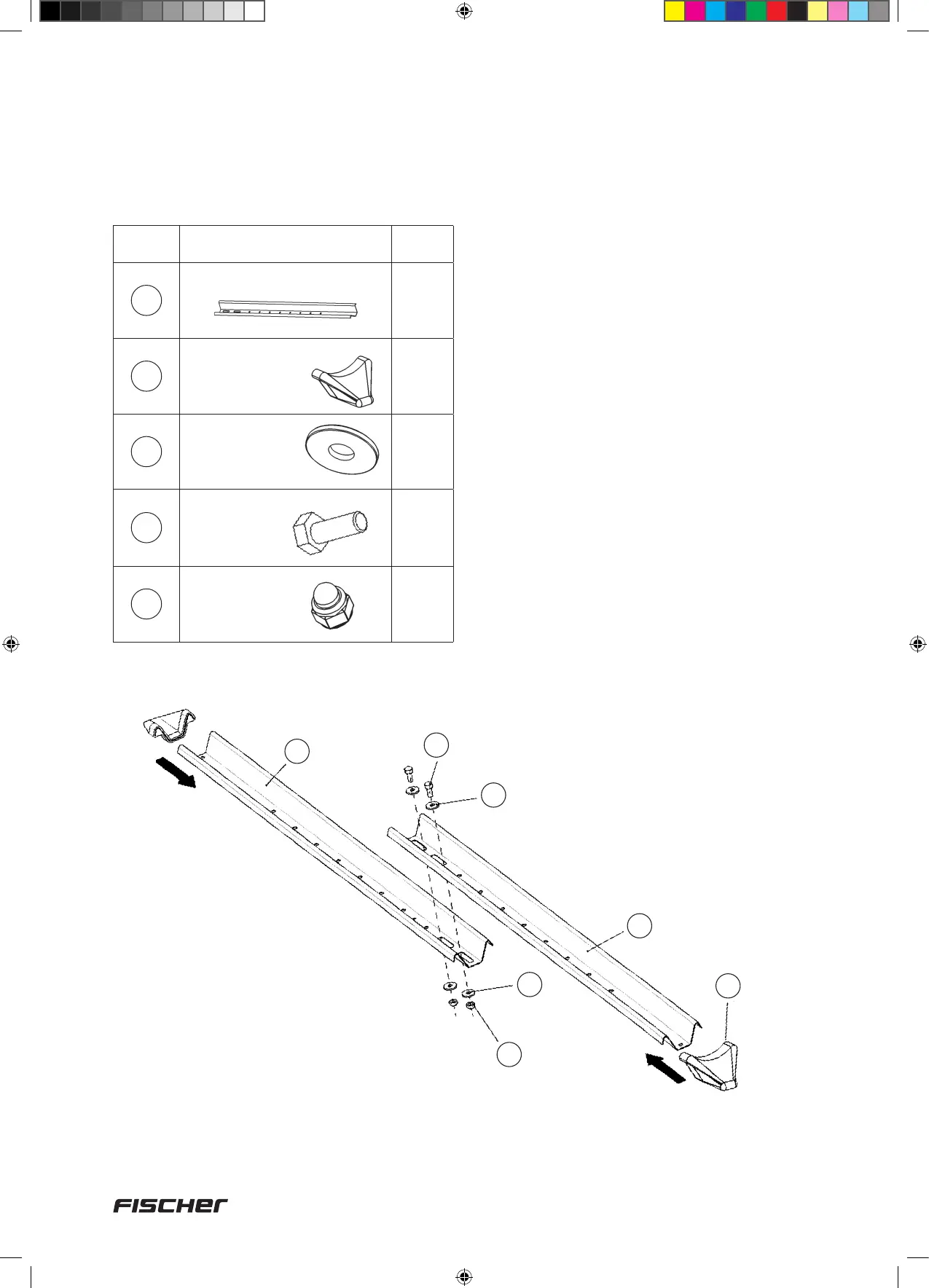

Step 8
Connecting the profile guides (5)
Parts No. Image Quantity
5
Bike prole guide 750 mm
4
6
Protective cap for bike
prole guide
8
8
Washer,
6.5 mm, large
8
9
Screw
M6 × 16 mm
8
13
Cap nut M6
8
1. Place 2 profile guides (5) together in the
middle.
2. Insert screw (9) first through the washer (8)
then through the hole on the inside of the
profile guide.
3. Attach washer (8) to the outside and screw
on cap nut (13).
4. Place protective caps (6) on both ends.
5
9
8
5
6
8
13
