FISCHER 18092 - Assembling Profile Guides on Carrying Unit

35
The following parts are required for this
assembly step:
The width of the carrying unit is adjusted
properly and the carrying unit is inserted
through the guide rails (3+4).
Current position:
Carrying unit leaning on side of vehicle.
1. Hold the profile guide (5) to the top of the
bike carrying bracket.
2. Insert screw (10) first through the washer
(8), then from above through the hole on the
bike carrying bracket.
3. Attach the washer (7) to the bottom and
screw on cap nut (13).

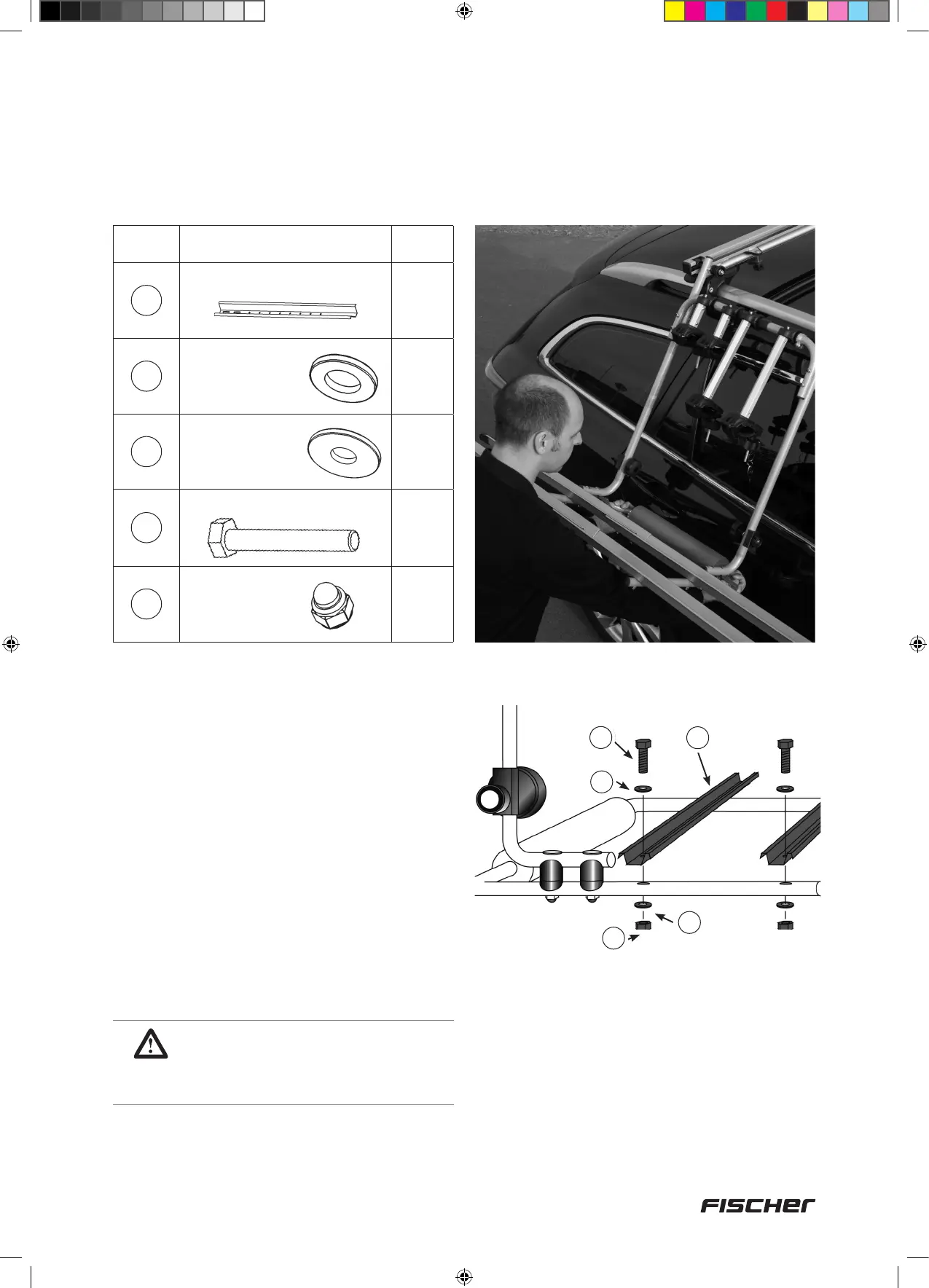

Step 9
Assembling the profile guides (5) on the carrying unit
NOTE:
Please note that the overhang of
the prole guide is the same on the
left and right.
13
7
510
8
Parts No. Image Quantity
5
Bike prole guide 750 mm
2
7
Washer,
6.5 mm, small
4
8
Washer,
6.5 mm, large
4
10
Screw M6 × 35 mm
4
13
Cap nut M6
4
5
10
8
13
7
