WinFTM File Structure
5 WinFTM File Structure
To ensure correct measurements, a set of specific files needs to be set up. The process flow for set-
ting up the files needed for measurements, is the same on all FISCHERSCOPE X-RAY instruments:

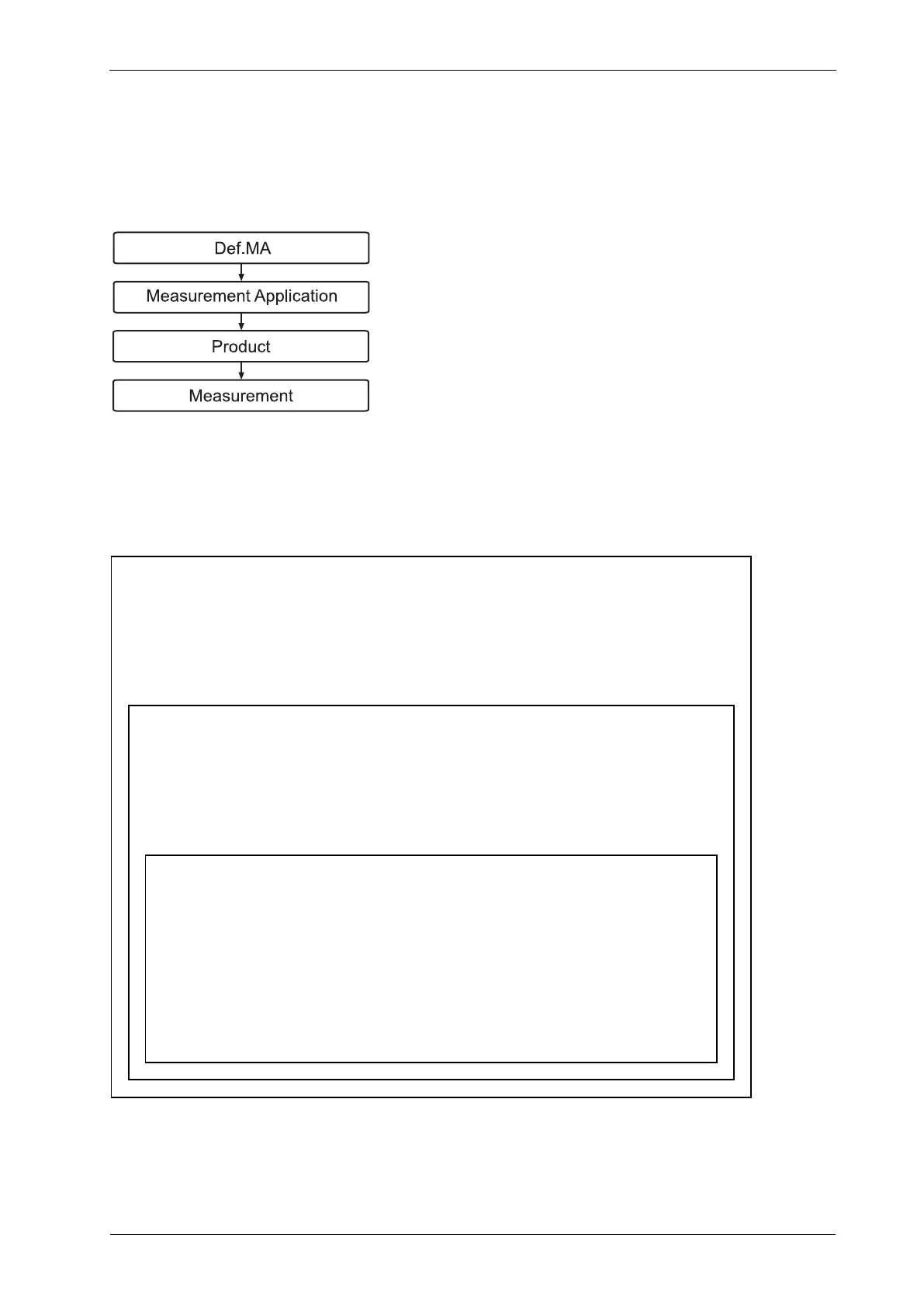

Figure 5.1: Process flow for preparing measurements
The essential content of the files product, measurement application and Def.MA and their relations
among each other is shown in the following figure:
Figure 5.2: Content of the files Def.MA, measurement application and product
Def.MA: Definition of the measurement set-
tings of the application
Product
 Measurement results and their presentation
 Image of the product
 Measurement time and number of measurements
 Export masks
Measurement Application
 Calibration data (Calibration standard set)
 Measurement time during calibration
 Number of measurements during calibration
 Anode current, aperture
Def.MA
 Measurement mode
 Type and order of the coatings
 Tube voltage
 Type and composition of the calibration standards
 Treatment of interfering spectra
 Special evaluation methods
