FISCHERSCOPE
®
X-RAY 39
User Interface of the WinFTM Software
6.2.4 Stops of the XY(Z) Measuring Stage
When at instruments equipped with motor-driven measuring stage the stage is travelled to its limit,
the X/Y or Z limits LED on the control panel lights. In addition, an indicator in the video image
appears, see the following table:
6.3 Statistics Field
The statistical results of the last block are displayed in this field (see Fig. 6.1 on Page 35). A block
is a test series. The test series has a first and a last value. The last value marks the end of the block.
An additional measurement value belongs to the next test series.
The following features of a block are displayed in the statistics field: Number of the block, Mean
value, Standard deviation, Coefficient of variation, Number of measurements, Order no. and Op-
erator.
6.4 Measurement Value Field
This field either displays the last measurement value or a list of all measurement values acquired
with the current product.
You can choose between three different display modes:
 Large number presentation
 List presentation
 SPC chart presentation (Statistical Process Control Chart)

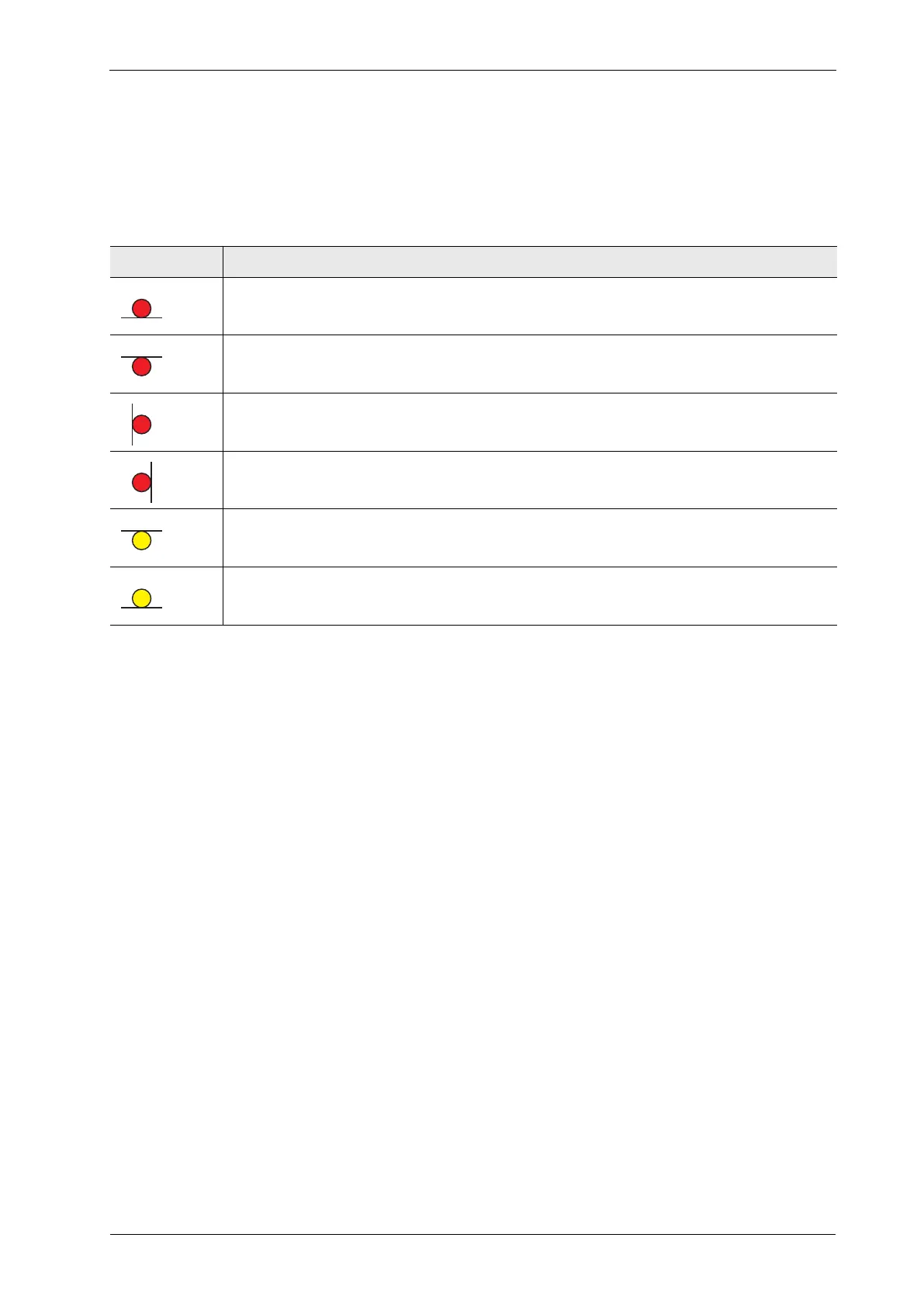

Indicator Explanation
The XY measuring stage is travelled to its front stop.
The XY measuring stage is travelled to its back stop.
The XY measuring stage is travelled to its left stop.
The XY measuring stage is travelled to its right stop.
The detector unit is travelled to its upper stop.
The detector unit is travelled to its lower stop.
