T
ype 2500
30
Figure

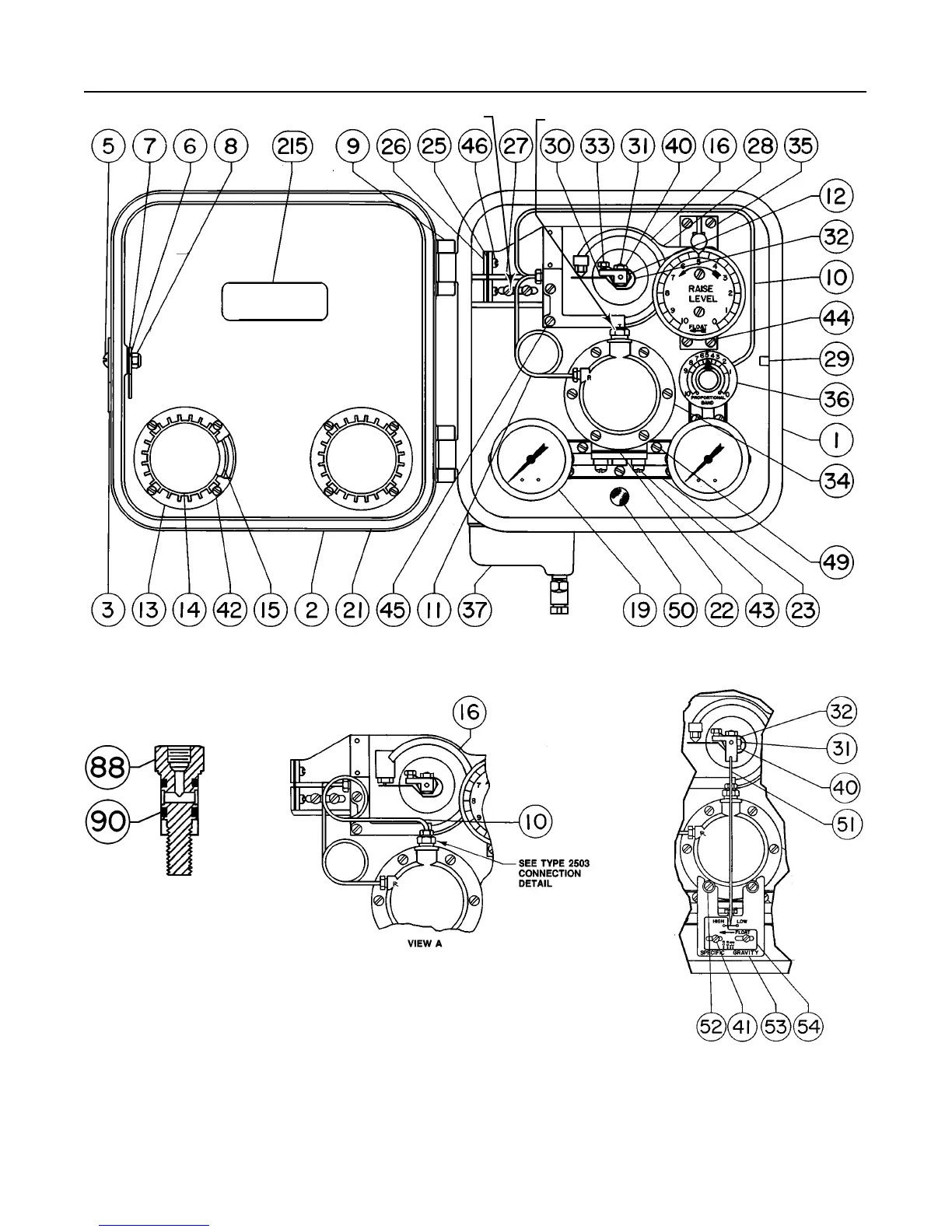

19. 2500 Series Controller / Transmitter Constructions
30A8865–D/DOC
32B0465–B/DOC
30A8869–D/DOC
30A8866–C/DOC
TYPICAL
CONTROLLER
TYPE
2503
CONNECTOR
DETAIL
ORIFICE
ASSEMBL
Y
(SEE
FIGURE
21)
TYPE
2503R
CONTROLLER
CONSTRUCTION
DET
AIL
OF
INDICA
TOR
ASSEMBL
Y
ON
C
VERSIONS
SEE VIEW A
LEVEL SET MOUNTING SCREWS
NOTE:
P
ARTS NOT SHOWN 4, 24, 38, 39, 47, AND 48.
29
31
Table of Contents
Default Chapter
1
Table of Contents
1
Introduction
2
Scope of Manual
2
Description
2
Specifications
2
Installation
2
Sensor Assembly
2
Uncrating
2
Form
2
Controller/Transmitter Orientation
6
Mounting Caged Sensor
6
Mounting Cageless Sensor
7
Side-Mounted Sensor
7
Top-Mounted Sensor
8
Special Installations
8
Temperature-Compensated Displacer
8
Piezometer Ring
9
Supply and Output Pressure Connection
9
Supply Pressure
10
Controller/Transmitter Output Connection
11
Prestartup Checks
11
Transmitter
13
Type 2500S Controller
13
Type 2503 Controller
14
Adjustments
15
Control Action
15
Level Adjustment (Controllers Only)
15
Zero Adjustment (Transmitters Only)
15
Proportional Band Adjustment (Except Transmitters and 2503 Series Controllers)
15
Specific Gravity Adjustment (Transmitters Only)
15
Calibration
15
Precalibration Requirements
15
Wet Calibration
15
Dry Calibration
16
Controller/Transmitter and Torque Tube Arm Disassembly
16
Determining the Amount of Suspended Weight
16
Calibration Procedure
17
Type 2500 Controller and 2500T Transmitter
17
Type 2500S and 2503 Controllers
19
Principle of Operation
20
Proportional Valve
21
Startup
20
Type 2500 Controller
20
Type 2500T Transmitter
20
Type 2500S Controller
20
Type 2503 Controller
20
Maintenance
22
Troubleshooting
23
Removing Controller/Transmitter from Sensor
23
Changing Mounting Methods
25
Installing Controller/Transmitter on Sensor
26
Replacing the Bourdon Tube
26
Changing Action
26
Relay Deadband Testing (Type 2500 Controller or 2500T Transmitter Only)
27
Replacing the Proportional Valve
27
Changing Relay
28
Relay Assembly Maintenance
28
Parts Ordering
29
Parts List
29
