2.4.2 Main Interface of Advanced Mode

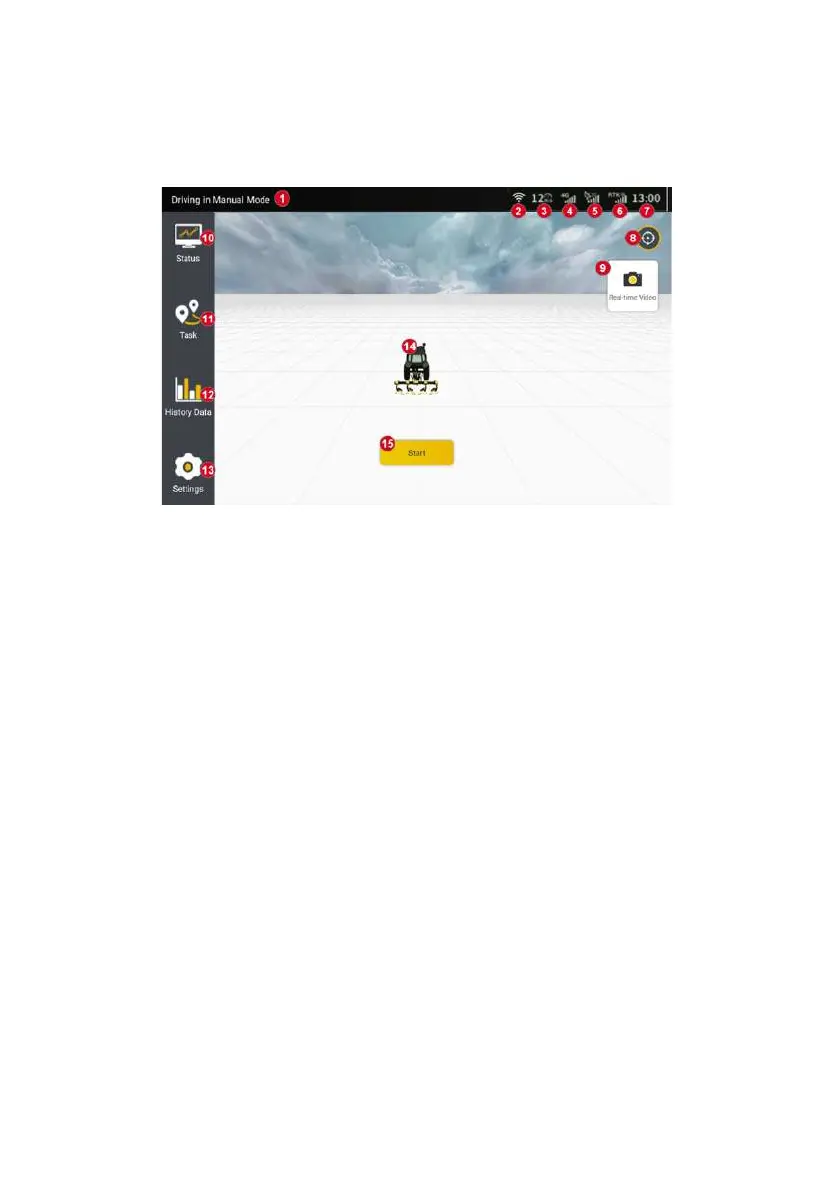

Figure 3.2.9 Main interface of advanced mode
1. Current driving mode：Shows the current driving mode, including
manual driving mode and autosteering driving.
2. WiFi signal: Show that the current device is connected to the wireless
network.
3. Real-time speed: Displays the running speed of the current agricultural
machine, and the speed unit can be changed in the setting.
4. 4G signal: The mobile network signals, shows the real-time cellular data
communication of the autonomous driving system.
5. GNSS signal: The satellite signal, shows the connection status of the
system.
6. RTK signal: The carrier phase differential signal. It includes two modes of
the portable base station and network RTK, showing the differential signal
strength in real-time.
7. Time: Android system time, users can manually changed the time zone in
Android system.
