In addition to completing commissioning and autosteering operations, you also
can check the real-time status of the operating vehicle and undertake other
system settings on the in-vehicle control terminal.
5 Other Functions
5.1 Status

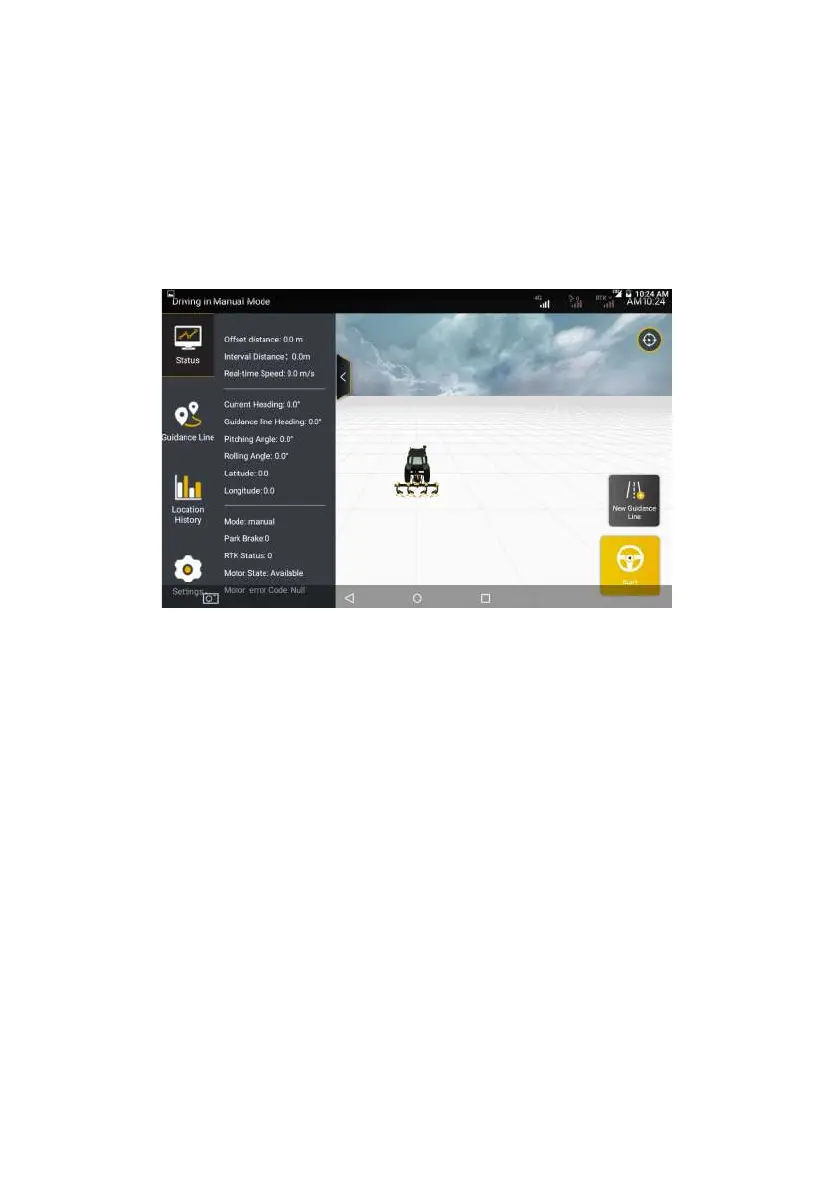

Figure 3.5.1 Status
Users click the "Status" to access the working status and operation of the
vehicle.
Offset distance: Offset distance of the vehicle;
Real-time speed: Real-time speed of the vehicle;
Current heading: Current heading angle of the vehicle;
Guidance line heading: The heading angle of the AB line;
Pitching angle: the overall pitching angle of the vehicle;
Rolling angle: the overall rolling angle of the vehicle;
Longitude and latitude: The real-time latitude and longitude of the vehicle;
Mode: Manual, automatic interval such as AB line, misalignment of heading,
the distance of AB point is too small, heading update timeout, position update
timeout, and heartbeat timeout;
