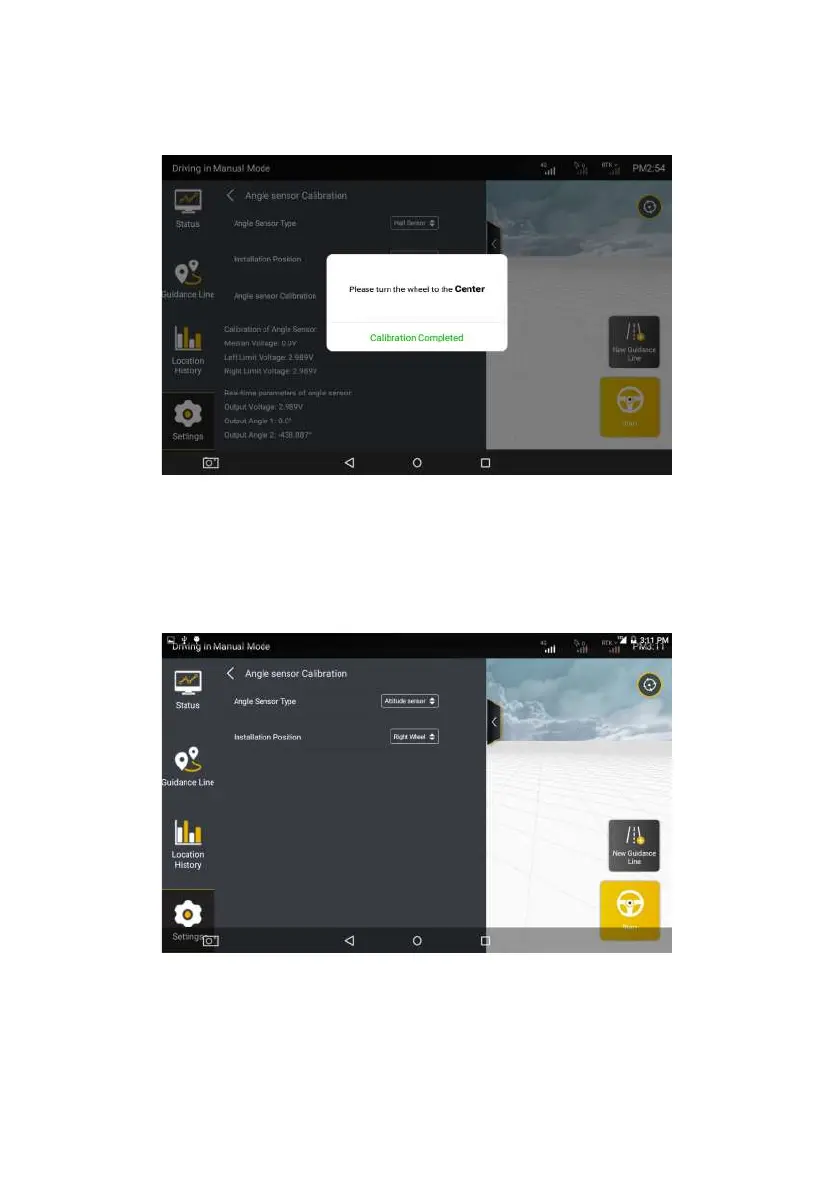

Figure 3.2.23 Turning the wheel to the center
If the angle sensor type is selected as "attitude sensor", please then
select the installation position of your angle sensor.
Note: when you choose “attitude sensor”, you shoule drive straight for 15-20m in
manual mode to complete data convergence everytimes you open the system.
Figure 3.2.24 attitude sensor
If the angle sensor type is selected as "no angle sensor", after selecting
"no angle sensor", enter its interface as shown below.
