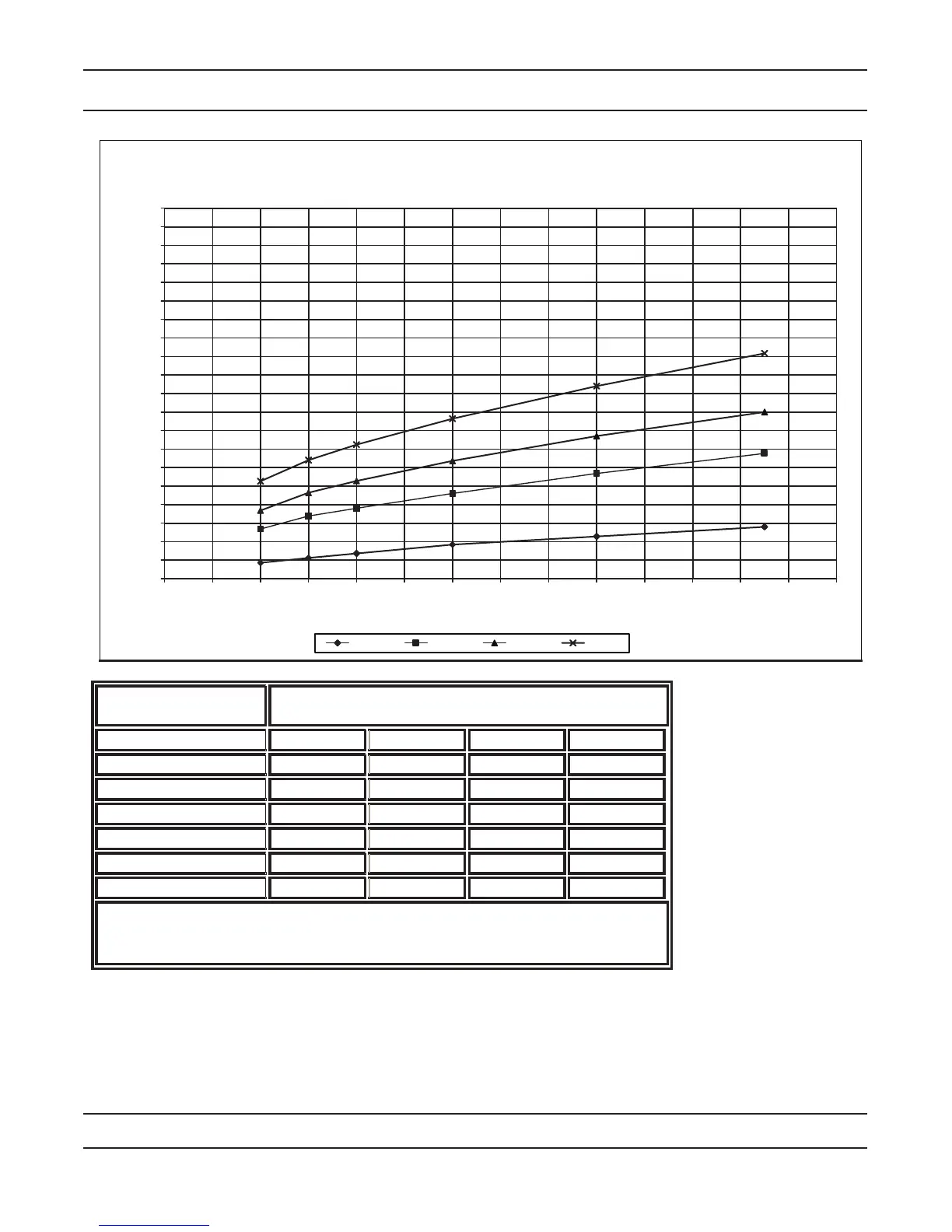

Fleck 2900S - 1700 Series Injector Performance Data

Page 49
Flow Data & Injector Draw Rates - Downflow
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
Inlet Pressure - psi
m p g - e t a R w o l F
# 3C # 4C # 5C # 6C
1700 series injectors
Slow Rinse - gpm
pressure # 3C # 4C # 5C # 6C
20 0.93 1.84 2.34 3.13
30 1.06 2.19 2.82 3.70
40 1.18 2.40 3.14 4.12
60 1.42 2.80 3.68 4.82
90 1.64 3.34 4.35 5.70
125 1.90 3.88 5.00 6.58
# 3C - steel cap, no o-ring, air disperser
# 4C & 5C - steel cap, o-ring, air disperser
# 6C & 7C - brass cap, o -ring, no air disperser
TR22089-2900s Valve 1700 Series Injector Slow Rinse Rates
