Flex L3206C User Manual

Angle grinder L3206C, L3208C, L4206C
14

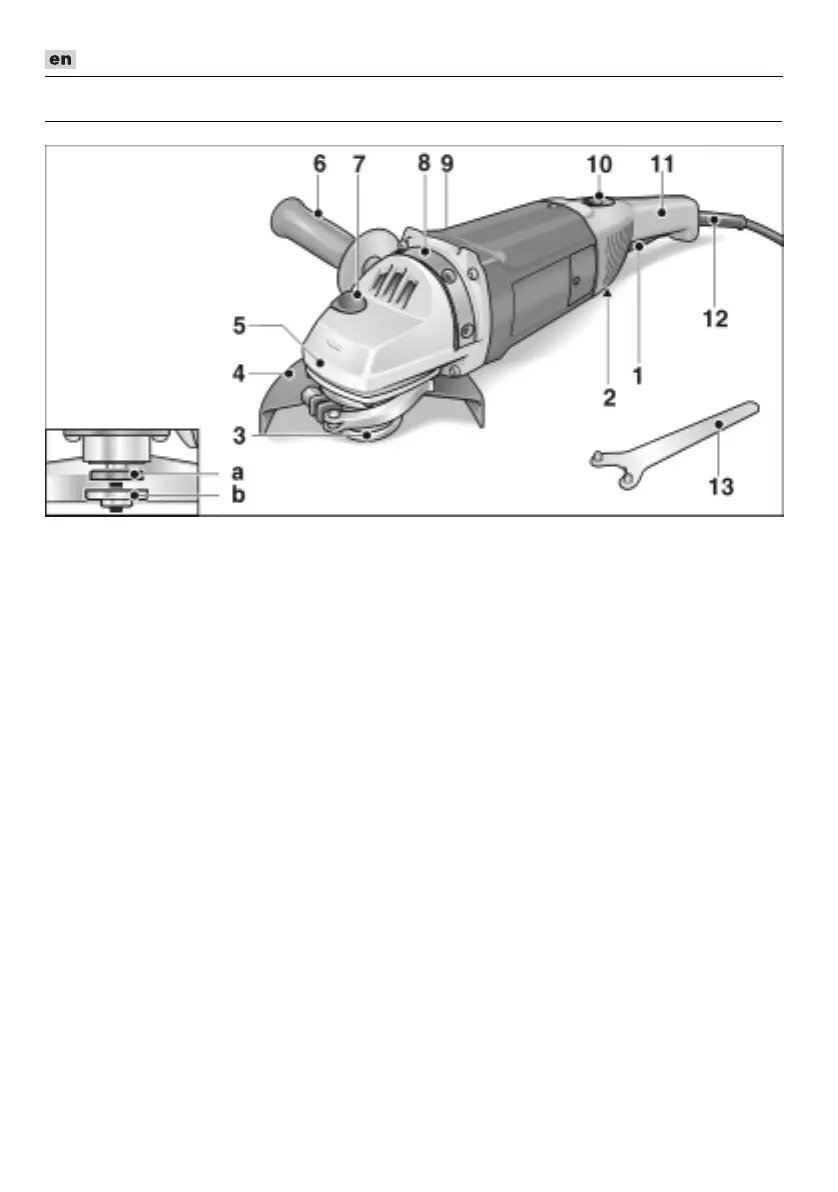

Overview
1 Switch
Switches the power tool on and off.
2 Release button (L3206C/L3208C
only)
For rotating the switch handle through
90°.
3 Spindle with threaded flange
a Clamping flange
b Clamping nut
4Guard
Quick-release guard. Can be adjusted
without a tool. With coding for
unambiguous installation.
5Gear head
With air outlet and direction-of-rotation
arrow.
6 Auxiliary handle
Can be adjusted in 180° steps without
a tool.
7 Spindle lock
Secures the spindle when the tool
is changed.
8 Notched segment with support
bridge
For attachment and adjustment of the
handle.
9 Rating plate
10 Starting lockout/Locking button
Prevents the power tool from starting
up unintentionally and locks the switch
(1) during continuous operation.
11 Switch handle
12 4.0 m power cord with plug
13 Stop key
