9 of 59 GH-24, GH-30, GH-45, GH-60 Rev.003
ARM INSTALLATION
1. Drill and tap 4 bolt holes on a flat, smooth table or work bench. Use 3/8-16 bolts for the 24, 30, and 45

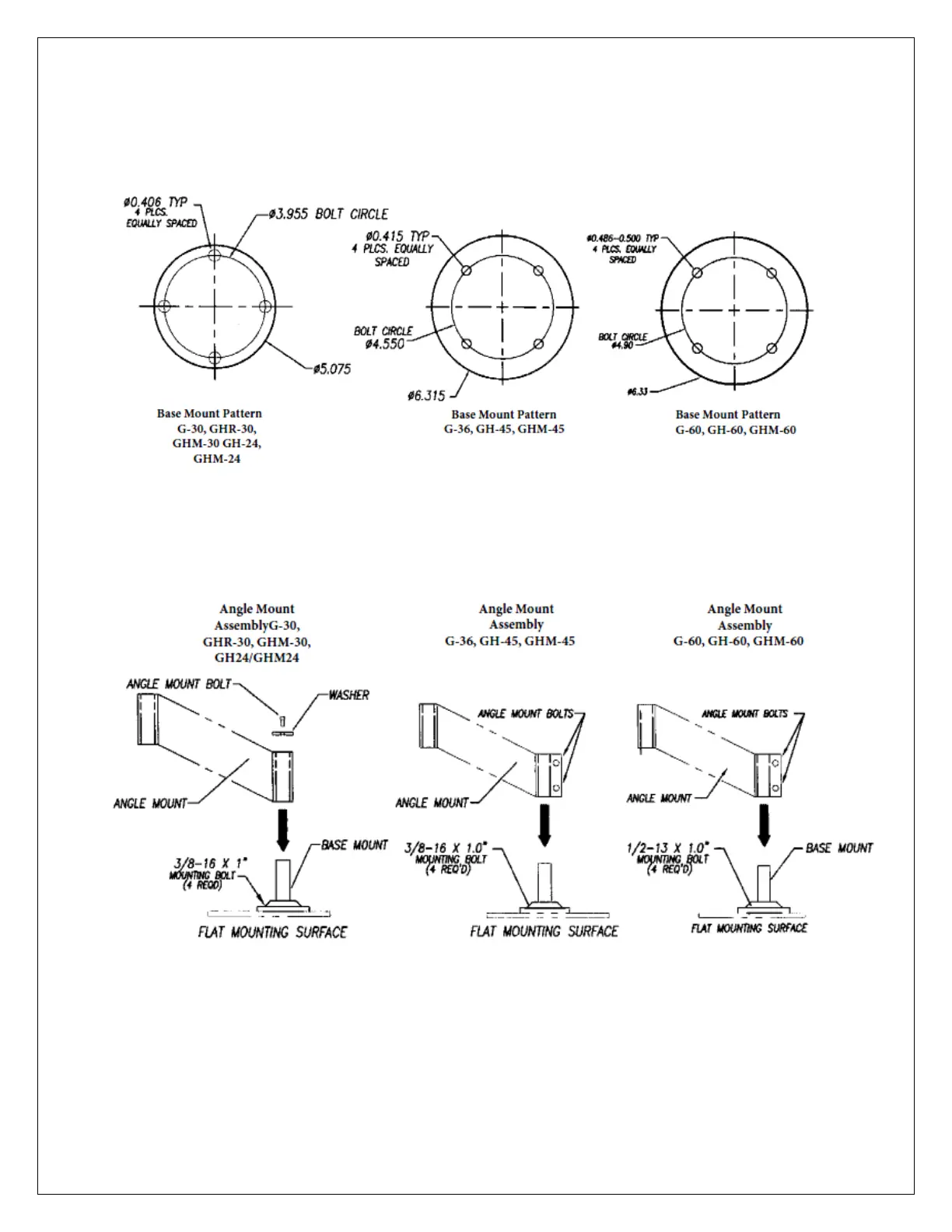

series units. Use 1/2-13 bolts on the 60 series units. (See Base Mount diagram below)
2. Secure the base mount and apply a light coating of grease to the base mount shaft. Slide the angle
mount onto the shaft of the base mount and secure the angle before inserting the FlexArm! (See Angle
Mount Assembly Diagram Below)
