Flexicon MC12 - 11 Mc12 (Table Top Model) Interface; Mains ( Arrow 1); Expansion ( Arrow 2); Port 1 ( Arrow 3)

Operators and Reference Manual
MC12
MC12 OM RM EN 74-111-132 v1.03.doc Ver. 1.03 Page 45 of 47

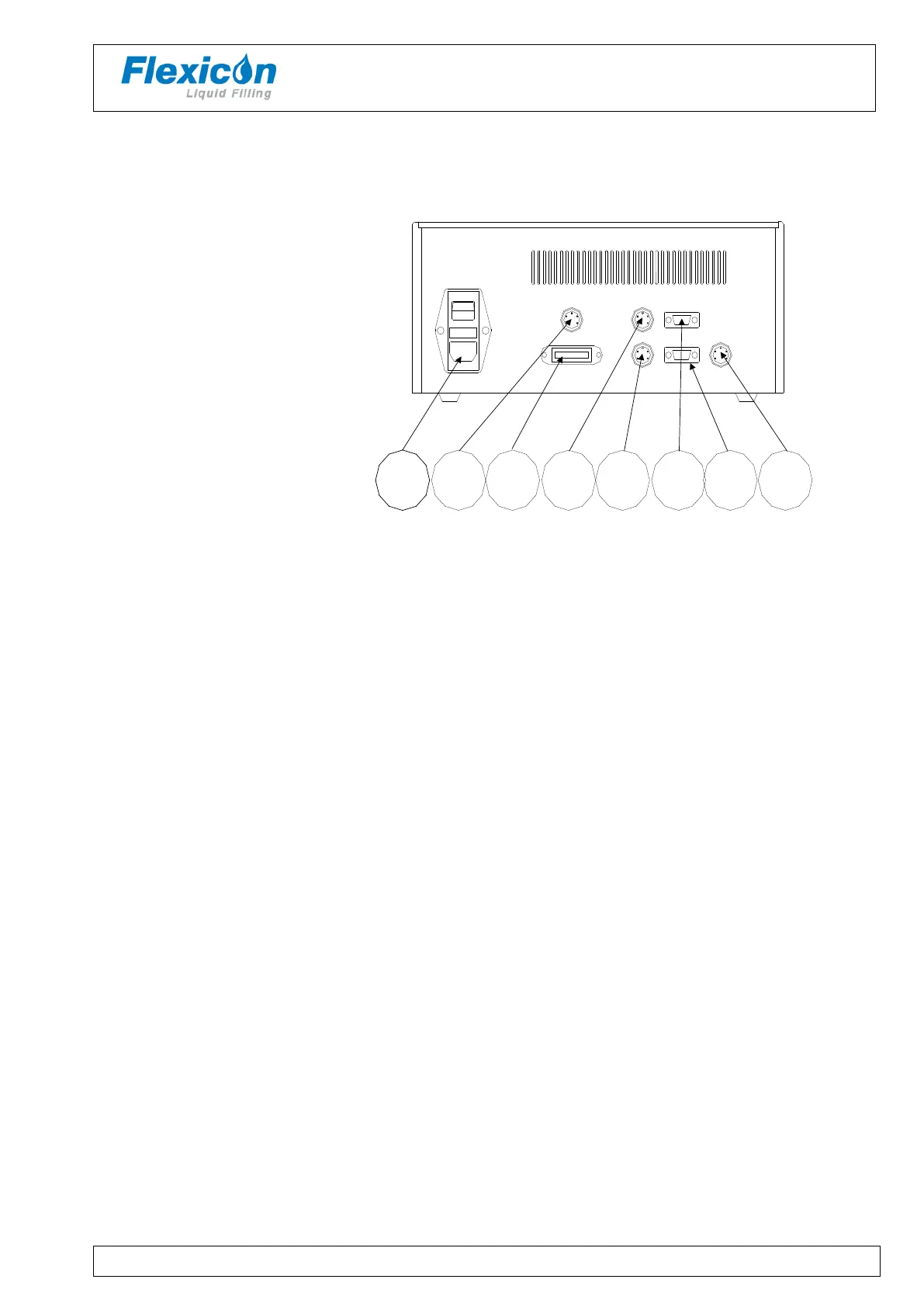

11. MC12 (table top model) INTERFACE
The MC12 has 8 interface ports.
1
Main Switch
2
Expansion
3
Port1
4
External 1
5
External GO
6
RS-232/1
7
RS-232/2
8
Net
11.1 Mains ( Arrow 1)
Main switch / connection.
11.2 Expansion ( Arrow 2)
Socket for extensions. Only to be used in connection with original Flexicon equipment.
11.3 Port 1 ( Arrow 3)
Socket for Flexicon peripheral equipment such as the bottom-up filling system or connecting
to external control.
11.4 External 1 ( Arrow 4)
Pin 1. Input for start signal
+5 +50 Vdc, min. 100 msec. Front triggered.
Pin 2. Output, +24 Vdc, max 250 mA.
Pin 3. Ground
Pin 4. Status output, max. +50 Vdc, 250 mA.
Pin 4 is connected to 0V via a relay when a connected drive is dispensing or
pumping.
Pin 5. No connection.
1
2
3
4
6
5
8
7
