FLUXUS F70x 7 Connection
60 UMFLUXUS_F7V4-6-2EN, 2017-10-01
FLUXUS F705
• Remove the left blind plug for the connection of extension cable (see
Fig. 7.12
).
• Push the extension cable through the sealing ring (only for cable gland M20, not for cable gland 1/2 NPS).
• Insert the extension cable with the AMP-Quick and SMB connectors into the housing.
• Fix the extension cable by tightening the cable gland with the counter nut.
• Connect the AMP-Quick and SMB connectors to the sockets of the transmitter (see Fig. 7.2,
Fig. 7.12
and Tab. 7.4).
• Connect the connectors of the transducer cable and the extension cable.
FLUXUS F709
• Open the cable gland of the extension cable (see Fig. 7.13).
• Push the basic part of the cable gland towards the AMP-Quick and SMB connectors, the cap nut and the compression
part in the other direction.
• Push the extension cable through the shield terminal to terminal strip KL6 for measuring channel A and to terminal strip
KL8 for measuring channel B.
• Pull the extension cable back until the brushed back outer shield is below the shield terminal.
• Fix the extension cable and the external shield to the shield terminal.
• Insert the extension cable with the AMP-Quick and SMB connectors into the housing.
• Connect the AMP-Quick and SMB connectors to the sockets of the transmitter (see Fig. 7.4,
Fig. 7.13
and Tab. 7.5).
• Connect the connectors of the transducer cable and the extension cable.

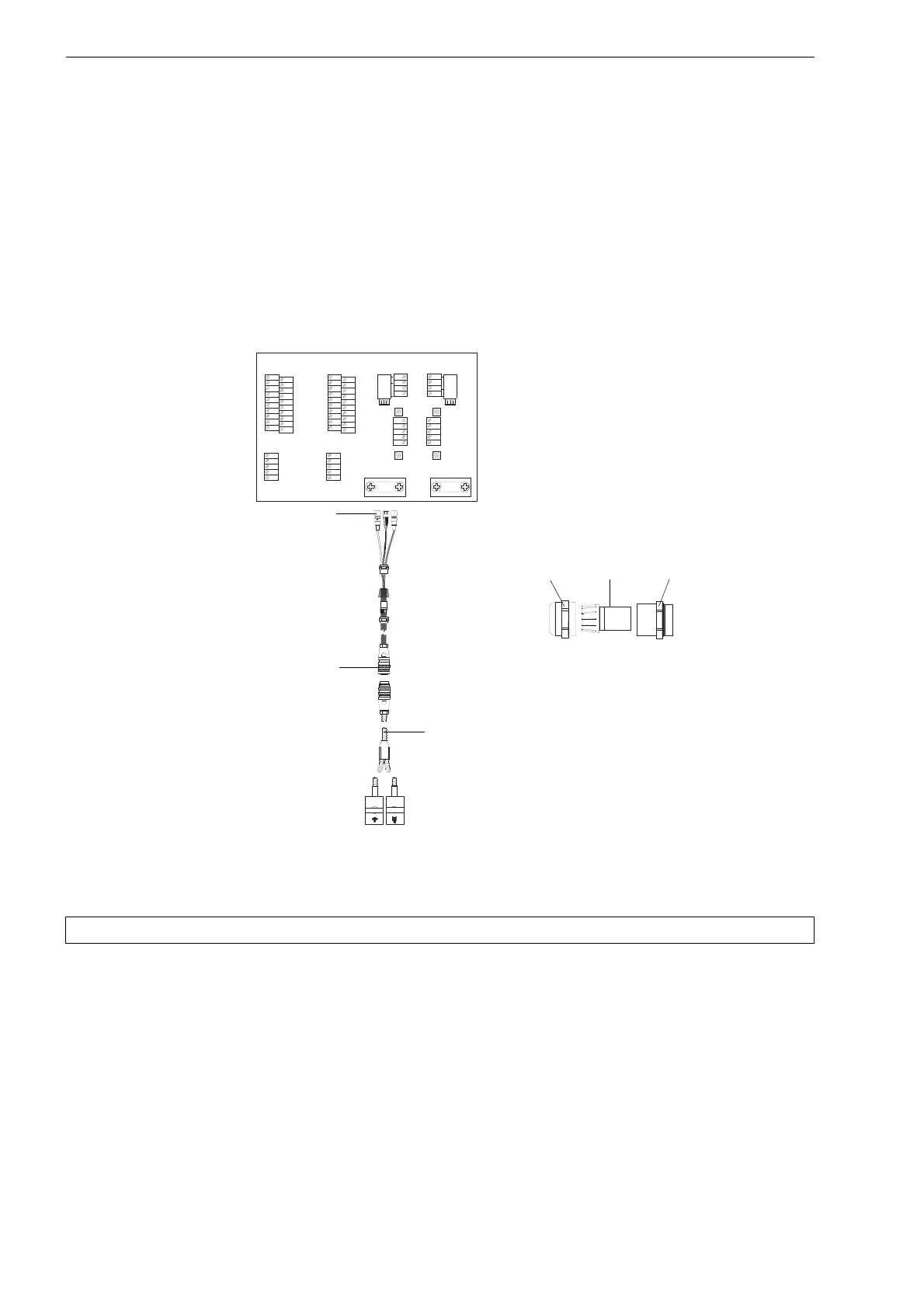

Fig. 7.13: Connection of the extension cable with AMP-Quick and SMB connectors to the transmitter FLUXUS F709
Note! Cap nut, compression part and basic part of the cable gland remain on the cable.
