7 Connection FLUXUS F70x
UMFLUXUS_F7V4-6-2EN, 2017-10-01 71
FLUXUS F709
• Prepare the cable of the temperature probe (see Fig. 7.31).
• Connect the temperature probe to the terminals of the transmitter (see Fig. 7.4, Fig. 7.30 and Tab. 7.14).
7.2.2 Connection with an Extension Cable
FLUXUS F704
• Remove the second blind plug on the right for the connection of the extension cable (see Fig. 7.25).
• Open the cable gland of the extension cable. The compression part remains in the cap nut (see Fig. 7.26 and Tab. 7.12).
• Push the extension cable through the cap nut, the compression part, the basic part, and the reducer.
• Prepare the extension cable.
• Insert the extension cable into the housing.
• Screw the gasket ring side of the reducer tightly into the housing of the transmitter.
• Tightly screw the basic part into the reducer.
• Fix the cable gland by screwing the cap nut onto the basic part.
• Connect the connectors of the extension cable and the temperature probe.
• Connect the extension cable to the terminals of the transmitter (see Fig. 7.1, Fig. 7.25 and Tab. 7.15).

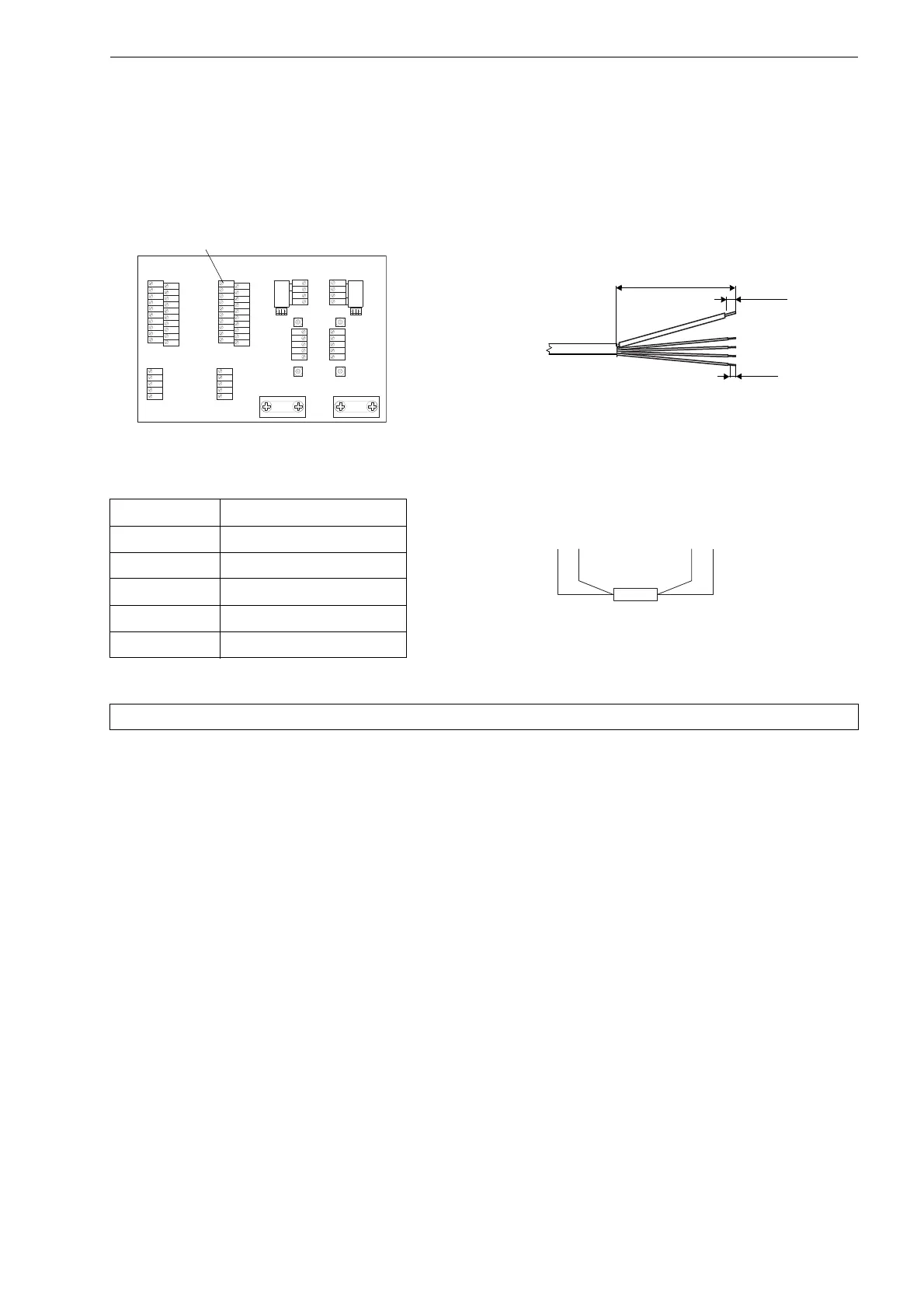

Fig. 7.30: Transmitter FLUXUS F709 Fig. 7.31: Preparation of the cable
Tab. 7.14: Terminal assignment of the transmitter
terminal temperature probe
Fig. 7.32: Temperature probe
T1a...T4a red
T1A...T4A red/blue
T1b...T4b white/blue
T1B...T4B white
S1...S4 shield
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).
