FlexRadio Systems FLEX-5000A User Manual

O P E R A T I O N C H A P T E R 6
Configure PowerSDR CAT Control

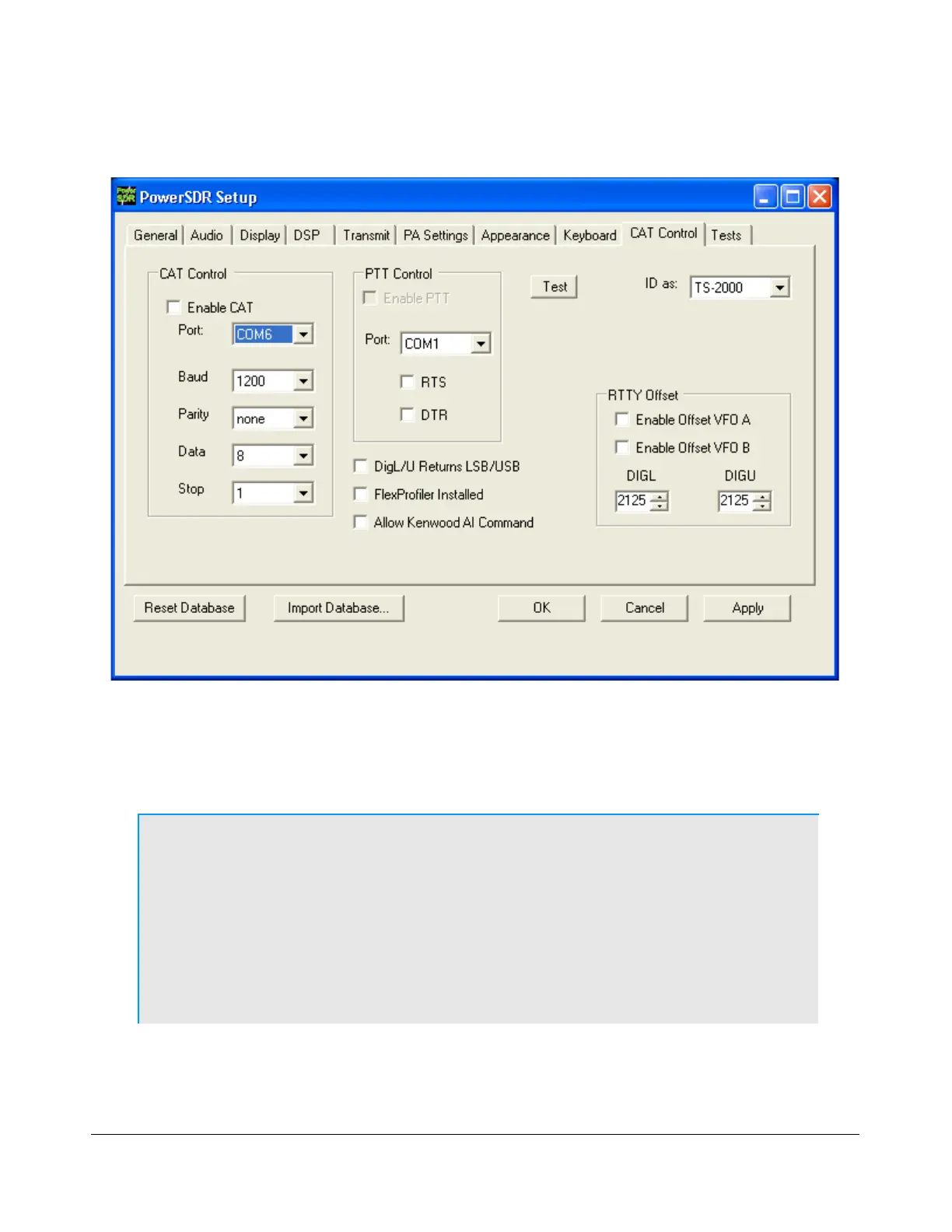

Figure 165: Setup Form Cat Control Tab
Set the controls in the CAT Control Group on the left side of this form to match those shown in Figure
165 to connect PowerSDR to COM 6 of the COM6-COM16 pair. (If you changed the COM port pair
settings in VCOMConfigurator you will need to modify the COMx setting to match that change). Set the
ID as TS-2000. Once all of the settings are correct, click the Enable CAT check box.
Note 1: Until external applications incorporate the FLEX-5000 with its
extended set of CAT controls, it is more prudent to select the
TS-2000.
Note 2: Some third party applications do not allow you to connect to a high
COM port number. In such a case swap COM6 to COM16 above and
connect the digital program to COM6. Alternatively, create an even
lower virtual Com port number (e.g. COM3), that is not physically
present.
[The rest of this page has been left blank intentionally]
183  2003-2008 FlexRadio Systems
