B U F F E R S A N D S A M P L E R A T E A P P E N D I X A
202  2003-2008 FlexRadio Systems

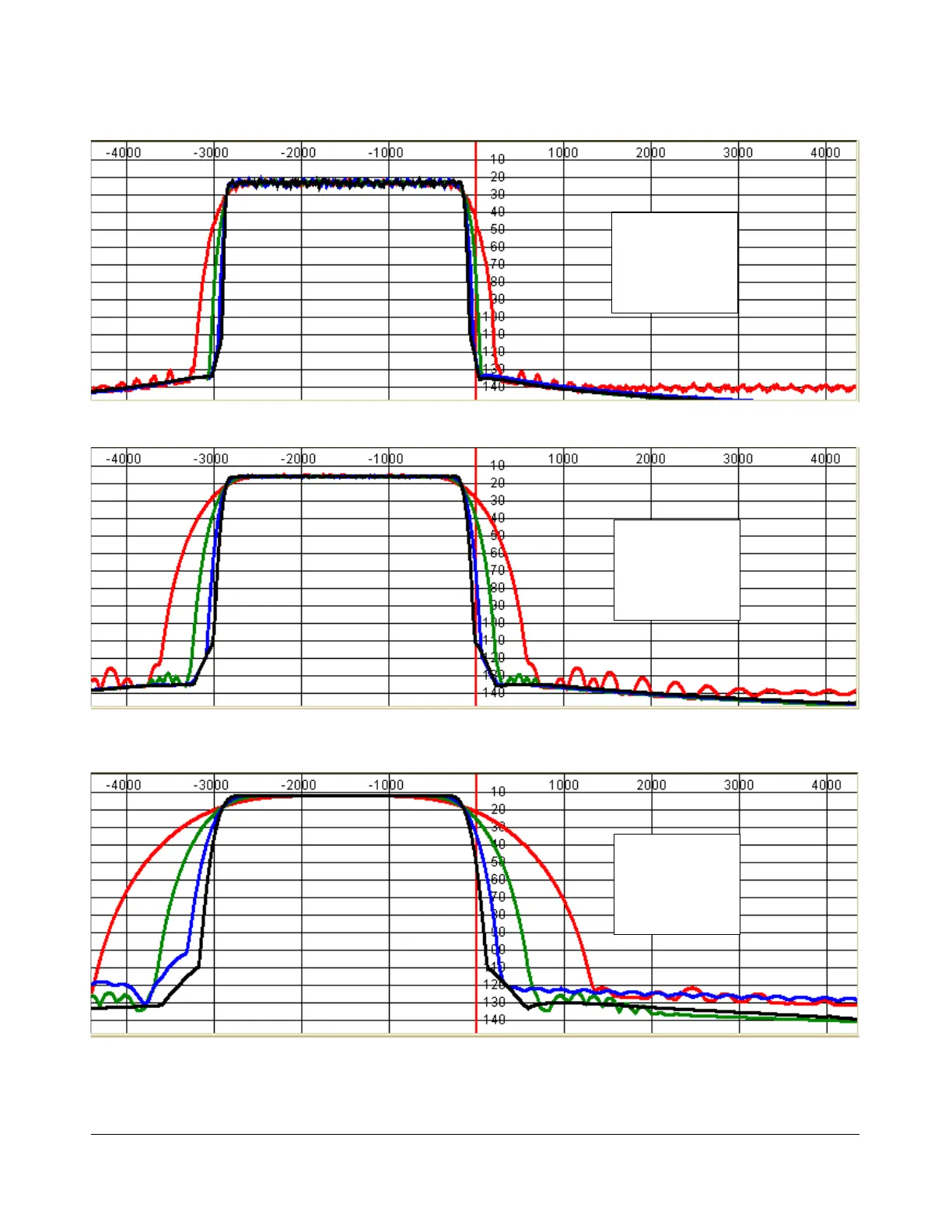

Figure 178: 2.7kHz LSB Filter at 48kHz Sampling Rate
DSP Buffer Sizes:
Red – 512
Green – 1024
Blue – 2048
Black - 4096
Figure 180: 2.7kHz LSB Filter at 192kHz Sample Rate
DSP Buffer Sizes:
Red – 512
Green – 1024
Blue – 2048
Black - 4096
Figure 179: 2.7kHz LSB Filter at 96kHz Sample Rate
DSP Buffer Sizes:
Red – 512
Green – 1024
Blue – 2048
Black - 4096
DSP Buffer Sizes:
Red – 512
Green – 1024
Blue – 2048
Black - 4096
DSP Buffer Sizes:
Red – 512
Green – 1024
Blue – 2048
Black - 4096
