Installation
14
427-0200-00-12 Revision 100
This document does not contain any export-controlled information.

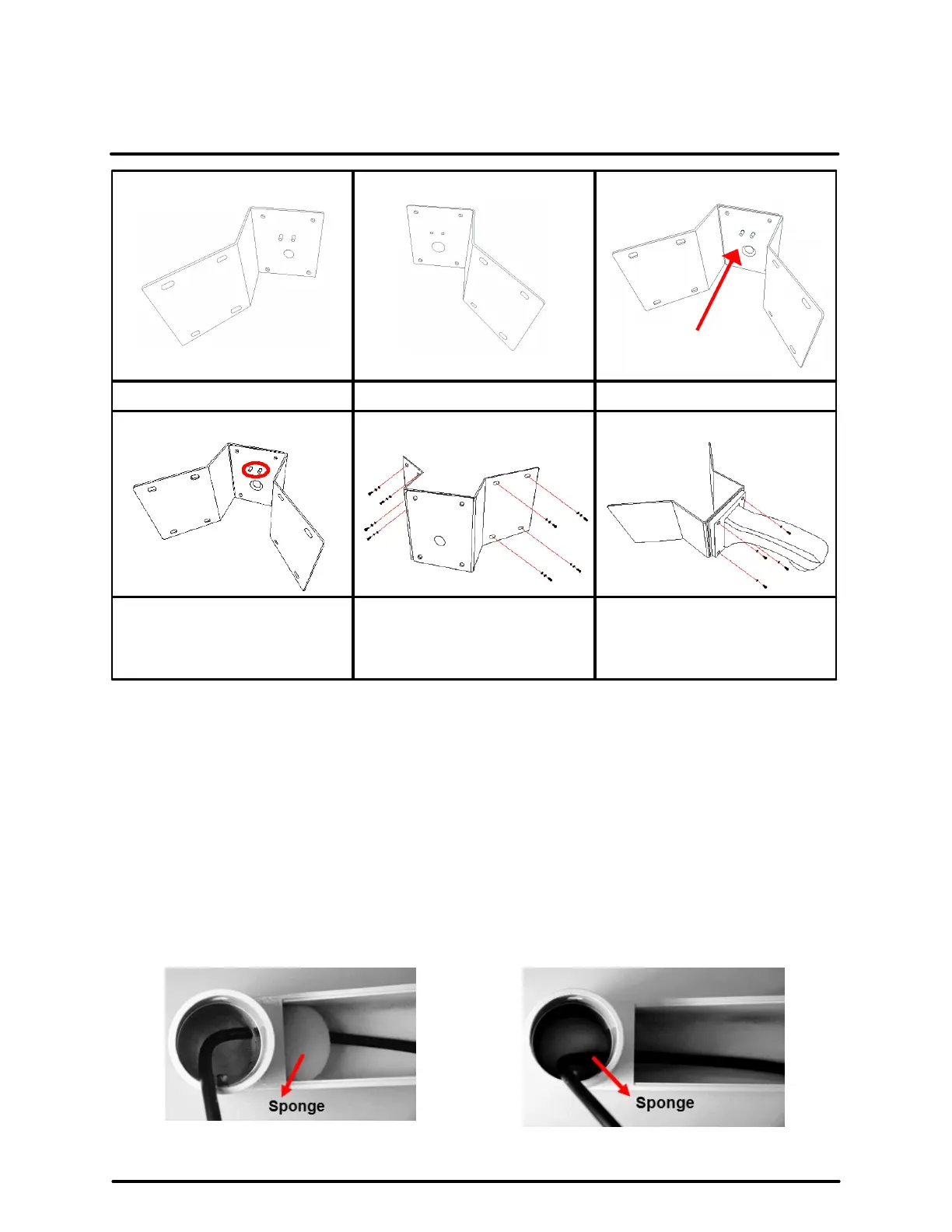

Join parts 1 and 2 together.
Tighten hex head cap screws
(clockwise).
Fix assembled corner bracket to
the wall.
Fix arm (pictured) or power box
to the corner bracket with washer
in the front and screw nuts at the
back.
Detailed instructions for mounting a camera using the CX-CRNR-G3 corner adapter with the CX-
ARMX-G3 wall mount bracket
1. Cut a cable access hole in the wall.
2. Attach the assembled corner bracket to the wall using the appropriate screws and screw anchors (not
provided).
3. Thread the cables through the corner mounting plate.
4. Attach the wall mount to the corner mount using the supplied screws and washers.
5. Thread the cables through the wall mount with the cables coming out of the pendant mount’s outlet. For
outdoor cameras, attach the waterproof gasket to the pendant mount.
6. After threading the cables, block the entry hole with the supplied sponge to prevent insects from
entering. The sponge can be placed in one of two ways.
