4.6 I/O Devices Page

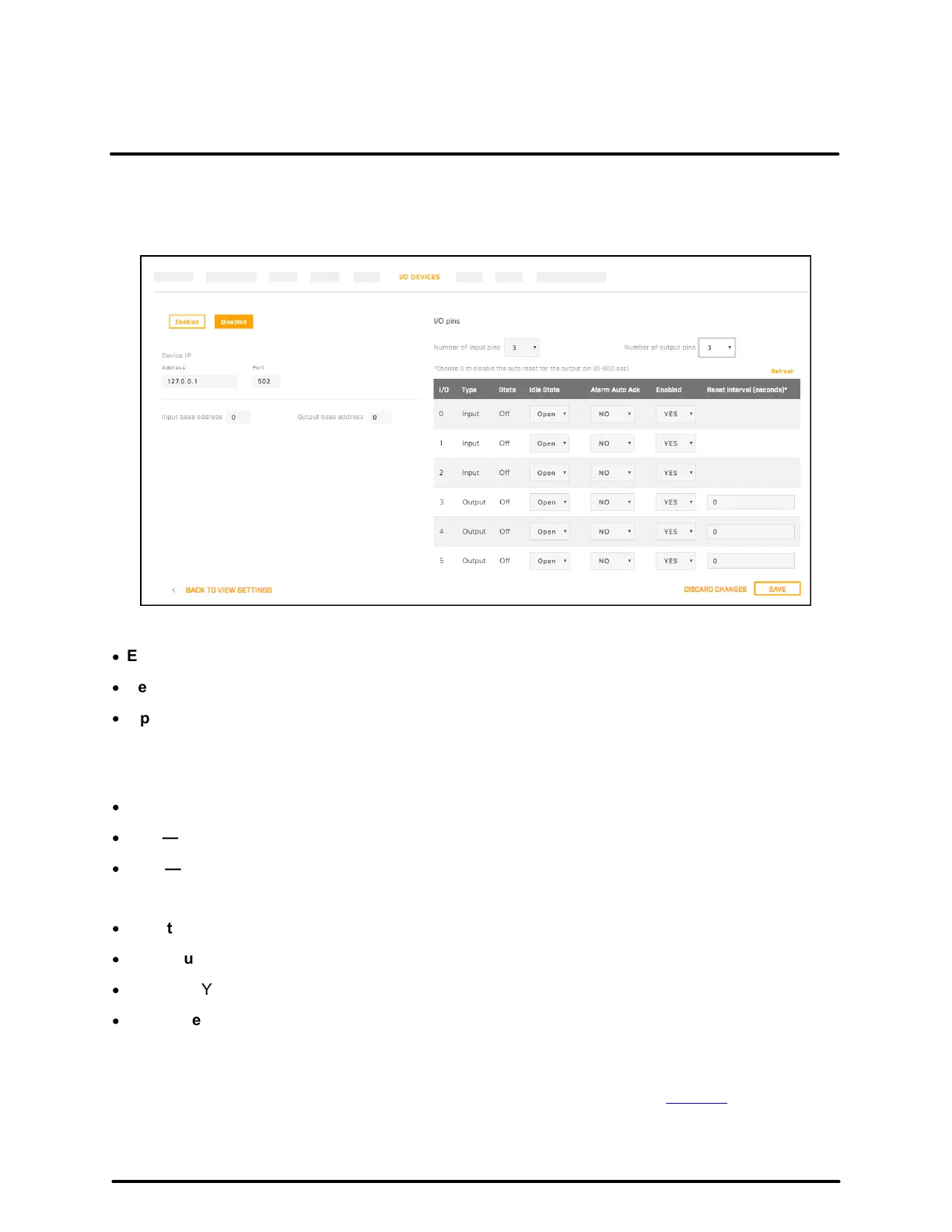

The I/O Devices page provides configuration settings for external I/O connections and the device managing
those connections with the camera.
The following settings for the device managing the external I/O connections are available:
·
Enabled or Disabled
·
Device IP address and port
·
Input and output base addresses
You can define the number of input and output pins the device manages.
The following information appears for each pin:
·
I/O pin number
·
Type—Input or Output
·
State—the pin's current state: Open or Closed
For each pin, you can define the following:
·
Idle State—Open or Closed
·
Alarm Auto Ack—Yes or No
·
Enabled—Yes or No
·
Reset Interval (for output pins only)—between 0-600 seconds; specifying 0 seconds disables the auto
reset
Related Operation and Configuration Information
For information about changing the current state of the input and output pins, see I/O Page.
For more information about how to configure the device managing the external I/O connections, refer to the
device's documentation.
