10.2 Snapshot view

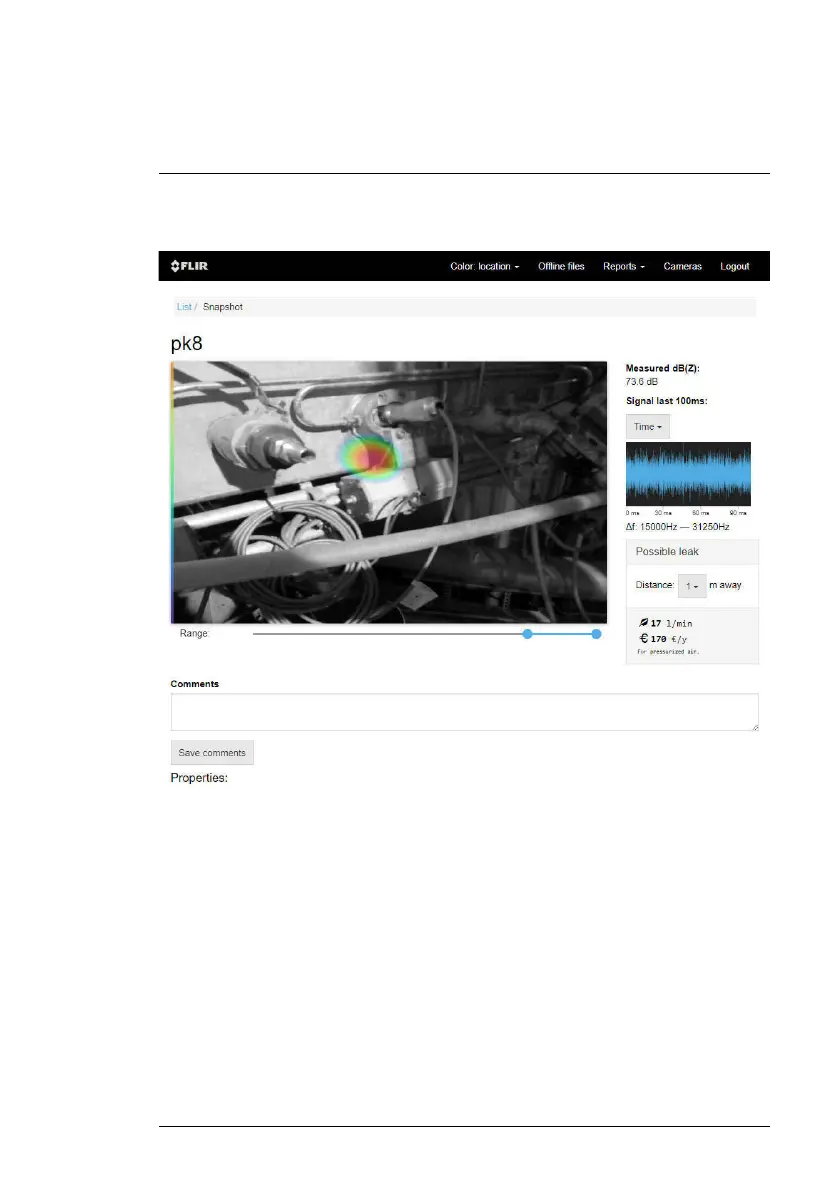

When clicking on a snapshot in the main view of the FLIR Acoustic Camera
Viewer, a view of that snapshot will be opened. On the upper left you can see
the camera image and the acoustic heatmap overlayed on top of it. Above the
image, the comments entered when taking the snapshot are shown. If no
comments were entered, the device-generated label is shown instead. On the
left side of the image a colorbar is shown. The height of the colorbar repre-
sents the sound level, which also is shown to the right of the image (Measured
dB(Z)).
Underneath the image, there is a range slider that can be used to adjust the
dynamic range of the acoustic heatmap. Increase the range to the left to view
the extent of large sound sources, or to see weaker sound sources when
