2,28in
58mm
1,22in
31mm
1,85in
47mm
4,81in
122,1mm
0,95in
24,3mm
Camera with Lens IR f=30 mm (15°)
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
4(7)
T127604

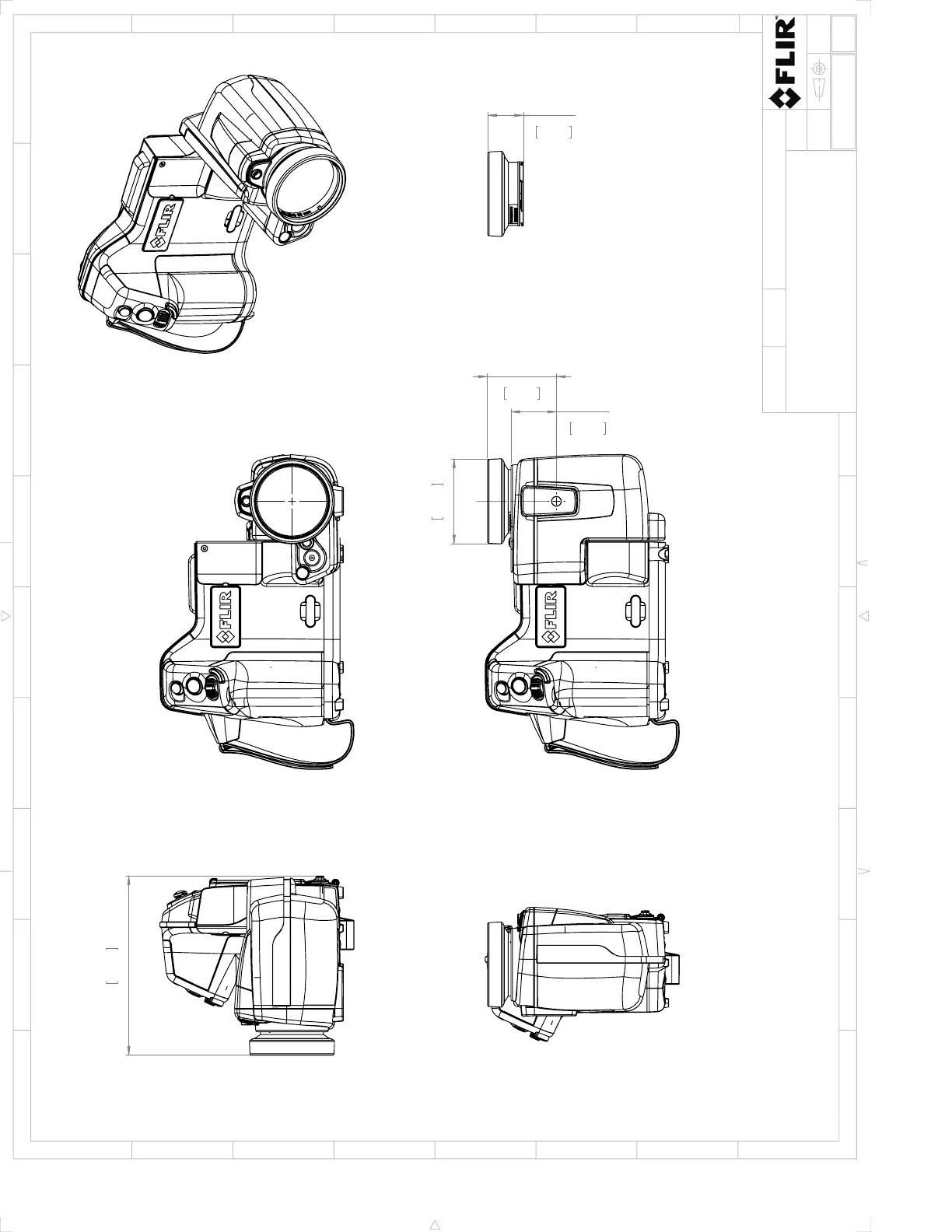

Basic Dimensions FLIR T4xx
JOTA
2012-06-07
R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
1 32 54
C
F
B
D
G
E
A
6
Size
A
1:2
Scale
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
-
