Flotec FP0S3200A User Manual

For parts or assistance, call Flotec Customer Service at 1-800-365-6832

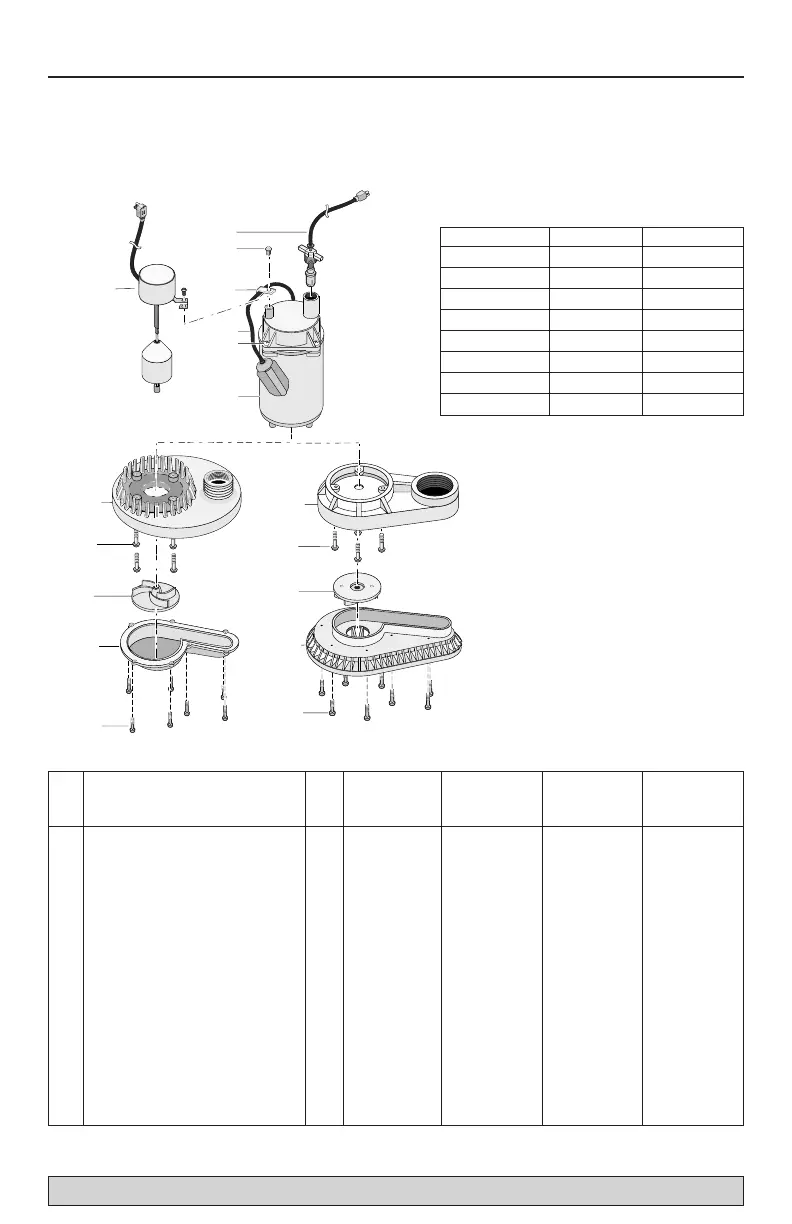

Repair Parts 5
5
8
4A
1
2
7A
287 0295 FP
6
3
9
8
10
11
7B
9
4B
12
13
PLASTIC SERIES
FP0S1800A, FP0S1800LTS
FP0S2400A, FP0S3200A
FP0S2450A, FP0S3250A
CAST IRON SERIES
FPSC2200A
FPSC2250A
**If motor fails, replace entire pump.
• Not Illustrated
FP0S2400A FP0S1800LTS
Key FP0S1800A FP0S2450A
No. Part Description Qty. FP0S3200A FP0S3250A FPSC2200A FPSC2250A
1 Power Cord Assembly 1 See Chart See Chart See Chart See Chart
2 Cord Clamp Screw 1 U30-955PS – U30-955PS –
3 Float Switch Cord Clamp 1 CC0030-13 – CC0030-13 –
4A Tethered Float Switch Assembly 1 FP18-15BD FP18-15BD
4B Vertical Float Switch Assembly 1 – FPS17-66 – FPS17-66
5 Screw, #8-32x7/8” Hex Head 4 U30-951PS – U30-951PS U30-951PS
6 Motor 1 ** ** ** **
7A Volute (Upper) FP0S2400, 3200, 1 PS1-31P PS1-31p – –
2450, 3250
7B Volute (Upper) FPSC2200, 2250 1 – – PS1-24B PS1-24B
• Volute (Upper - FP0S1800) 1 PS1-32P PS1-32P – –
8 Screw, #8-32x5/8” Phillips Pan Head 4 U30-912PS U30-912PS U30-912PS U30-912PS
9 Impeller 1 See Chart See Chart See Chart See Chart
10 Volute (Lower) 1 PS1-30P PS1-30P – –
11 Baseplate – PS4-18P PS4-18P
12 Screw, #8-16x1/2” Lg. Pan Head 7 U30-956MG U30-956MG – –
13 Screws, #8-32 x 1/2” Pan Head 8 – – U30-571BT U30-571BT
Model Impeller Power Cord
FP0S1800A RP0000917 PS117-54-TSU
FP0S1800LTS RP0000917 PS117-54-TSU
FP0S2400A PS5-271P PS117-54-TSU
FP0S2450A PS5-271P PS117-54-TSU
FP0S3200A RP0000911A PS117-54-TSU
FP0S3250A RP0000911A PS117-54-TSU
FPSC2200A PS5-272P PS117-54-TSU
FPSC2250A PS5-272P PS117-54-TSU
