Flotec FP4332-08 User Manual

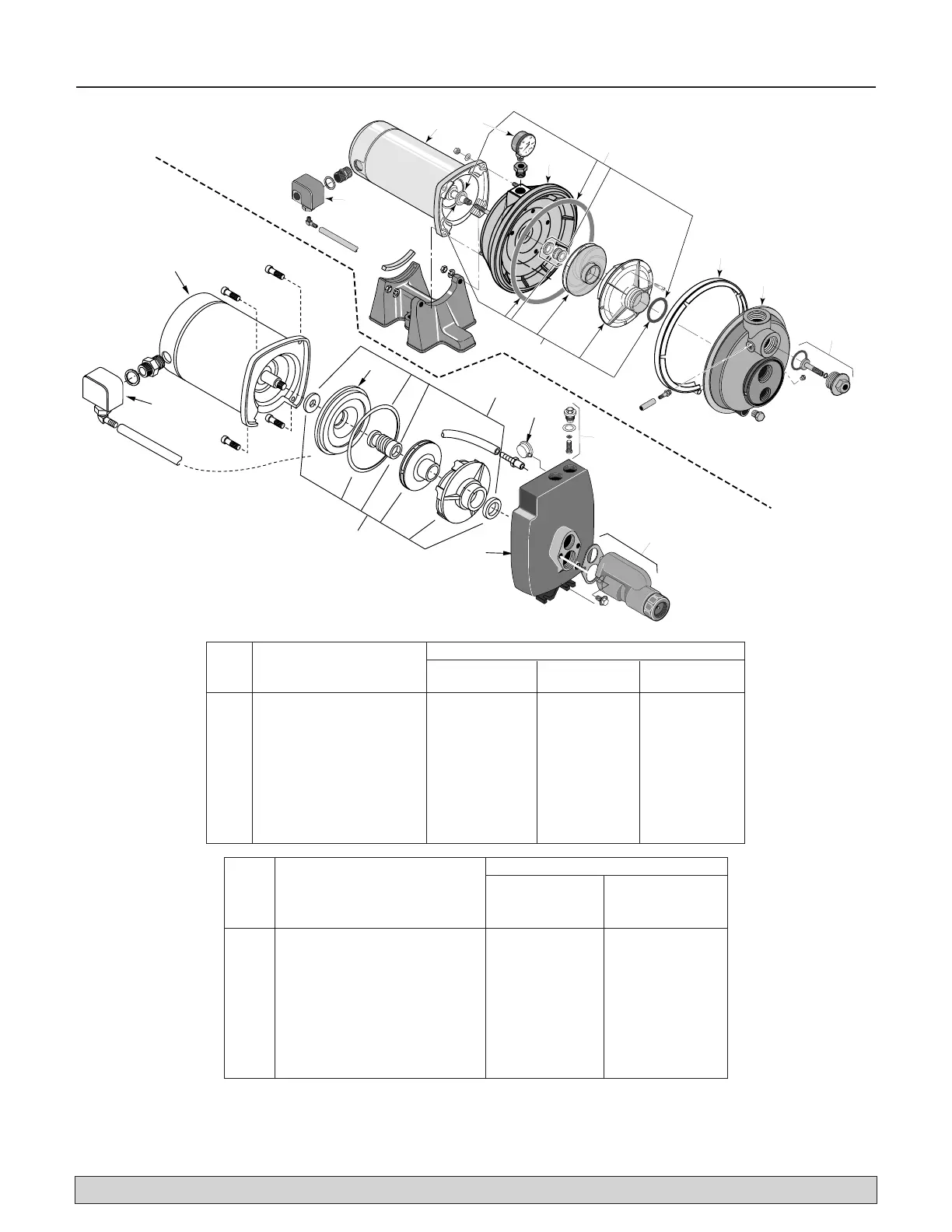

Repair Parts 14
For parts or assistance, call Flotec Customer Service at 1-800-365-6832
7
6
2
1
3
9
8
4
5
1
2
3
4
5
6
7
8
9
4184 0502
5
Corrosion Resistant Models
FP4301-01L
FP4312-08
FP4322-08
FP4332-08
Cast Iron Models
FP4212-08
FP4222-08
FP4212J-08
FP4222J-08
Model and HP
Key Part FP4312-08 FP4322-08 FP4332-08
No. Description 1/2HP 3/4HP 1 HP
1 Motor AS100CL A100DL A100EL
2 Pressure Gauge TC2104 TC2104 TC2104
3 Pump Body (Back Half) L176-47P L176-47P L176-47P
4 Seal & Gasket Kit * FPP1500 FPP1500 FPP1500
5 V-Clamp Assembly C19-54SS C19-54SS C19-54SS
6 Pump Body (Front Half) L76-37P L76-37P L76-37P
7 Control Valve Assembly L162-10PS L162-10PS L162-10PS
8 Overhaul Kit ** FPP1511 FPP1512 FPP1513
9 Pressure Switch Assembly TC2151 TC2151 TC2151
Model and HP
FP4212-08 FP4222-08
Key Part FP4212J-08# FP4222J-08
No. Description 1/2HP 3/4HP
1 Motor - 60 Cycle AS100CL A100DL
2 Seal Plate N3-1043P N3-1043P
3 Seal & Gasket Kit * FPP1550 FPP1550
4 Pressure Gauge TC2104 TC2104
5 Control Valve Assembly 01322 01322
6 Jet Package*** J198-22 J198-22
7 Pump Body L76-44 L76-44
8 Overhaul Kit ** FPP1560 FPP1561
9 Pressure Switch TC2151 TC2151
* Includes: water slinger, seal plate O-ring or gasket, shaft seal, diffuser pad, and diffuser O-ring or gasket.
** Includes: Seal and Gasket Kit plus seal plate insert, impeller and diffuser.
*** FP4212J and FP4222J only. For component part numbers, see the following page.
# Included in Models FP4212J15H-04 and FP4212J42-04.
Repair instructions are included with all repair kits.
