Flotec FP4332-08 User Manual

Ejector Package 15
For parts or assistance, call Flotec Customer Service at 1-800-365-6832
N
3
2
P
6
7
4
1
1
2
3
Surface "B"
6
7
5
4

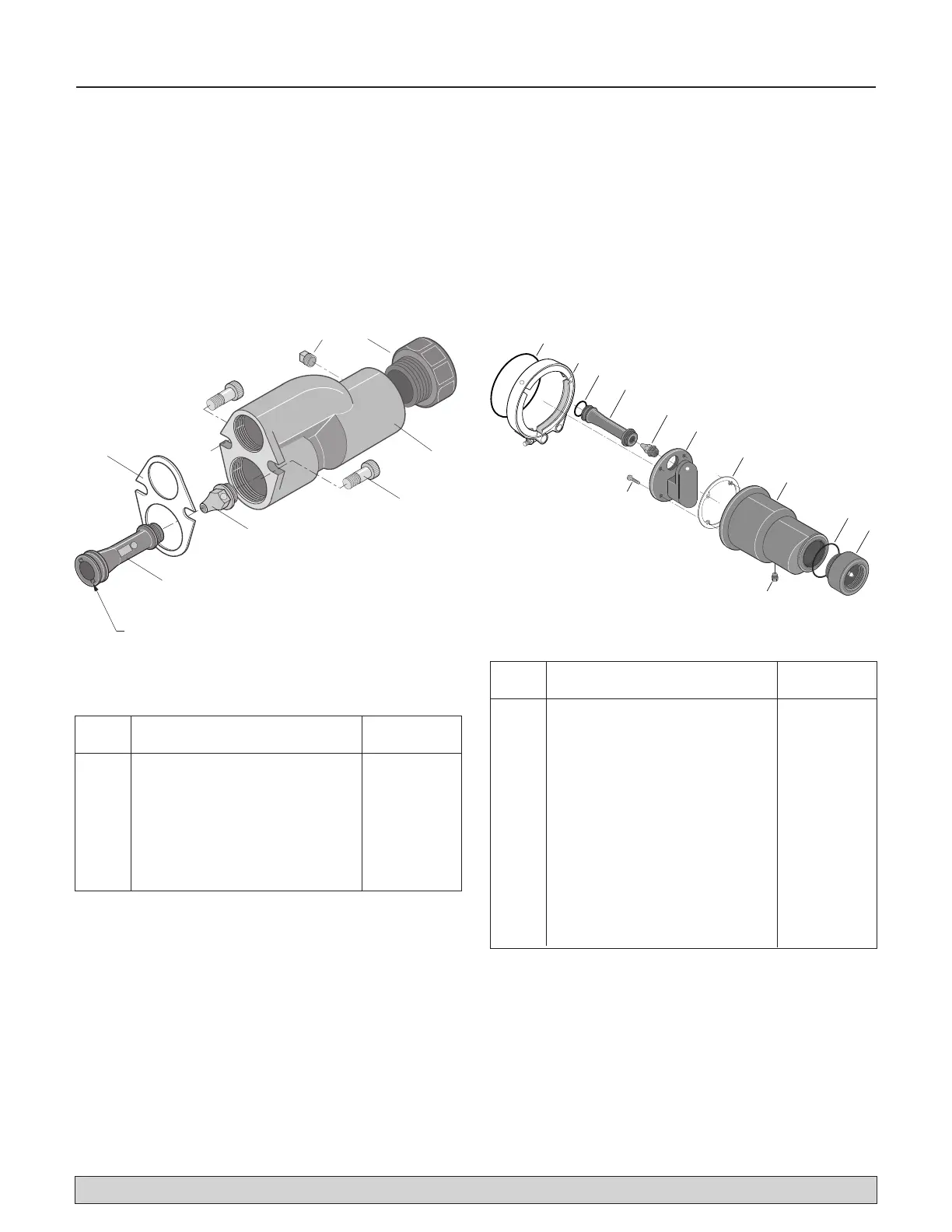

Shallow Well Installation
Ejector Package are available for either shallow well or
deep well operation. Pump owners manual describes
conditions that define shallow well and deep well oper-
ation. Read manual over carefully to determine your
pumping requirements. Note that the nozzle comes pre-
installed in ejector body and works with both shallow
well and deep well venturis.
PART
KEY DESCRIPTION NUMBER
1 Ejector Body N40-92
2 Nozzle (#51) N34P-41
3 Venturi, Shallow Well N32P-66B*
4 Gasket N20-25
5 Pipe Plug U78-56ZPS
6 Socket Head Capscrew (2 Req.) U30-961PS
7 Check Valve N212-12P
Shallow Well Kit for 4200 Series Pump
Kit FP4855
NOTE: Use care not to damage sealing face (marked “Surface B”
on drawing above) or internal leakage may occur.
* The 3/4 HP Pump uses shallow well venturi N32P-67B.
1
2
3
4
5
12
6
7
8
9
10
11
1722 0495
PART
KEY DESCRIPTION NUMBER
1 O-Ring, Jet Body U9-202
2 Clamp J19-6
3 O-Ring, Venturi U9-201
4 Venturi N32P-63
4 Venturi N32P-64
4 Venturi N32P-72
5 Nozzle (#51) J34P-41
5 Nozzle (#54) J34P-44
6 Insert, Jet Body N40-39P
7 Gasket J20-18
8 Jet Body N40-38P
9 O-Ring, Check Valve U9-226
10 Check Valve - Complete N166-5P
11 Pipe Plug - 1/8" NPT - Sq. Hd. WC78-41T
12 Screw - #10 - 16 x 1-1/8" Lg. (4 Req.) U30-742SS
Shallow Well Kit for 4300 Series Pump
Kit FP4875
