In-Hole anchoring kit

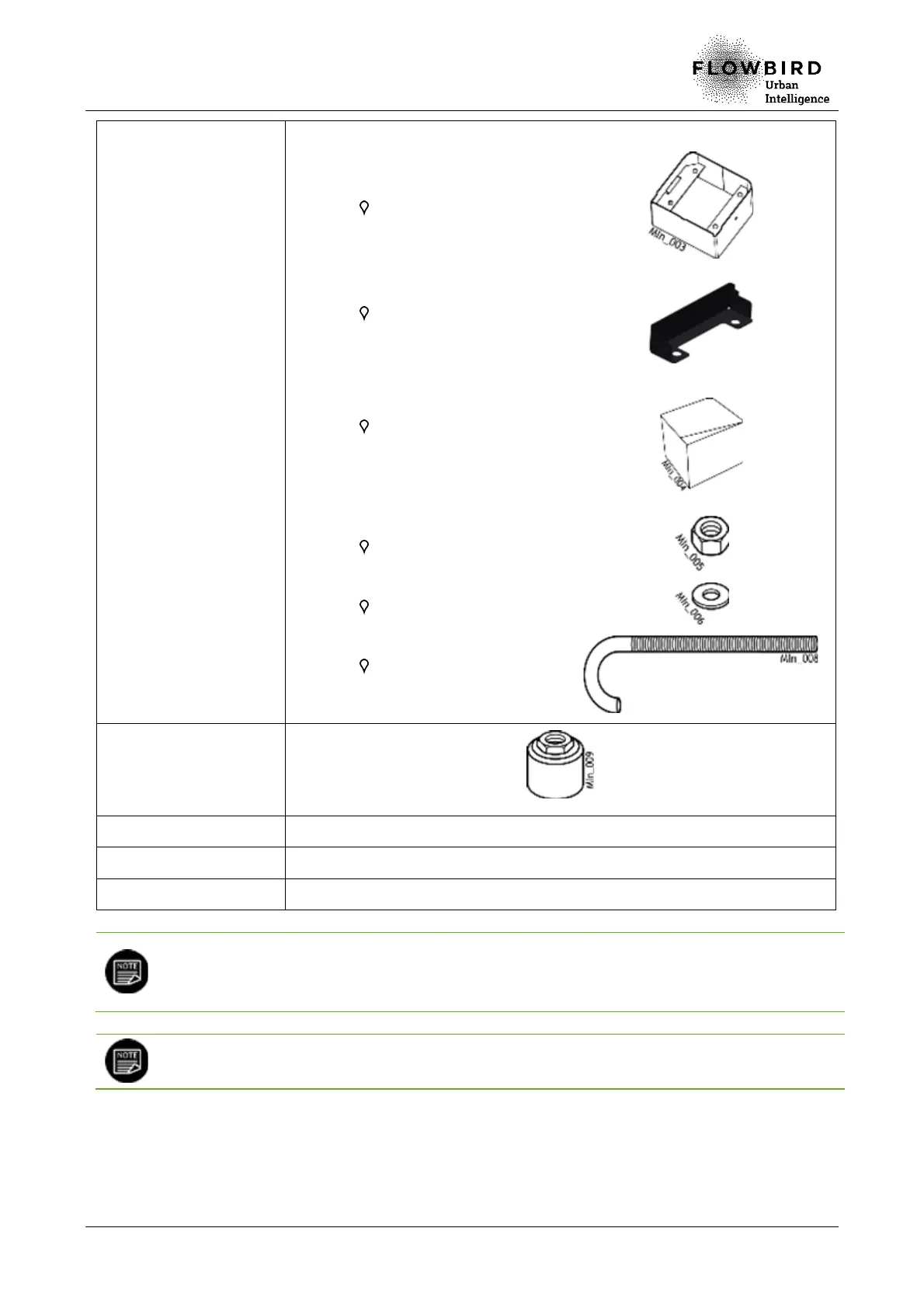

The anchoring kit includes the following elements:
a Large base
an anchoring
protective plate
an optional formwork
(useful for variable
height)
16 M16 nuts
4 M16 washers
4 M16 anchors
(length: 50 cm)
Removal protective
nut*
Brush
Cable-ties
Vacuum cleaner
For anchoring on flat ground, the chemical anchoring kit is not provided by Flowbird.
Flowbird recommends using a SPIT C-mixplus chemical anchoring kit.
Check the required drilling diameter depending on the type of chemical anchoring used.
*The removal protective nuts are not provided with the in-hole anchoring kit but with the
terminal.
