STRADA GENERATION3 – S5 - INSTALLATION MANUAL
18/66
6.2 Anchoring on flat ground
6.2.1 Recommendations regarding the ground
For optimal installation on level ground, Flowbird recommends the following:
a concrete substrate of C25/30 minimum quality,
a minimum concrete thickness of 50 cm on a minimum floor space of
60 cm x 60 cm,
a perfectly levelled surface: check the evenness of the ground with a spirit level.
6.2.2 Chemical anchoring on flat ground with Large base
This type of installation allows increasing the height of the terminal of 143mm but
WITHOUT respecting the the accessibility requirements of the EN 12414: 2020 norm.
Transfer collection trolley can only be used with a terminal installed with a full visible Large
pedestal.

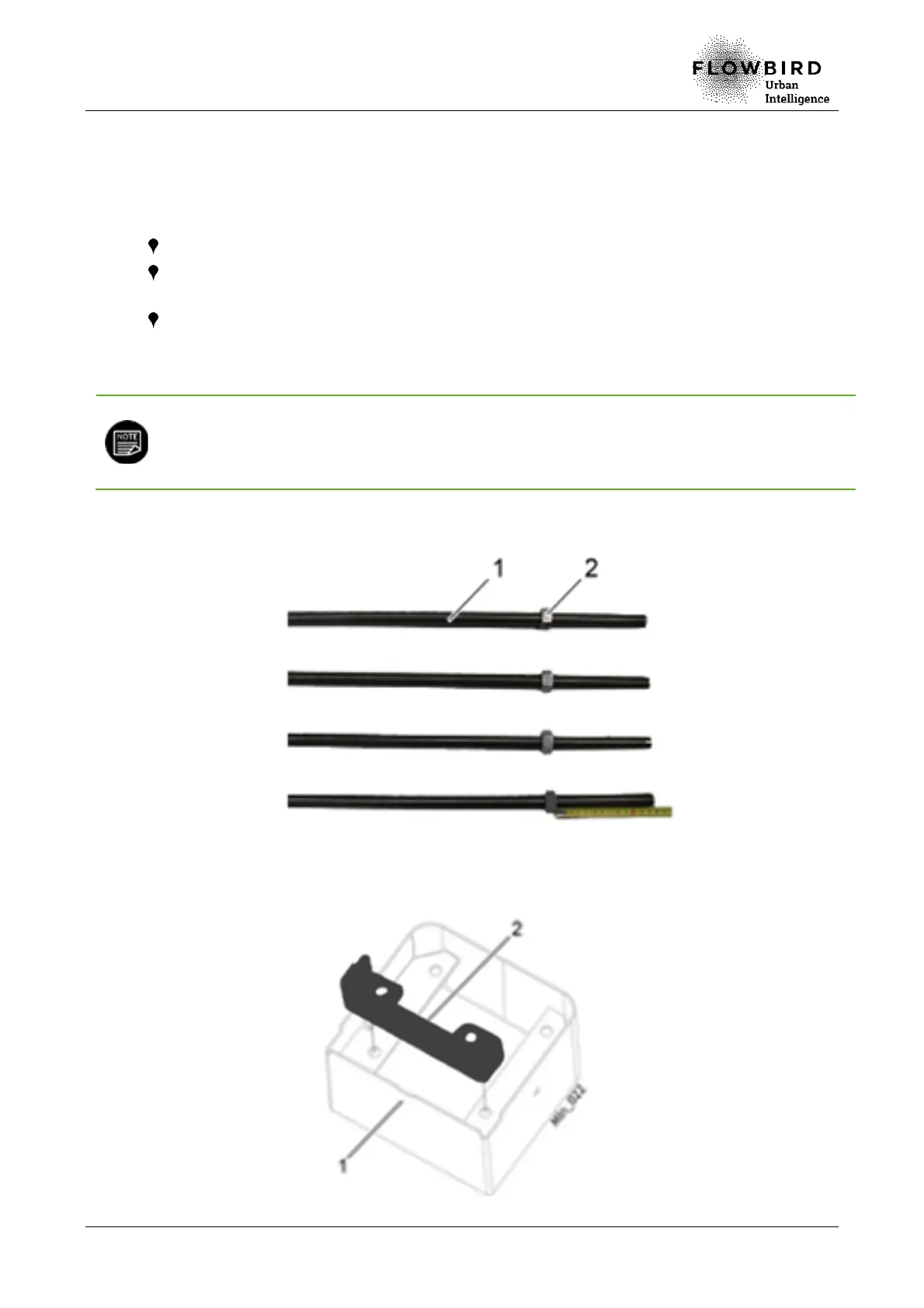

A. Screw a M16 nut (2) up to 9 cm from the end of each anchor rod (1).
Preparation of the threaded rods
B. Install the protective plate (2) in the base (1), against the front side.
