6.3 In-hole Anchoring
6.3.1 Earthwork on ground level
Dig a 60 x 60 x 60 cm hole and respect the terminal floor space requirements
1.Exterior finish (pavement,
concrete, asphalt …)
2.Ground 3.Concrete upper level

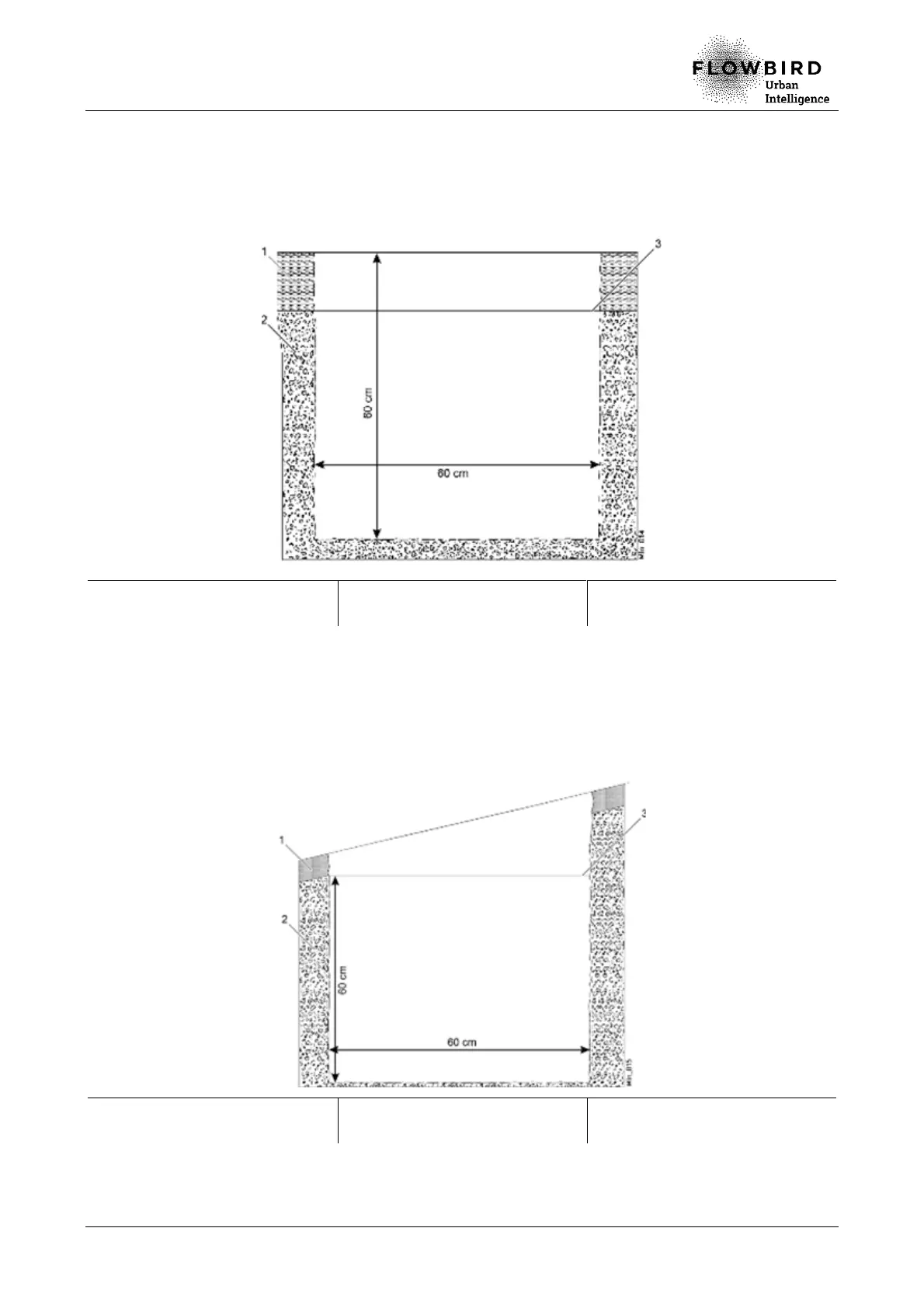

Sectional view of the anchoring hole
6.3.2 Earthwork on sloping ground
Dig a 60 x 60 x 60 cm hole (the depth must be at least 60 cm on the shortest side of the
slope) and respect the terminal floor space requirements.
1.Exterior finish (pavement,
concrete, asphalt …)
2.Ground 3.Concrete upper level
Sectional view of the anchoring hole
