STRADA GENERATION3 – S5 - INSTALLATION MANUAL
32/66
6.3.3 In-hole anchoring (minimum depth)
This type of installation allows respecting the accessibility requirements of the EN
12414:2020 2020 norm for any type of terminal.

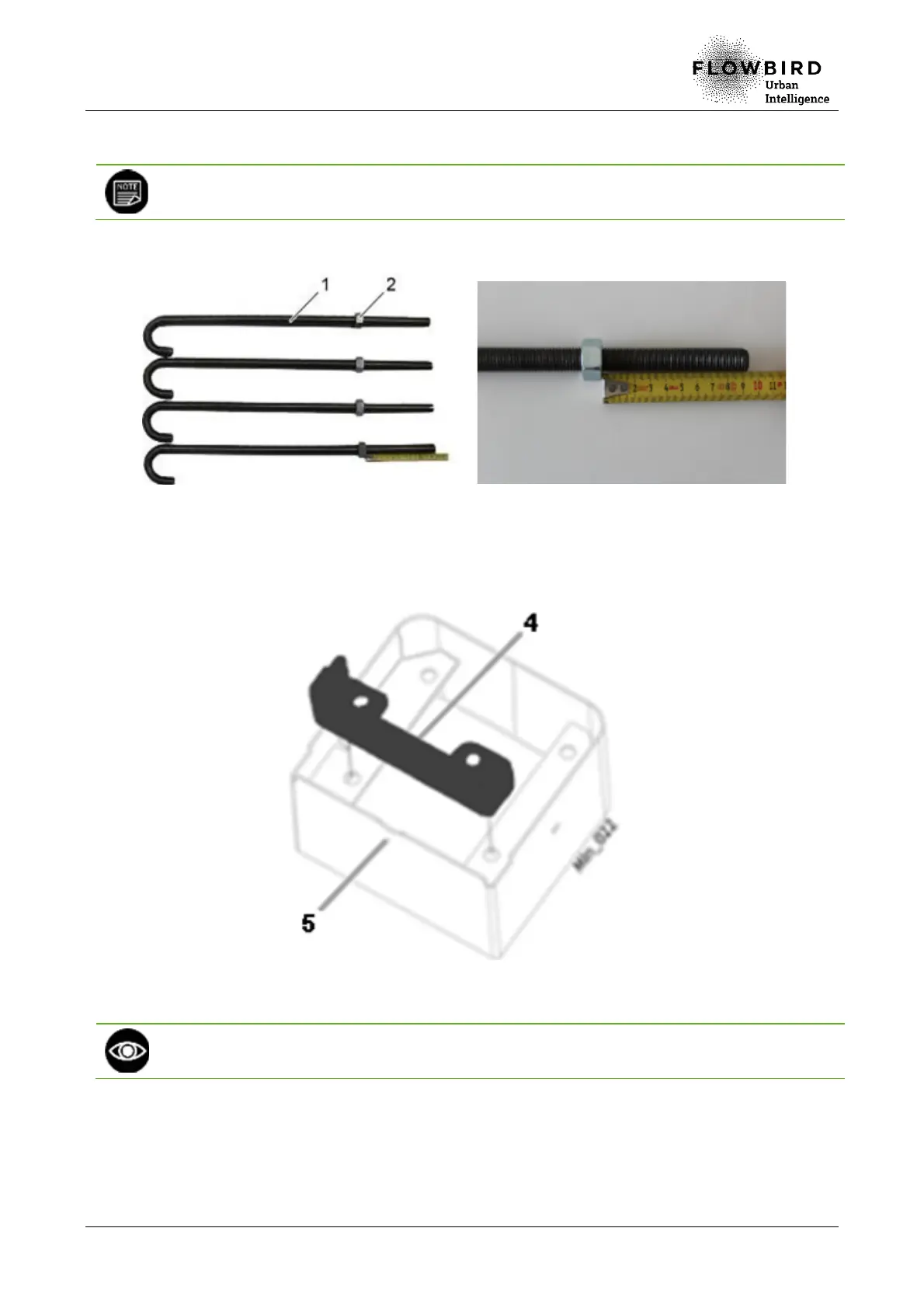

A. Screw a M16 nut (2) up to 9 cm from the end of each anchor rod (1).
Preparation of the anchor rods
B. Install the protective plate (4) in the base (5).
Protective of anchoring
When installing the protective plate, observe the orientation of the above illustration.
