STRADA GENERATION3 – S5 - INSTALLATION MANUAL
33/66
C. Insert the anchor rods (1) into the base (5) through the anchoring protection plate
(4).
D. Fix the rods with 4 M16 nuts (2) so that the ends of the rods are 9 cm +/- 1 cm
away from the anchoring brackets (3).

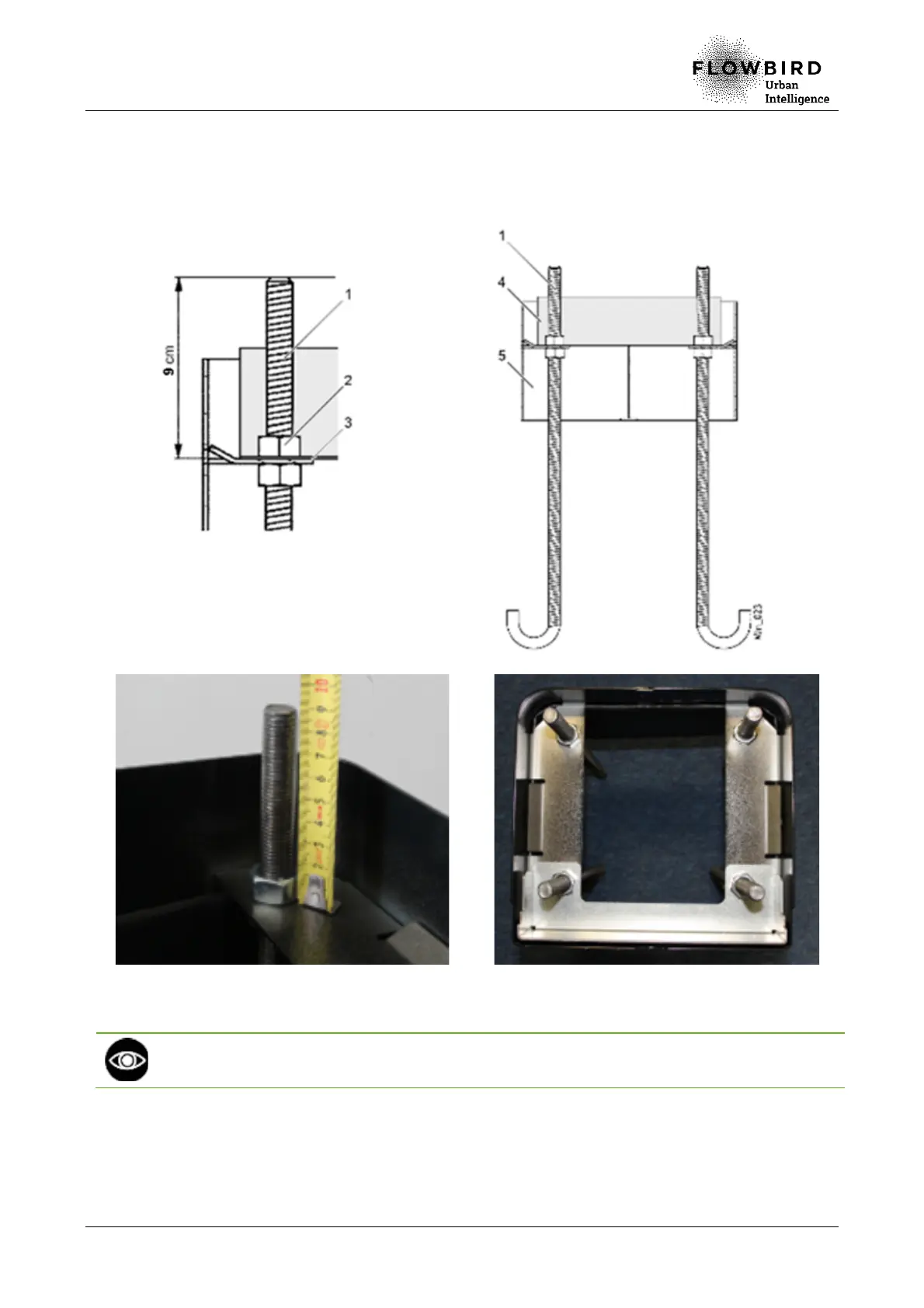

Fixing the anchor rods to the base
For a secure installation, respect the positioning of the nuts (9 cm +/- 1cm away from the
end of the anchoring rods).
E. Fill the hole with concrete (minimum quality C25/30) (1) to a height of 50 cm.
F. Lower the base by pushing the anchoring rods down into the concrete to make sure
that the upper part of the base (3) is aligned with the future finished floor (5).
To Next Page
