STRADA GENERATION3 – S5 - INSTALLATION MANUAL
34/66

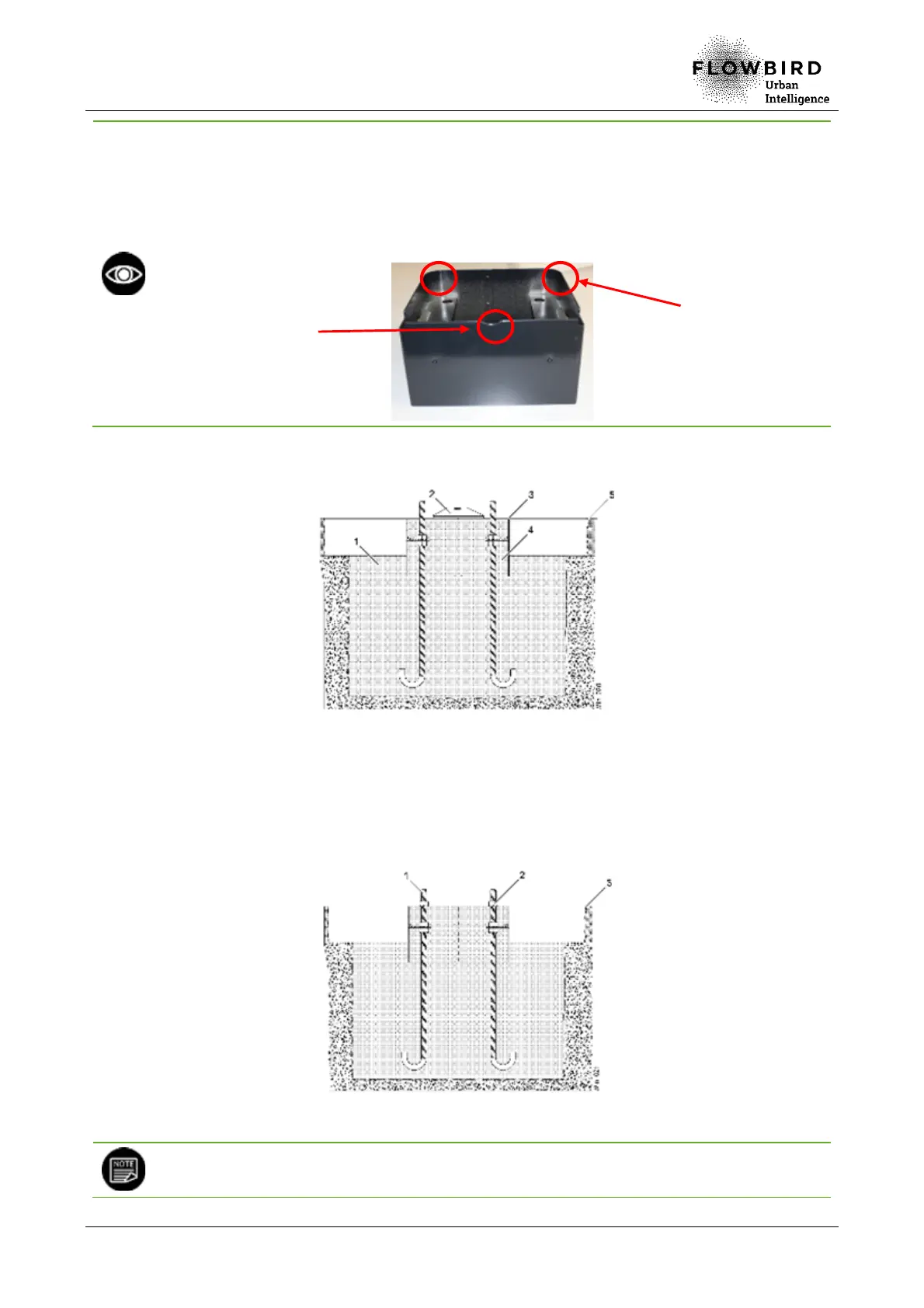

Respect the positioning: the front of the base must be placed in a way to respect the
orientation of the terminal to be installed.
The rounded edges correspond to the rear of the terminal. The notch corresponding to
the front of the terminal, must always be upward.
Check that the water drain holes (3) of the base are not clogged.
G. Check the horizontal alignment of the base with a spirit level (2).
H. Fill the base with concrete (4) up to the finished floor level (5).
Base in position before exterior finish
I. Respect the drying time recommended by the concrete supplier.
J. Carry out the floor exterior finish (if the finish is concrete or pavement, it is not
necessary to wait for the concrete to dry).
K. Screw 4 M16 nuts (2) on the anchoring rods (1) down to the ground level (3).
Installation of the lower nuts
These 4 nuts that allow the alignment of the terminal are called "lower nuts" in the rest
of this document.
terminal
