STRADA GENERATION3 – S5 - INSTALLATION MANUAL
35/66
6.3.4 In-hole anchoring (variable depth)
This type of installation allows increasing the height of the terminal AND still
respecting the accessibility requirements of the EN 12414: 2020 norme
for Strada and a EVOL & Strada PAL terminals.
For an installation at variable depth:
The necessity to use or not the formwork depends on the installation height.
The protective plate on the anchoring is mandatory.

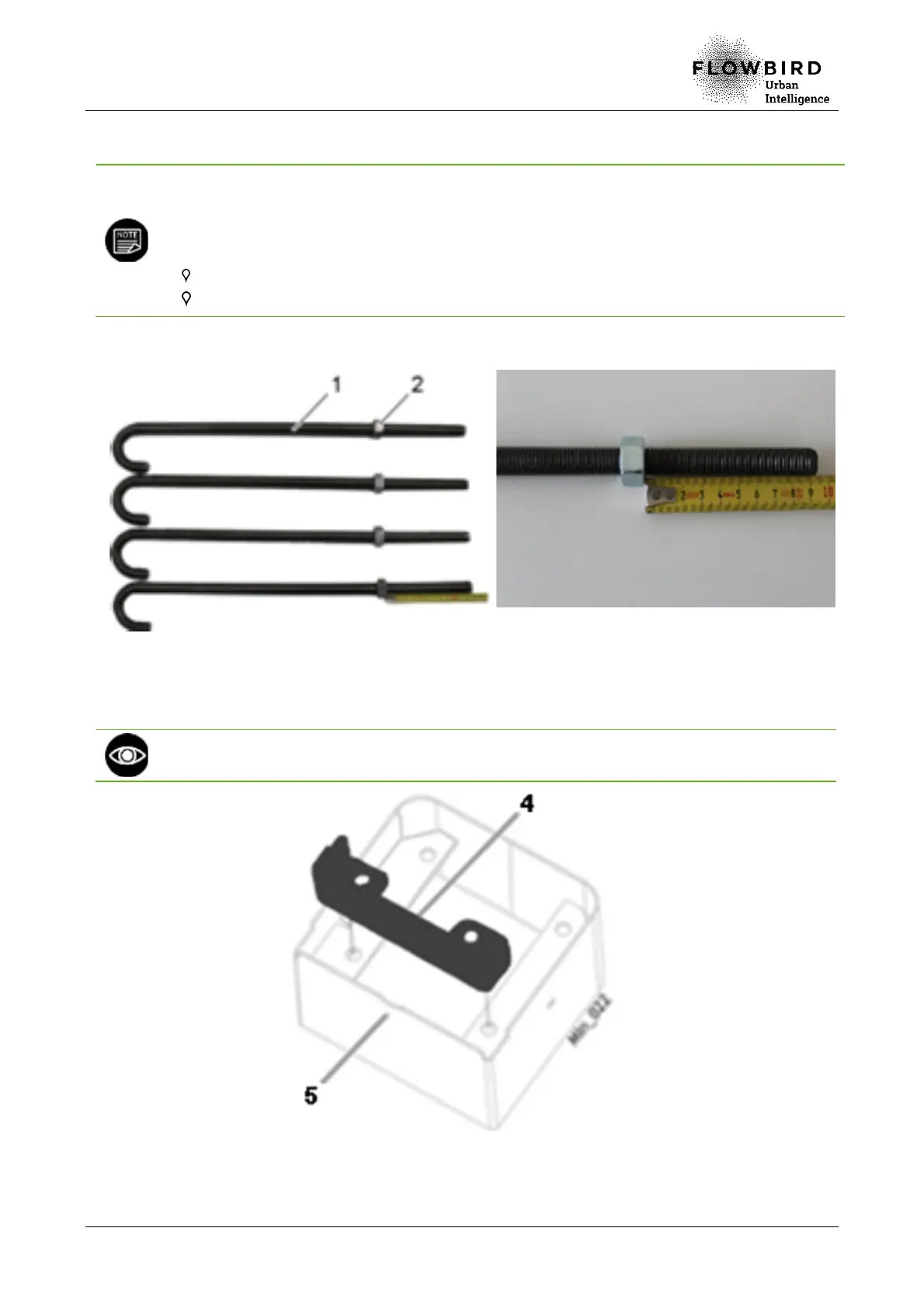

A. Screw a M16 nut (2) up to 9 cm from the end of each anchor rod (1).
Preparation of the anchor rods
B. Install the protective plate (4) in the base (5).
When placing the protective plate, respect the orientation shown in the illustration below.
Protective of anchoring
