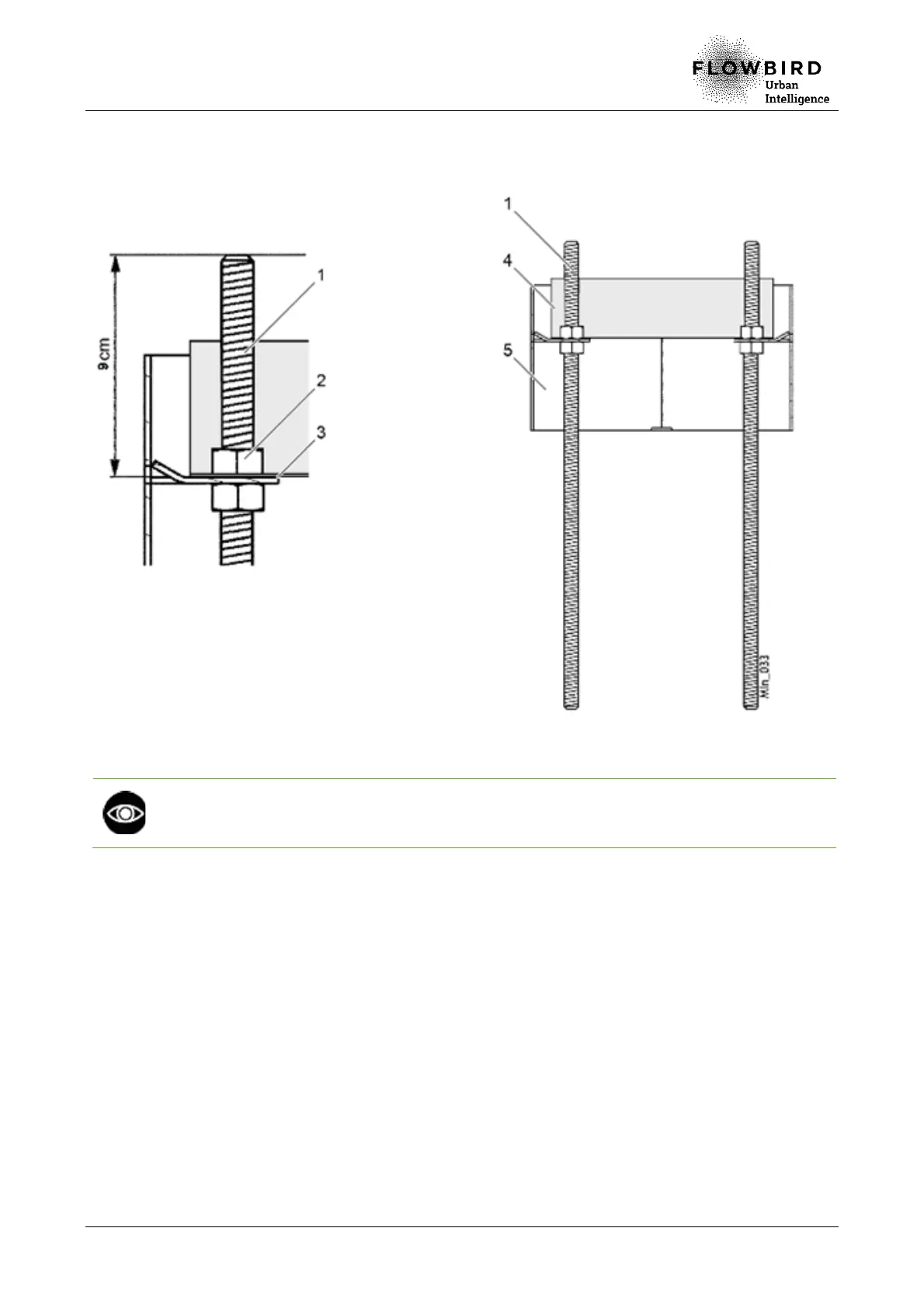

C. Insert the threaded rods (1) in the base (5) through the anchoring protective plate (4)
and fix the rods with 4 M16 nuts (2) so that the ends of the rods are 9 cm +/-1cm
away from the anchoring brackets (3).
Fixing the threaded rods to the base
For a secure installation, respect the positioning of the nuts (9 cm +/- 1cm away from the
ends of the anchoring rods) in order to prevent the rods to interfere with battery or
electrical equipment.
D. Identify the location of the centre of the future terminal respecting the terminal floor
space requirements.
