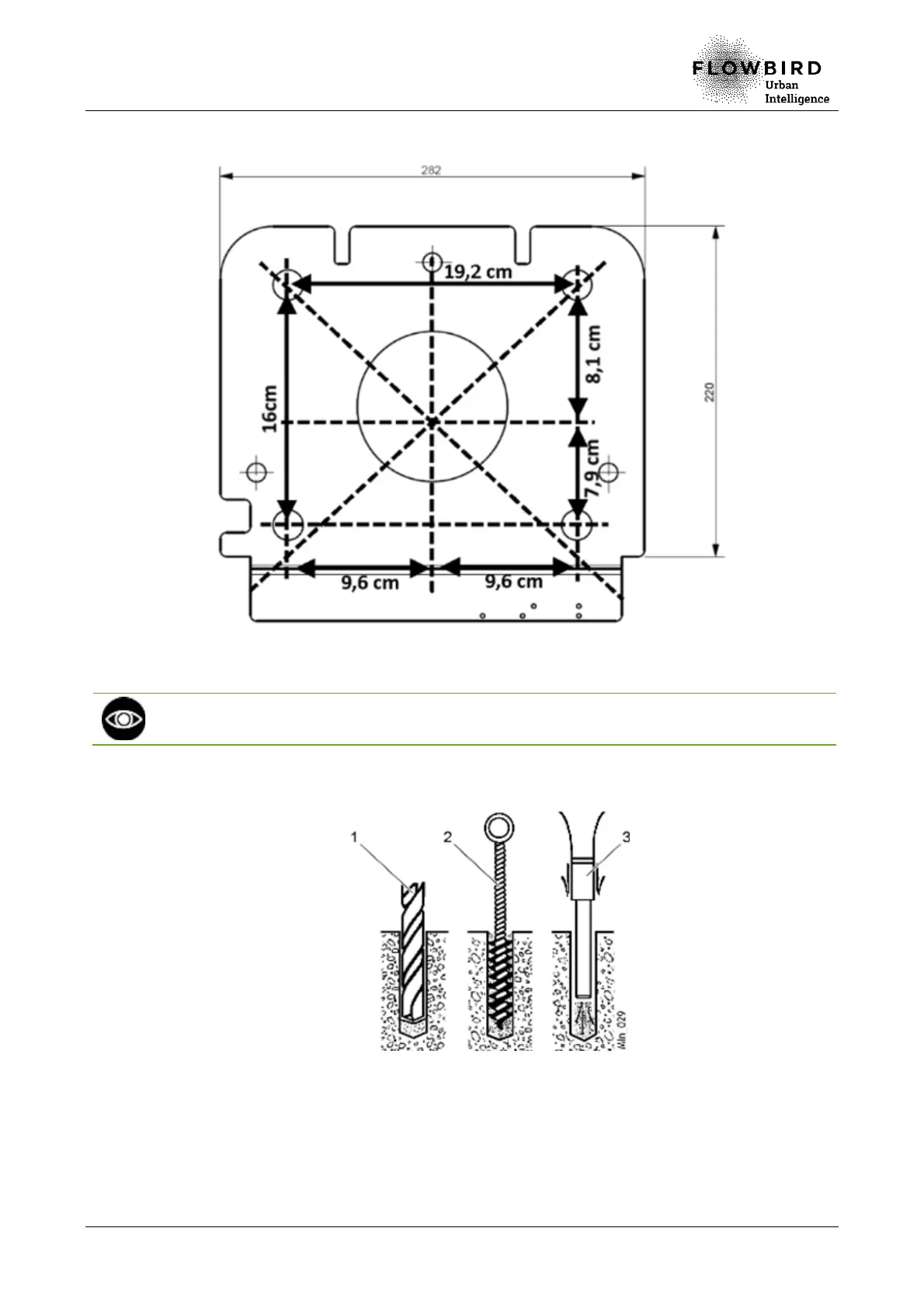

E. Drill 4 Ø20 holes in the ground to a depth of 15 cm as shown in the diagram below:
Front side of the terminal
Drilling template
Ensure that the drill is vertical to allow the correct installation of the terminal on the
threaded rods.
F. After drilling (1), clean the holes with a swab (2) and a blower (3) to remove impurities.
Cleaning the anchoring holes
G. Inject the chemical anchoring resin in the 4 holes.
H. Install the base equipped with the threaded rods into the holes, and check the
horizontal alignment of the base with a spirit level.
I. Check that the threaded rods are 19cm +/-1cm above the floor.
