STRADA GENERATION3 – S5 - INSTALLATION MANUAL
21/66
J. Let dry according to the user guide of the chemical anchoring kit.

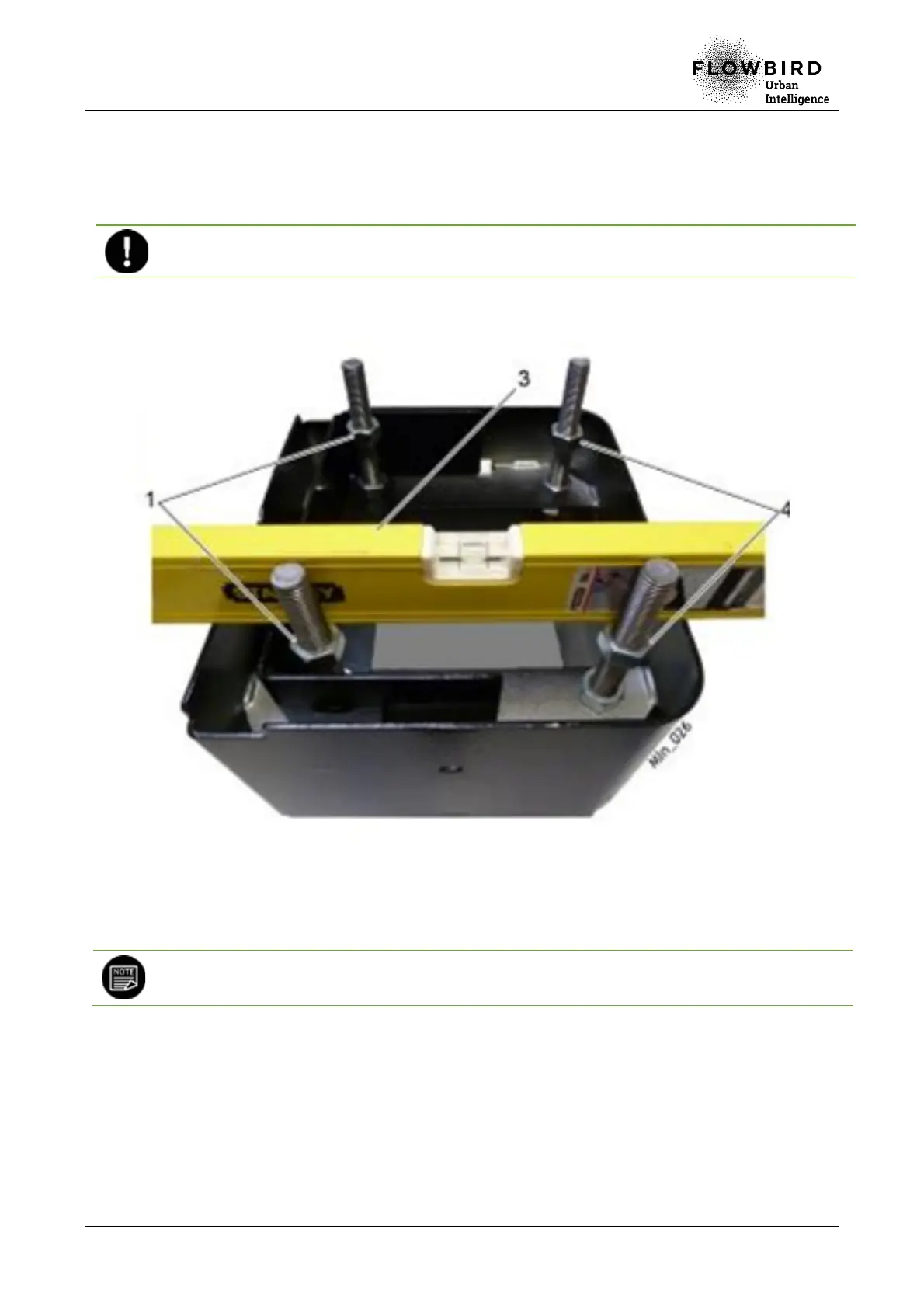

K. When the chemical anchoring is dry, screw 4 M16 nuts (1/4) on the threaded rods
aligned with the base top and check the horizontal alignment with a spirit level (3).
The terminal is installed on the nuts, not on the base.
Installation of the lower nuts
These 4 nuts that allow the alignment of the terminal are called "lower nuts" in the rest of
this document.
