6.2.3 Chemical anchoring on flat ground with Medium base
This type of installation allows increasing the height of the terminal of 77mm to align with
Strada Evolution 2 but WITHOUT respecting the accessibility requirements of the EN
12414: 2020 norm.
Transfer collection trolley can only be used with a terminal installed with a full visible Large
pedestal.
A. Identify the location of the centre of the future terminal respecting the terminal floor
space requirements or using the optional drilling template.

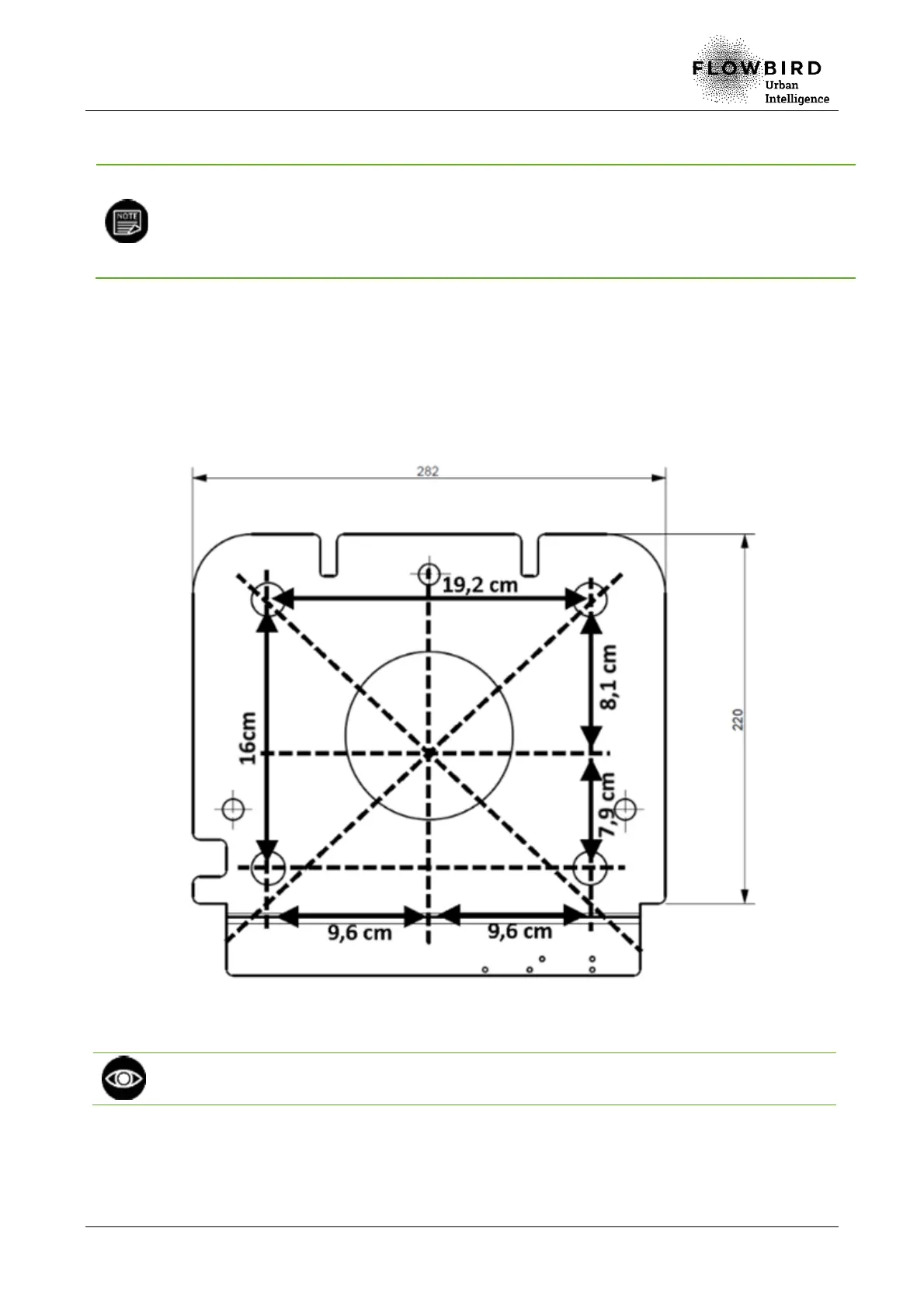

B. Drill 4 Ø20 holes in the ground to a depth of 21 cm as shown in the diagram below:
Rear side of the terminal
Front side of the terminal
Drilling template
Ensure that the drill is vertical to allow the correct installation of the terminal on the
threaded rods.
