STRADA GENERATION3 – S5 - INSTALLATION MANUAL
23/66

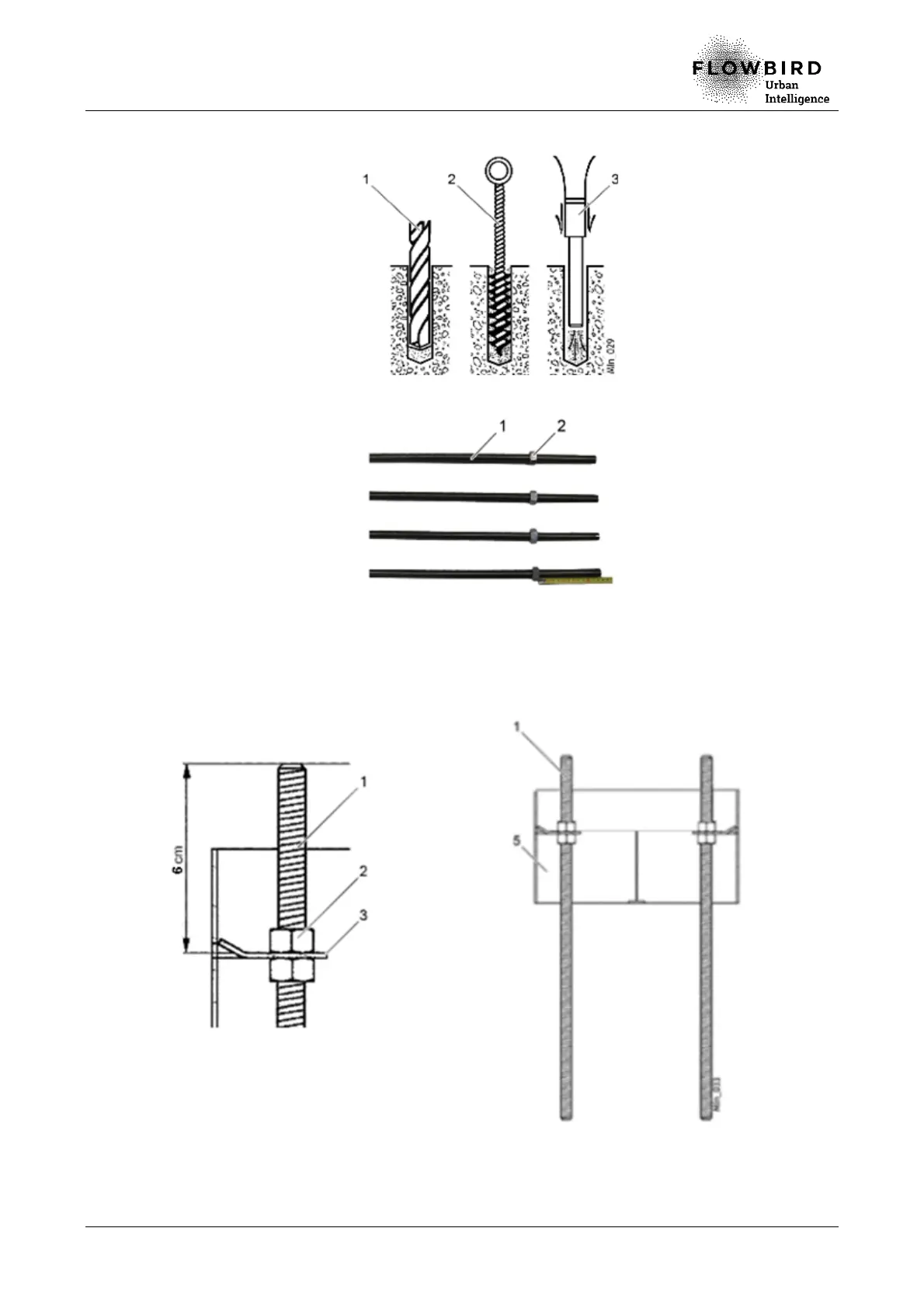

C. After drilling (1), clean the holes with a swab (2) and a blower (3) to remove impurities.
D. Screw a M16 nut (2) up to 9 cm from the end of each anchor rod (1).
Preparation of the threaded rods
E. Insert the threaded rods (1) in the base (5) or in the optional drilling template and fix
the rods with 4 M16 nuts (2) so that the ends of the rods are 6 cm +/-0.5cm away
from the anchoring brackets (3).
Fixing the threaded rods to the base
