STRADA GENERATION3 – S5 - INSTALLATION MANUAL
37/66

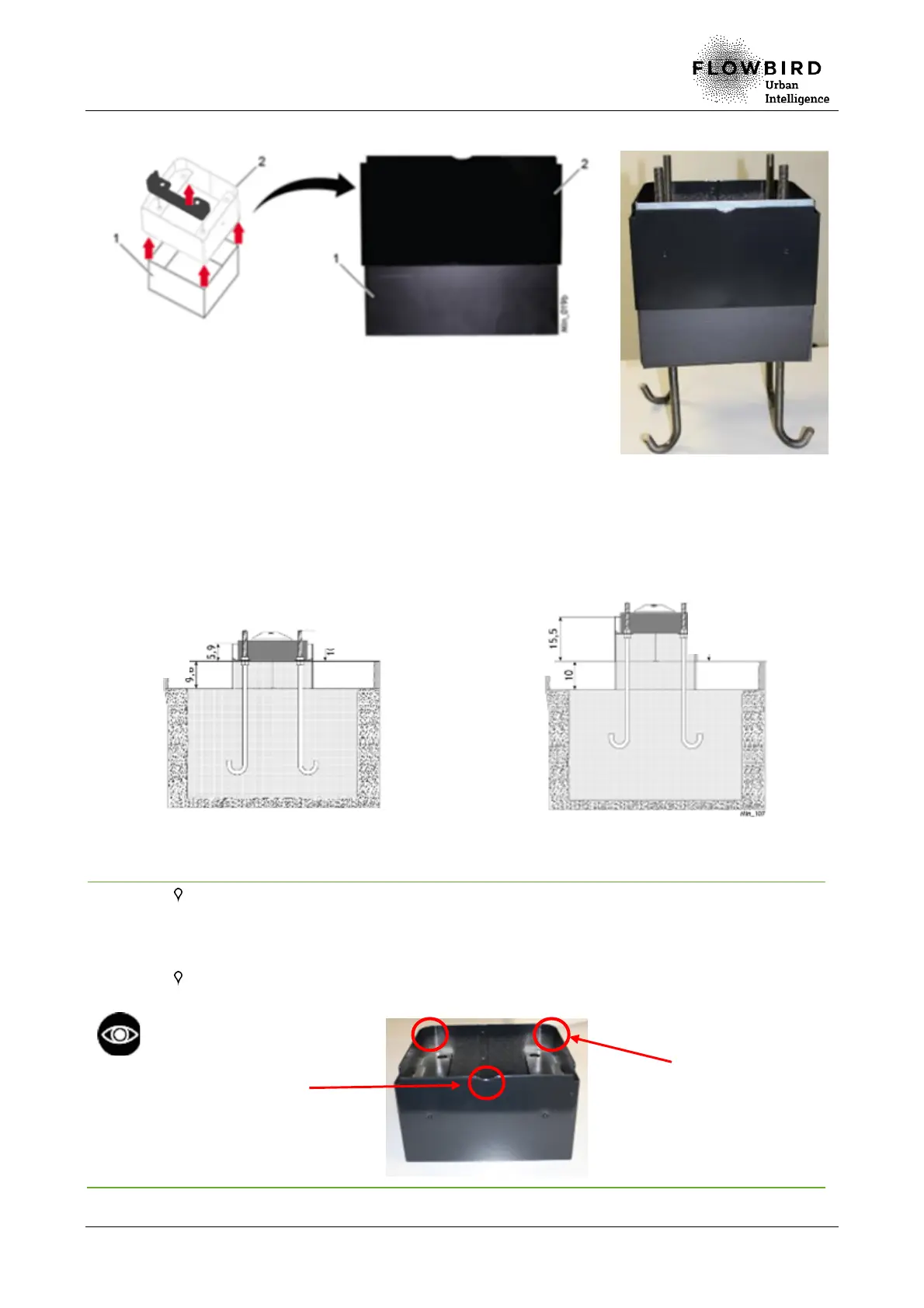

D. Install the formwork (1) into the base (2).
Installation of the formwork into the base
E. Fill the hole with concrete (minimum quality C25/30) (1) to a height of 50 cm.
F. Lower the base (3) with its formwork (2) to the desired height (see figure below) by
pushing the anchoring rods down into the concrete.
Maximum height to respect the accessibility
requirements of the EN 12414: 2020 for Strada
Maximum height
Respect the positioning: the front of the base must be placed in a way to respect
the orientation of the terminal to be installed. The rounded edges (2) correspond
to the rear of the terminal. The notch (1), corresponding to the front of the terminal,
must always be upward.
Check that the water drain holes (3) of the base are not clogged.
