STRADA GENERATION3 – S5 - INSTALLATION MANUAL
51/66

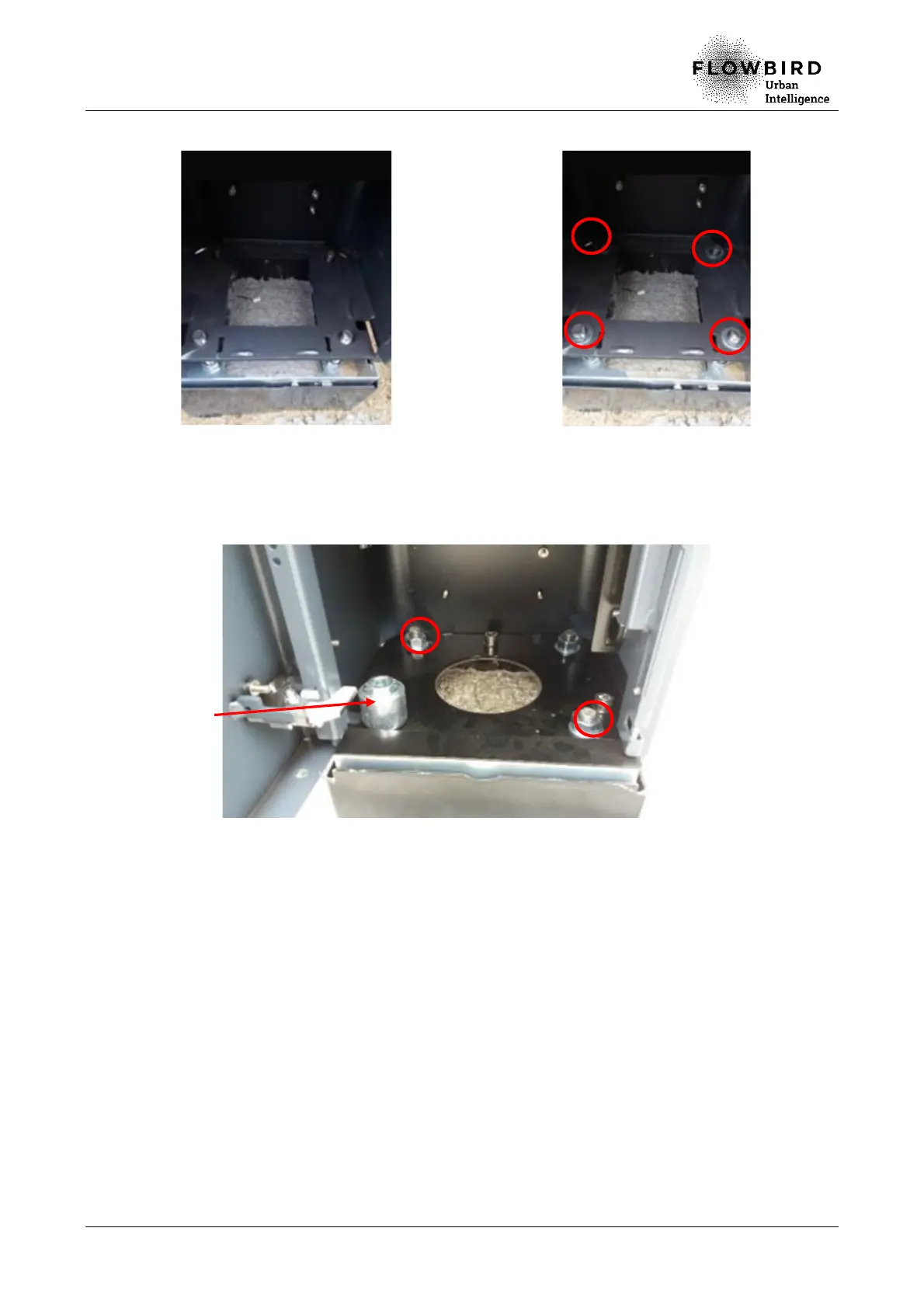

D. Position the 4 washers on the threaded rods.
E. Position the removal protective nuts in place of the upper nuts without tightening
them, the first one on the front left threaded rod, the second one on the rear right
threaded rod.
F. Position the 2 M16 nuts on the other threaded rods, without tightening them.
Levelling
A. Place a spirit level on the rear side of the terminal to check the verticality of the
terminal in the forward / backward direction.
B. Place a spirit level on a lateral side of the terminal to check the verticality of the
terminal in the left/ right direction.
C. If the terminal is not completely vertical: uninstall it, use the 4 lower nuts to adjust its
positioning, and restart the installation procedure.
Fixing
A. Once the terminal is correctly levelled: tighten the nuts (1) on the threaded rods
(torque wrench 24) to a tightening torque of 20 daN/m.
B. Tighten the removal protective nuts with a torque wrench 24 to the breaking point.
