FLOWMAX Technologies FLOWMAX-120 - Water Circuit

TECHNICAL CHARACTERISTCS
13

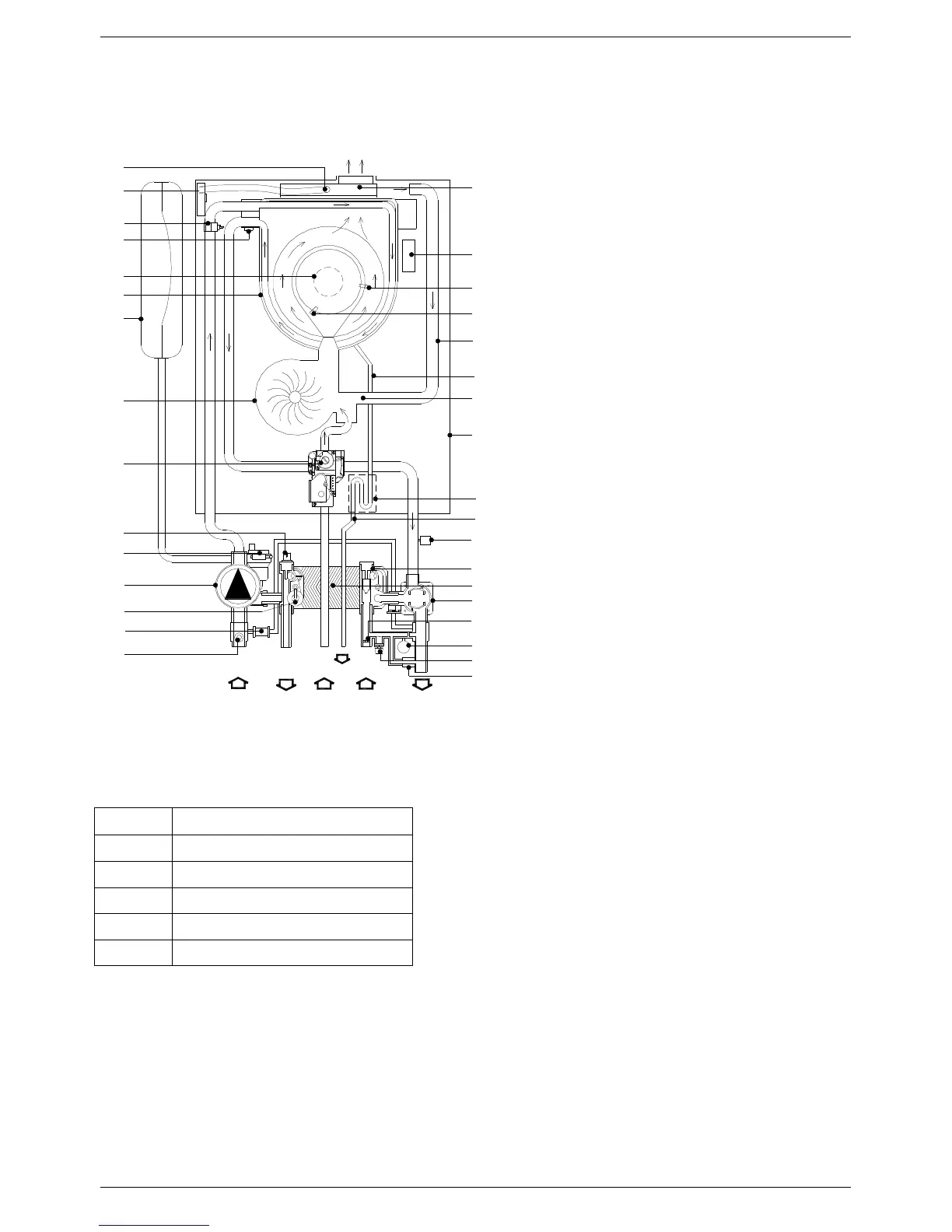

2.4 Water circuit
LEGEND
1. PRIMARY CONDENSING HEAT
EXCHANGER
2. PREMIX BURNER UNIT (GAS
MANIFOLD+BURNER)
3. CONDENSATE DRAIN PIPE
4. IONISATION ELECTRODE
5. IGNITION ELECTRODE
6. FAN
7. VENTURI
8. IGNITION TRANSFORMER
9. ELECTRONIC GAS VALVE
10. SAFETY VALVE 3/4 "
11. AUTOMATIC AIR VENT VALVE
12. HEATING SAFETY THERMOSTAT
13. HEATING SENSOR
14. PUMP WITH AIR VENT
15. WATER PRESSURE SWITCH
16. FLUE HOOD
17. SAFETY THERMO FUSE
18. EXPANSION VESSEL
19. D.H.W. SENSOR
20. CONDENSATE TRAP
21. WATER PRESSURE GAUGE
22. AUTOMATIC BY-PASS
23. CONDENSATE DRAIN PIPE
24. SYSTEM DRAIN VALVE
25. ROOM SEAL CHAMBER BACK SIDE
26. FLOW LIMITER
27. ELECTRONIC FLOWSWITCH
28. DHW EXCHANGER
29. DIVERTER VALVE ACTUATOR UL/CSA
30. FILLING TAP
31. AIR PRESSURE SWITCH
32. NO-RETURN VALVE
LEGEND
HI HEATING INLET
HO HEATING OUTLET
G
GAS
CWI
COLD WATER INLET
HWO
HOT WATER OUTLET
SC
CONDENSATE DRAIN
3
19
22
21
SC
23
25
18
17
2
16
19
5
4
6
9
20
11
10
24
14
15
27
29
28
13
1
12
7
30
32
26
HWO CWIG
31
8
HI HO
