MAINTENANCE INSTRUCTIONS
65
M2
FILLING LOOP
REMOTE DHW CYLINDER FLOW
REMOTE DHW CYLINDER RETURN
MAX. LENGHT 8 mt.
HOT WATER SENSOR LEAD
PRINTED CIRCUIT BOARD CVI-M SM20021

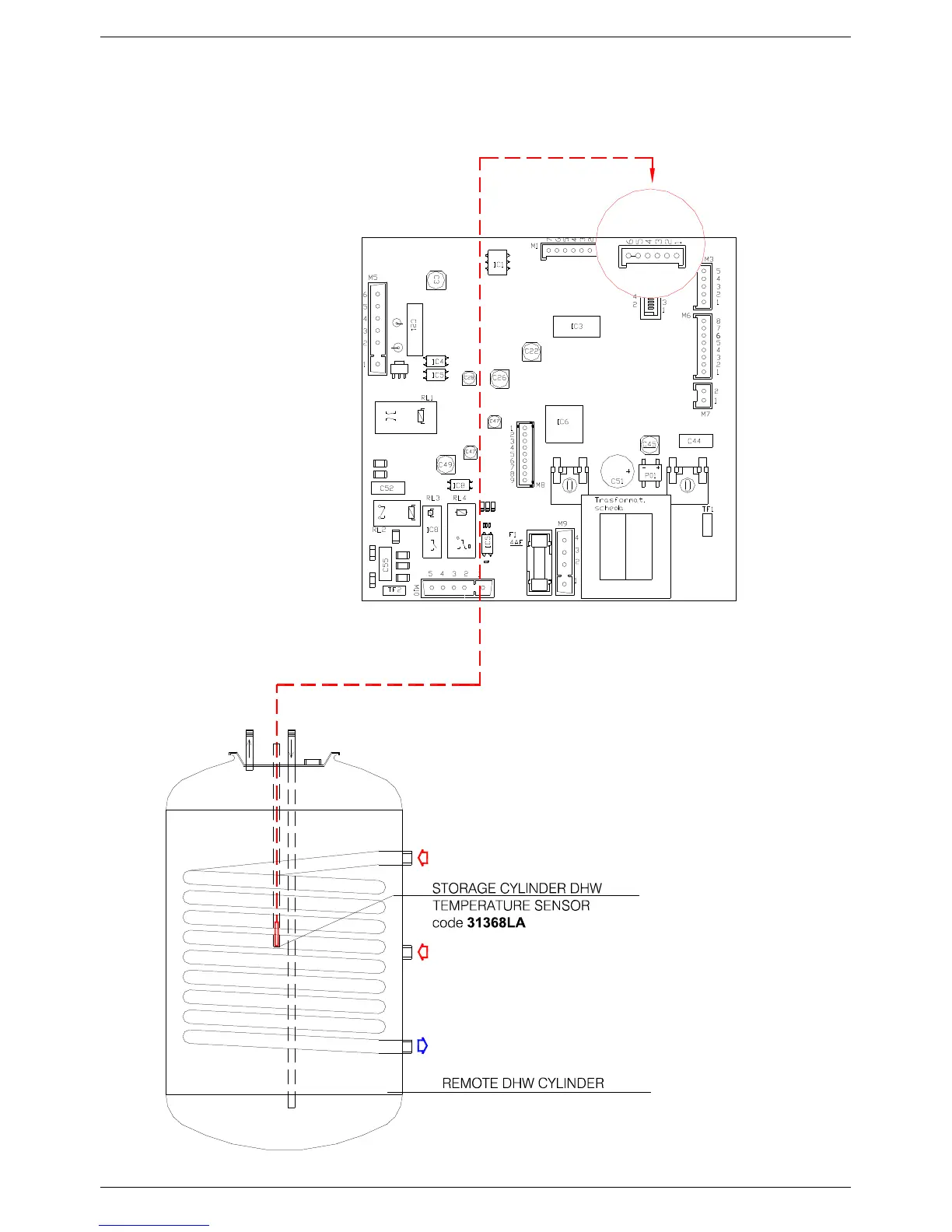

6.9 D.H.W. Sensor connection
Fig. 1
