FLOWMAX Technologies FLOWMAX-120 - 6.10 Troubleshooting

MAINTENANCE INSTRUCTIONS
62
Outside
temperature
sensor (option)
Terminal block
REMOTE "OPEN THERM"
Zone valve management +
option remote controller board

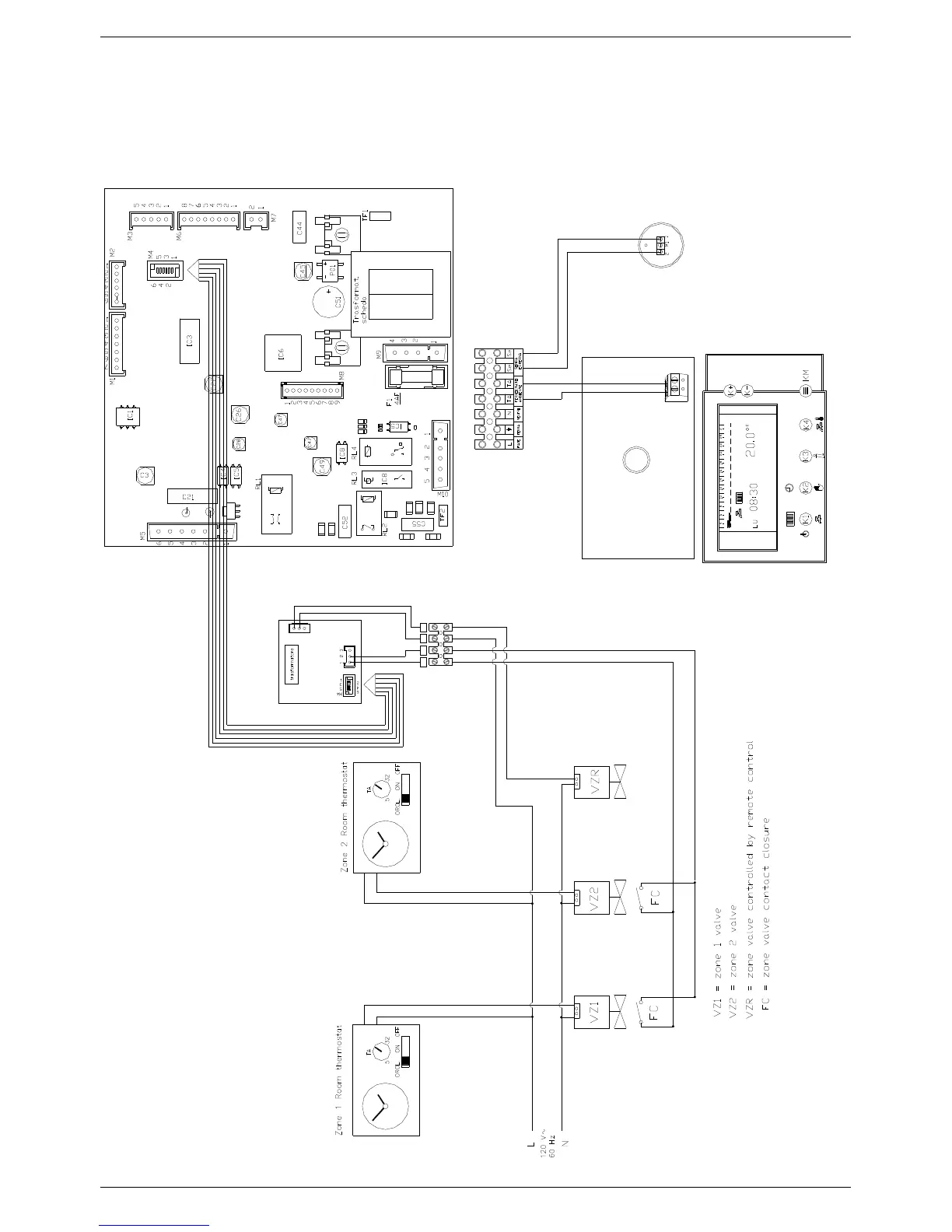

Remote control and zone valves wiring
For the installation of a zone valve p.c.b, it is necessary to access the main p.c.b for electrical connection (see 6.3
“Accessing the water heater” ) and to activate the parameter no. 16 (see 5.1 “Parameters table”).
