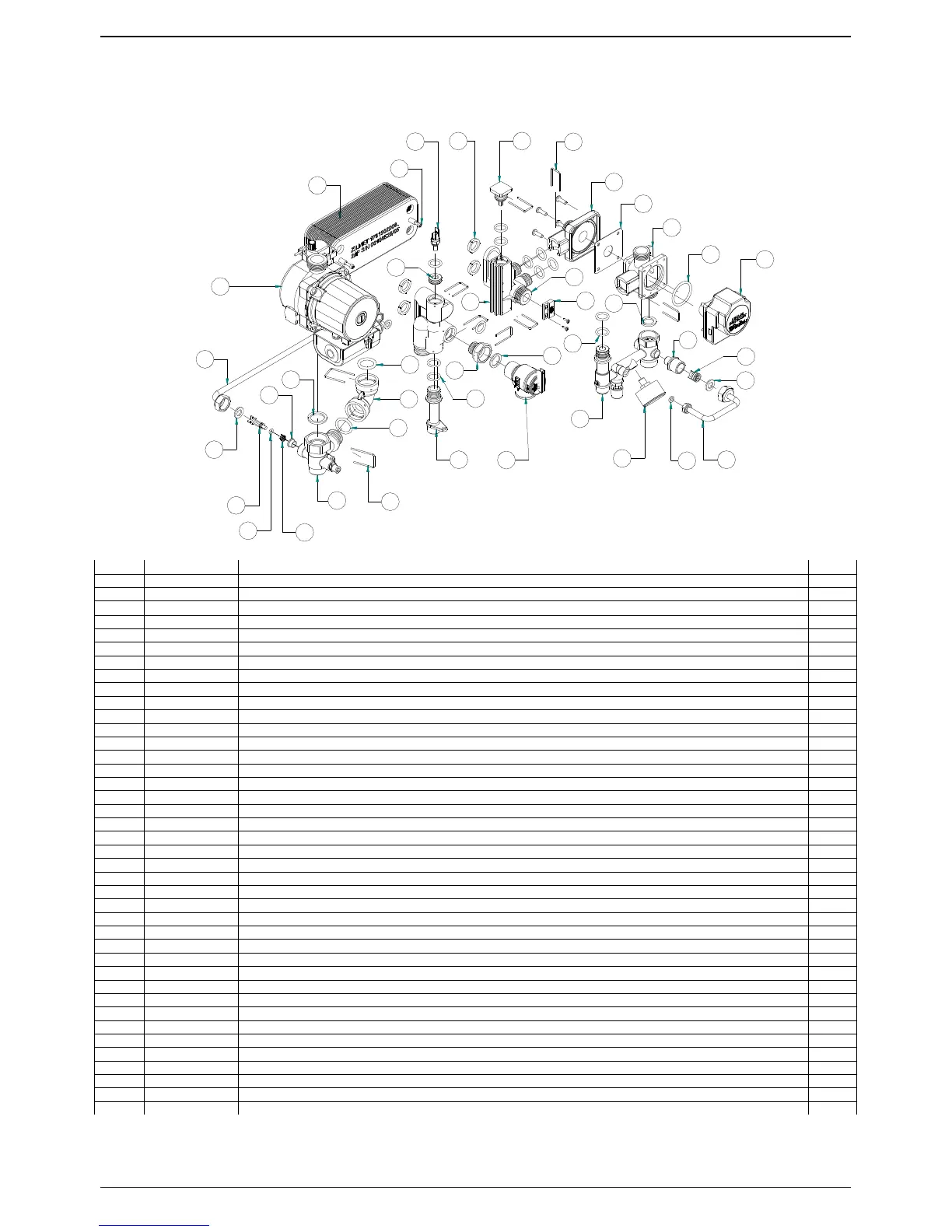

FLOWMAX Technologies FLOWMAX-120 - Page 82

PARTS LIST
78
33
9
4
39
5
35
34
27
15
21
28
3
22
18
29
14
2
19
1
32
7
12 25
20
30
11
26
13
38
9
37
23
10
8
6
24
16
31
31
17
14
36
Multiplex FLOWMAX
N.
CODE
DESCRIPTION
Qt.
1 30-000-15 PLATE EXCHANGER 28 P 1
2 24060LA PUMP STAR S 21 KU RSL-PL6 UL/CSA 1
2
25-00274 PUMP UPS 15-58 CACAO ETL MOLEX-PN98282128
1
3 26127LA PUMP MANIFOLD – M.PLEX 2006 1
4 26134LA D.H.W. OUTLET CONNECTION - INSTANTANEOUS M.PLEX 06 1
5 26283LA D.COLD WATER/HTG FLOW CONNECTION W/N-R.V. M.PLEX 1
6 31428LA FLOWSWITCH MICRO LEAD 1
7 33030LA PUMP CONNECTION BODY SENSOR HOLDER – M.PLEX 2006 1
8 43001LA WASHER D.23.5x17x2 3/4" -AFM34 1
9 43002LA WASHER D.18.5x10.2x2 1/2" -AFM 34 2
10 43007LA WASHER D.11.5x6x2 1/8" -AFM34 1
11 43135LA DIVERTER VALVE FLANGE WASHER – M.PLEX NYLON 66 1
12 43139LA PLATE EXCHANGER O-RING EPDM 70 SH PEROX BL.-M.PLEX 4
13 43145LA DIVERTER VALVE O-RING M.PLEX 1
14 43150LA OR MULTIPLEX EPDM ORM 14X30 10
15 43151LA BY/PASS REGULATOR EPDM O-RING 1
16 43159LA WASHER EPDM 80 SH M.PLEX 16x24x2,5 3/4" 1
17 43208LA WASHER 23x30x3sp EPDM 80sh 1" 1
18 43248LA O-RING 4081 EPDM Ø18,68X3,53 70SH 1
19 43276LA O-RING 17,00x4 EPDM 1
20 54022LA ZINC-PLATED STEEL FIXING CLIP MULTIPLEX 7
21 54023LA BY PASS SPRING MULTIPLEX - STAINLESS STEEL 1
22 54032LA FIXING CLIP - STAINLESS STEEL 2
23 56087LA CL 2510 1/4"-1/2" CONNECTION 1
24 56091LA NIPPLES 3/4"SAFETY VALVE CONN. 1
25 64066LA FLOWSWITCH/PUMP CONNECTION CAP MULTIPLEX 1
26 64068LA 3-WAY VALVE BODY-CENTRAL SECTION M.PLEX 1
27 64075LA BY PASS MULTIPLEX 1
28 64106LA BY-PASS BUSH 1
29 64123LA PUMP MANIFOLD CONNECTION BEND 1
30 64126LA DIVERTER VALVE BODY BACK PC ZYTEL M.PLEX 1
31 64127LA FLOWSWITCH GROUP - INSTANT. MOD . 1
32 73507LA D.H.W.-HEATING 1/8" WHITE SENSOR 1
33 83546LP PIPE D.8 BY-PASS 1
34 83965LP PIPE D.8 N.RET.VALVE FLOW 1
35 25-00196 WATER PRESS.GAUGE 1
36 89134NA SCREW 5x20 8.8 TCEI 5931-912 1
37 96018LA NON-RETURN VALVE C014-1514214 1
38 96073LA DIVERTER VALVE ACTUATOR 1
39 25-00274 SAFETY RELIEF VALVE 3/4"M-3/4"F 30 psi 1
