i)
Continue
to
disassemble
the
impellers
by
repeating steps c) and d) until all impellers [2200]
have been removed from the shaft.
In case of double suction pump (DMXD and
DMXDH), remove crossover sleeve [2450] after the
first stage impeller is removed by applying heat.
6.6.9
Impeller
ring
removal
Remove impeller rings by removing the set-screws
[6570] and machine off.
6.6.10
Parting
flange
gasket
Remove all traces of old gasket [4590] material.
When using any tool to surfaces remove gasket
material, do not gouge machined surfaces. Do not
reuse the gasket once the casing is opened. Use only
Flowserve recommended replacement materials.
6.7
Examinatio
n
of
parts
6.7.1
Inspection
and
renewal
of
parts
a)
Having
completely
dismantled
the
rotor,
check
the shaft for runout using "V" blocks or rollers
placed under the normal running areas. Runout
not to exceed 0.050 mm (0.002 in.) TIR.
b)
Wire-brush the
pump
parts
thoroughly.
Clean
off
all scale, carbon etc. Examine parts for wearing
corrosion and erosion.
c)
Check
throttling
sleeve,
center
sleeve
and
crossover sleeve (if supplied) for wear. Replace if
required.
d)
The
casing
ring/impeller rings
are
renewable and
should be replaced when badly grooved, and/or
when the pump performance does not meet the
system requirements. Whenever it becomes
necessary to replace either wearing ring, both
rings involved (casing ring and impeller ring)
must be ordered and replaced as they are
furnished standard size only.
If new casing rings are used, make sure that they
seat in both the upper and lower half casing and
that the anti-rotation device is properly located in
its respective lower half casing fit. The use of a
scraper on the ring to casing fit will help to fit the
ring to the casing.
e)
Using
a
torch could
change the
metallurgy of
the
rings if too much heat is applied. Removing
impellers with torch is acceptable but putting on
new impeller rings shall be done with oven
instead of torch.
6.7.2
Dynamic-balance
impeller
Whenever an impeller is tampered with, (i.e. new
impeller, wear rings installed etc.) the impeller must
be dynamically balanced before being reassembled
to shaft.
Dynamic balance shall be performed on a suitable
balancing machine by trained personnel.
Two balance planes shall be used and located
equidistance as possible from the center of gravity of
the impeller.
The maximum allowable unbalance at each of the
two planes shall be calculated as follows:
U =4 W / N or .01 oz-in whichever is greater.
U = Unbalance per plane oz-in
W = Impeller weight per plane lb.
Usually 1/2 the total impeller weight.
N = Operational rotational speed RPM
Metal shall be removed from the impeller shrouds
during the balancing operation in accordance with the
attached sketches until the impeller is within
acceptable tolerance limit of unbalance.

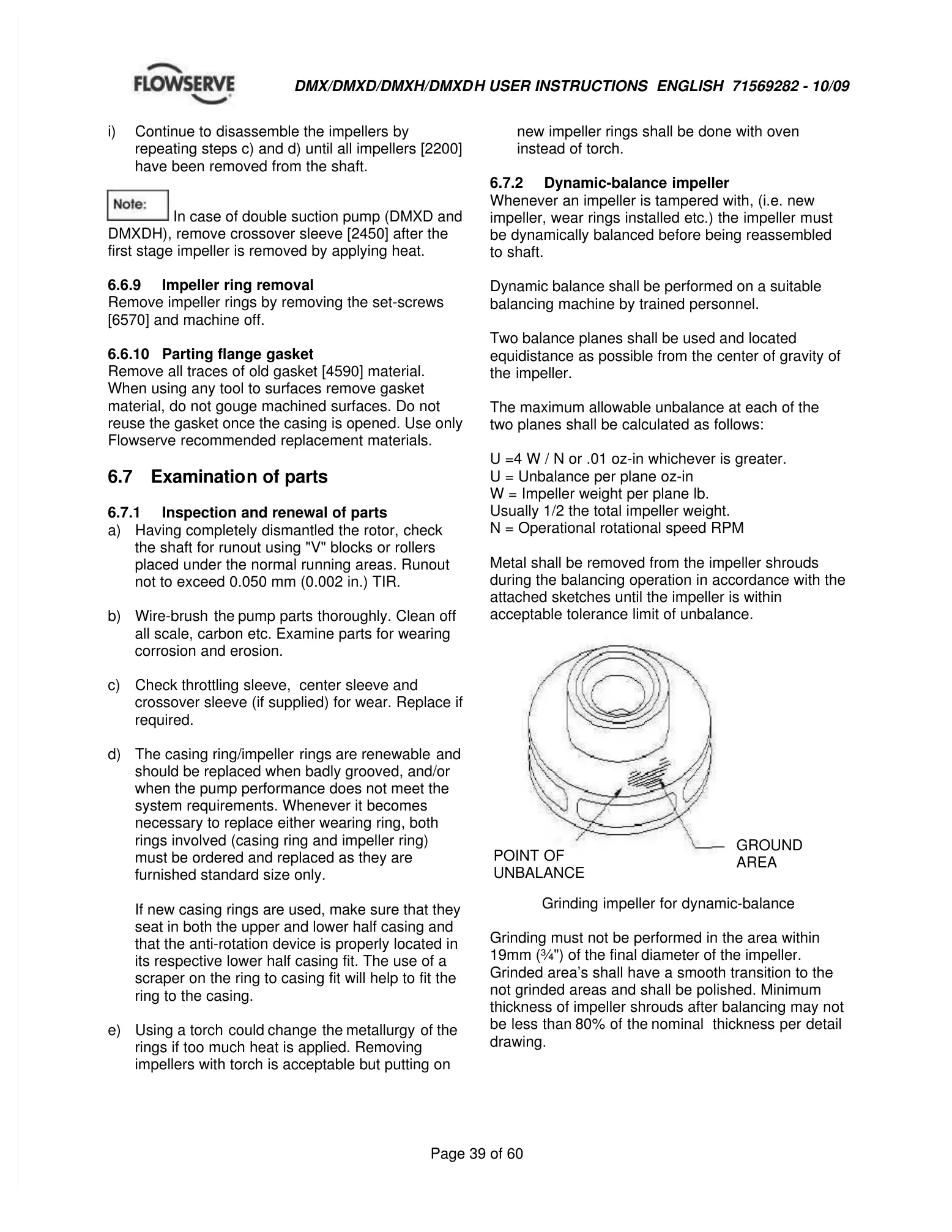

Grinding impeller for dynamic-balance
Grinding must not be performed in the area within
19mm (¾") of the final diameter of the impeller.
Grinded area’s shall have a smooth transition to the
not grinded areas and shall be polished. Minimum
thickness of impeller shrouds after balancing may not
be less than
80% of the
nominal
thickness per detail
drawing.
POINT OF
UNBALANCE
GROUND
AREA
