8 Repair
Page 54 of 79

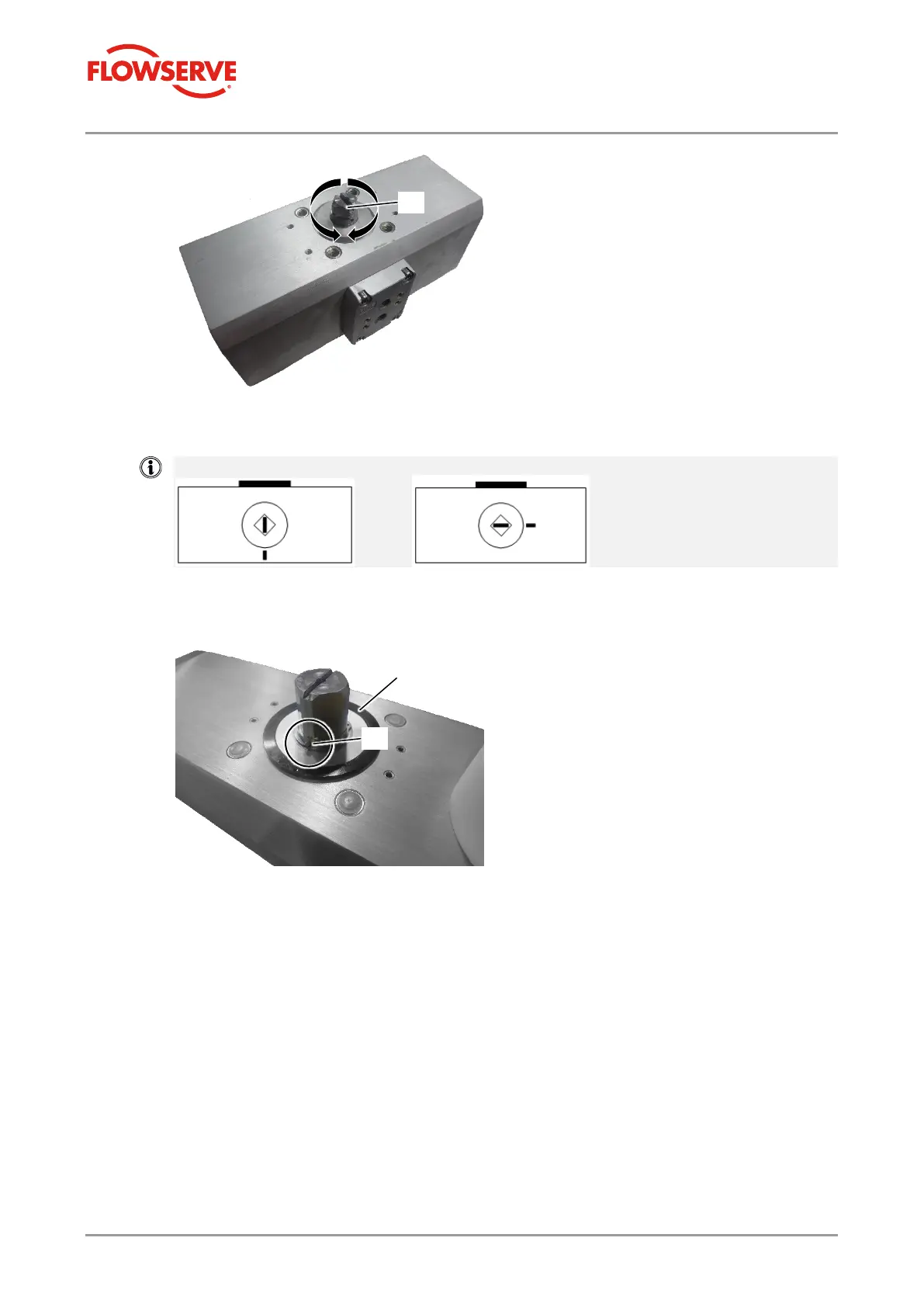

4. Mark the position of the drive shaft groove on the body [10].
Standard design Alternative design (inverse direction of rotation)
5. Unscrew the locking pin (threaded pin) [5] from the drive shaft.
6. Remove the black support ring [17].
[5]
[4]
[17]
